9901T CCD Camera Features:
* Alloyed shell, heavy duty weatherproof for outdoor usage
* 12 Infra-red LEDs ultra night-time vision (effect range: 20 feet)
* Up to 300feet transmission range in open space
* Compatible with 9901A ultra 2m-antenna to super charge 1.5X the transmission range
* 2 channels available to avoid possible interference
* 512 TV lines sharp picture display
Technical Specification:
* Alloyed shell, heavy duty weatherproof for outdoor usage
* 12 Infra-red LEDs ultra night-time vision (effect range: 20 feet)
* Up to 300feet transmission range in open space
* Compatible with 9901A ultra 2m-antenna to super charge 1.5X the transmission range
* 2 channels available to avoid possible interference
* 512 TV lines sharp picture display
Technical Specification:
This heavy-duty metal framed CCD wireless water-proof camera comes with a 12 high-powered IR LEDs for 20
feet night vision in total darkness. Camera uses SONY 1/4" high-resolution CCD, with removable external
antenna for longer range signal transmission, estimated unobstructed range of 300 feet. By adding the optional
super-charged extended antenna ($25), this set can be used in almost any situation. Aluminum alloy metal case

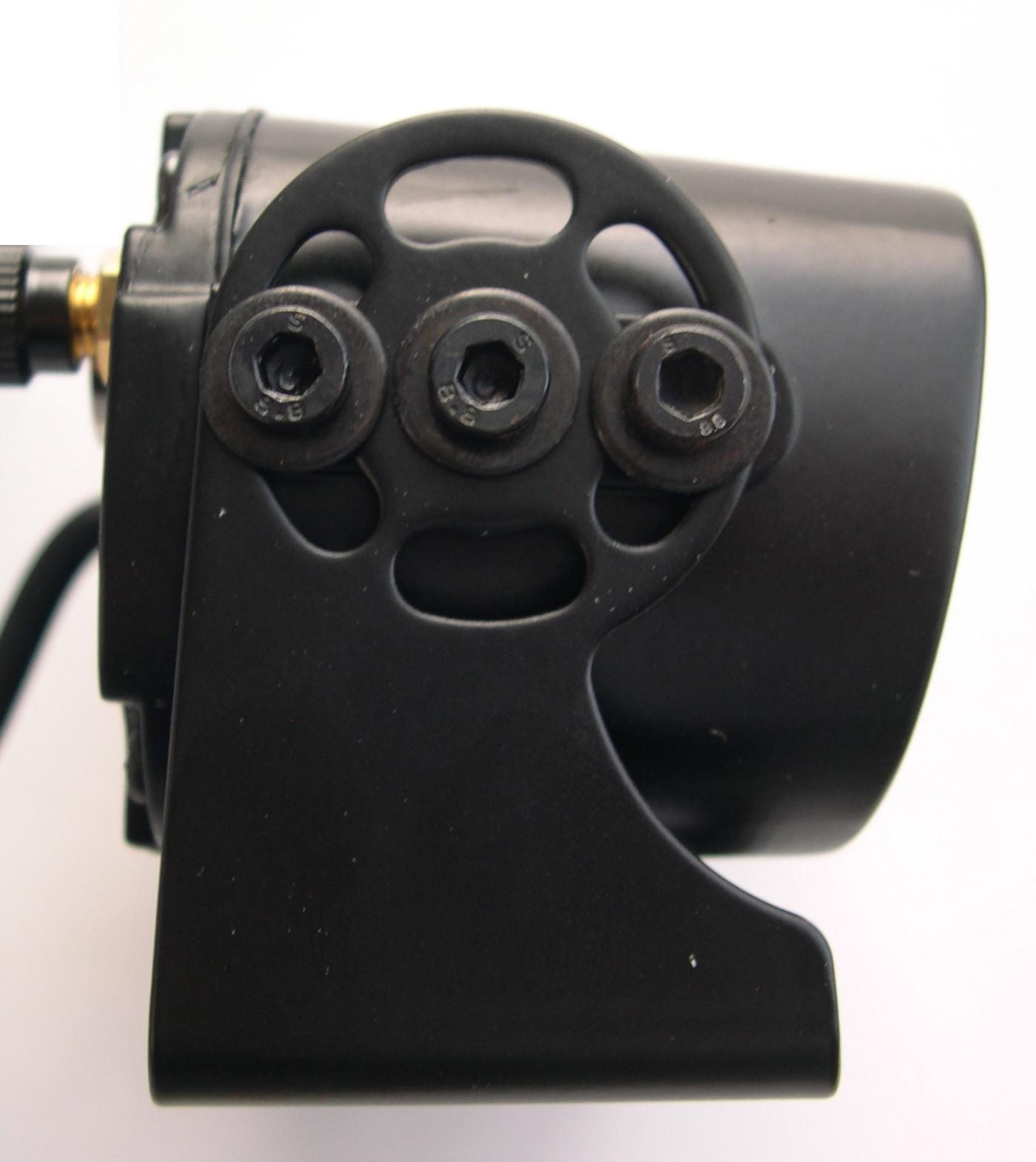

with 6.8G-force rated shock resistant, IP66 waterproof of resistance grade, and heavy-duty adjustable steel
mounting bracket. 9901T provides 20-35% better image clarity then 8907T and 8909T, and 20%-30% better
signal range then 8907T when use in the same situation.
feet night vision in total darkness. Camera uses SONY 1/4" high-resolution CCD, with removable external
antenna for longer range signal transmission, estimated unobstructed range of 300 feet. By adding the optional
super-charged extended antenna ($25), this set can be used in almost any situation. Aluminum alloy metal case
with 6.8G-force rated shock resistant, IP66 waterproof of resistance grade, and heavy-duty adjustable steel
mounting bracket. 9901T provides 20-35% better image clarity then 8907T and 8909T, and 20%-30% better
signal range then 8907T when use in the same situation.
Imaging Sensor CCD
CCD Total Pixels 512 x 492 (NTSC)
Minimum Illumination 0 Lux
Transmission Frequency ISM 2,400—2,483 Mhz
Transmission Power 10mW/CE; 2mW/FCC
Modulation Type FM
IR Night Range 15 ft
Bandwidth 18 MHz
Power Supply + 12V DC
Consumption Current (Max.) 250mA
Horizontal View Angle 80 Degrees
Unobstructed Effective Range 100m [Min.]
Dimensions (W x D x H)(mm) 96x52x61(excluding bracket)
Weight [About) 380g
Operating Temperature -20°C/+60°C or+4°F/140°F
Operating Humidity 85% RH
CCD Total Pixels 512 x 492 (NTSC)
Minimum Illumination 0 Lux
Transmission Frequency ISM 2,400—2,483 Mhz
Transmission Power 10mW/CE; 2mW/FCC
Modulation Type FM
IR Night Range 15 ft
Bandwidth 18 MHz
Power Supply + 12V DC
Consumption Current (Max.) 250mA
Horizontal View Angle 80 Degrees
Unobstructed Effective Range 100m [Min.]
Dimensions (W x D x H)(mm) 96x52x61(excluding bracket)
Weight [About) 380g
Operating Temperature -20°C/+60°C or+4°F/140°F
Operating Humidity 85% RH
