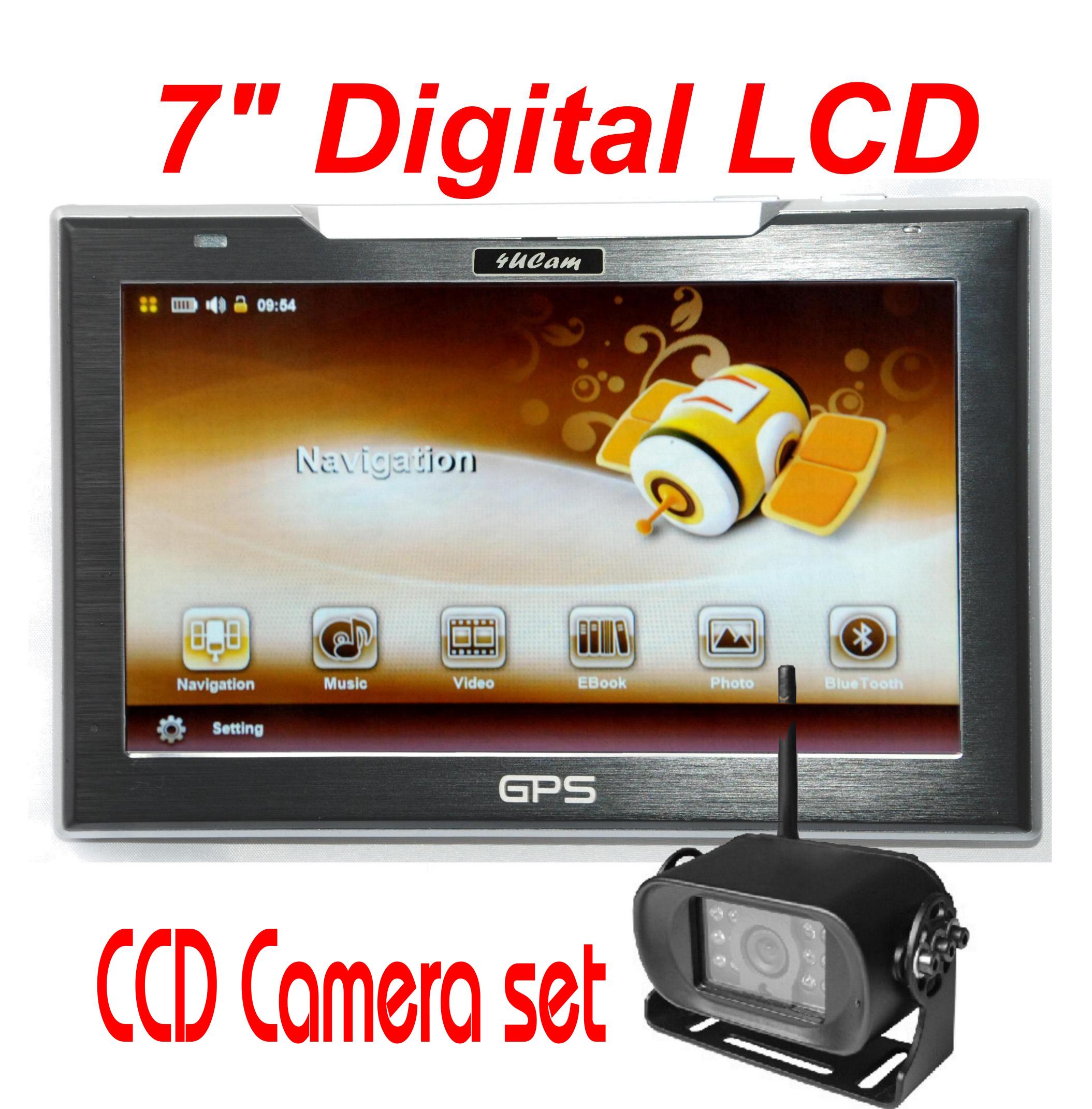

7" LCD HD Digital Touch Screen
GPS + Wireless SONY CCD Camera
w/Bluetooth System
Item#: GPS7D_9901
Listed Price: $399.99
Now $229.95
specification
PRODUCT DESCRIPTION:
GPS and Backup Camera System with 7” Digital 800*480 High Definition touch screen GPS navigation system and
wireless Sony CCD camera system in one unit, plus bluetooth, FM transmit, AV input, video, music, photo and ebook
reader.

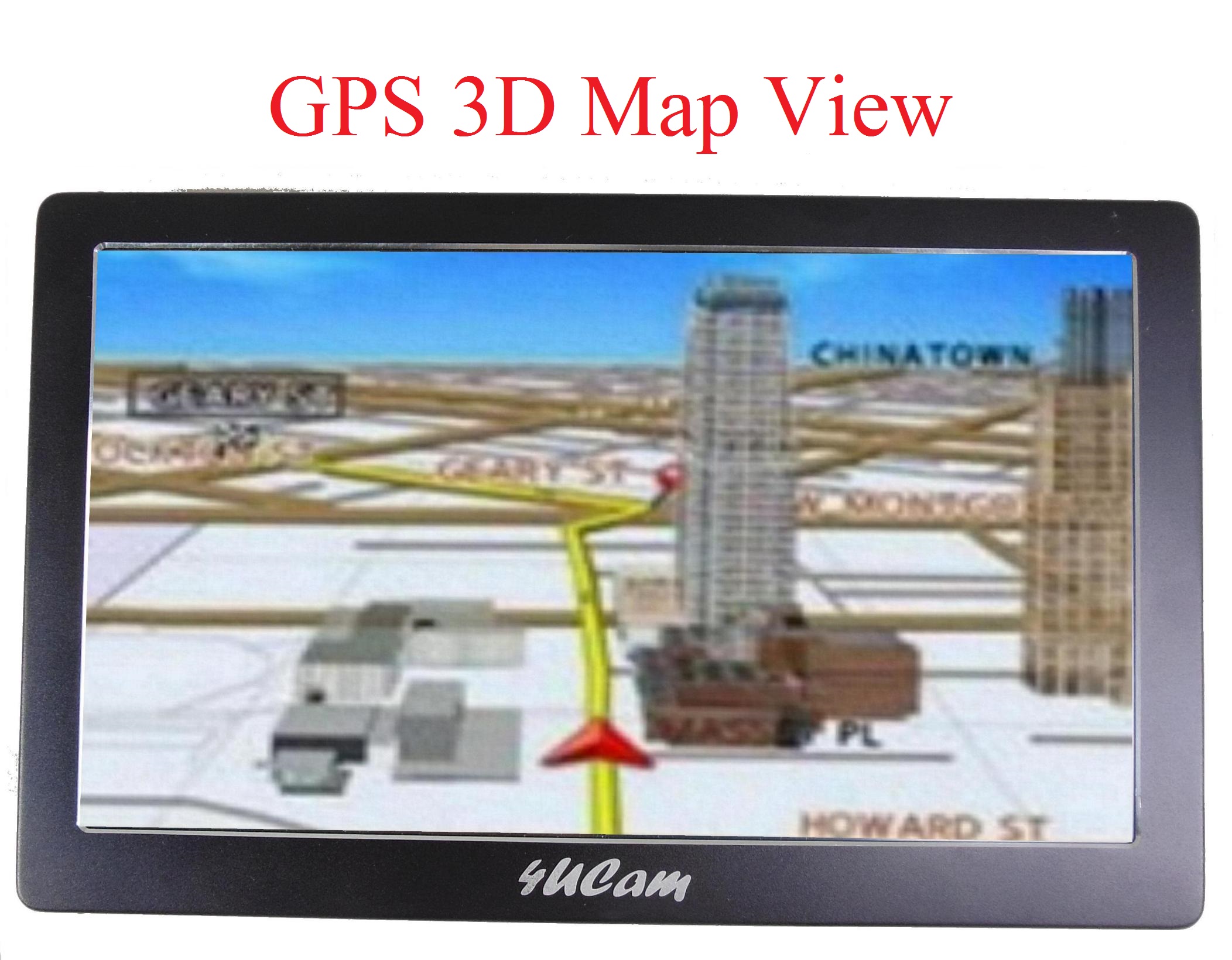

GPS mode: The unit delivers reliable navigation with pre-loaded 2D or 3D maps for all 50 states and Canada, points of
interest, Text-to-Speech voice guide, and automatically adjusts for day or night viewing. The touch-screen permits easy
off the road or fumble with a map. A USB cable connects the unit to your PC for updating music and pictures, or charging
pronounces all street names over the built-in speaker to guide you to your destination without the need to take your eyes
off the road or fumble with a map. A USB cable connects the unit to your PC for updating music and pictures, or charging
the battery. SD card slot, including a 2 GB SD card, allows the navigator to double as a portable MP3 player or picture
viewer. The unit can be powered by an adapter that plugs into a car cigarette lighter, or for portability, via its built-in
rechargeable Li-Ion battery that provides about 1 hours of operation on an 8-hour charge. The display's wireless cradle
phone.
mounts without tools using a suction fastener. Bluetooth function will make you totally hand-free when you answer the
phone.

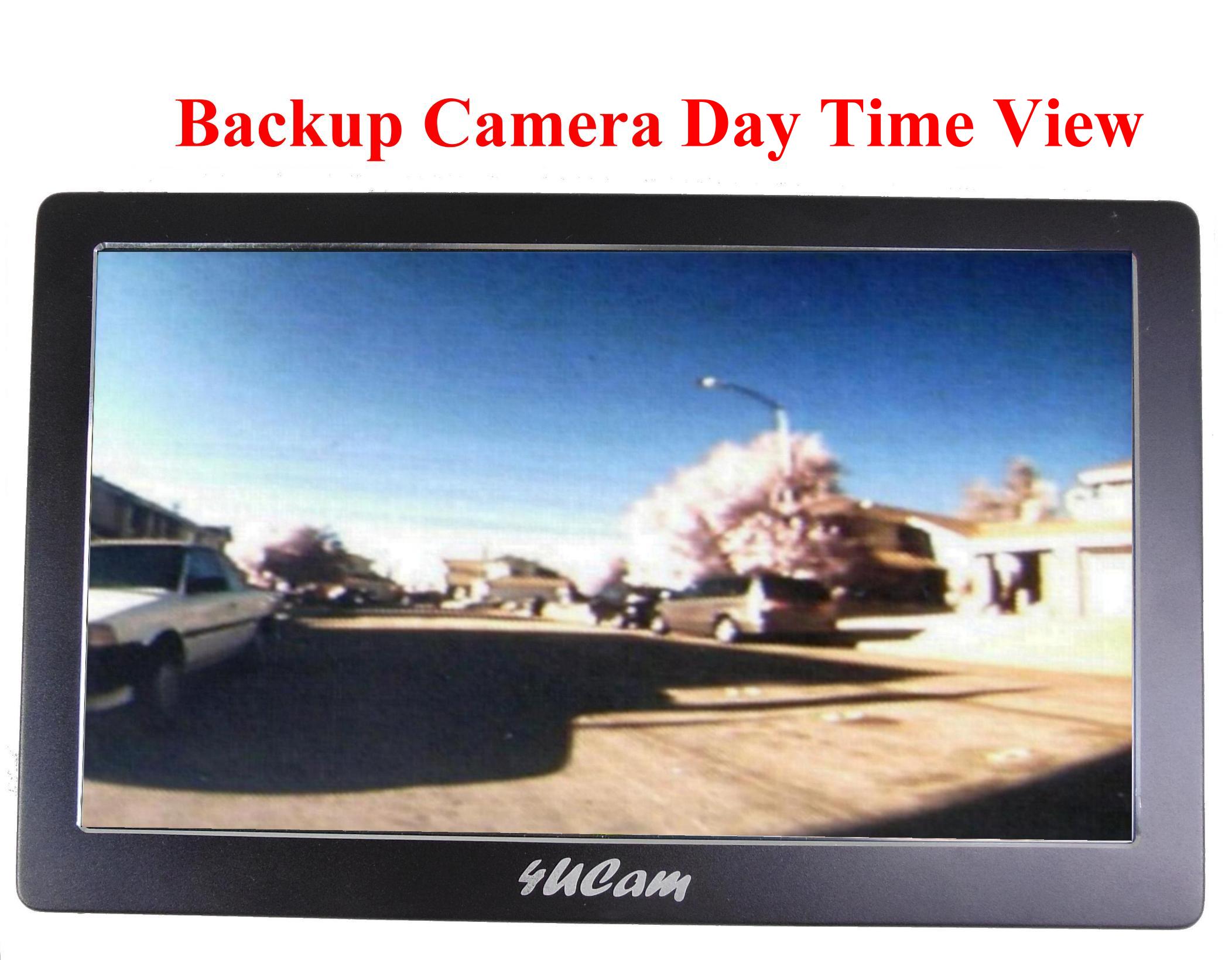

Backup Camera Mode: The Sony CCD camera are powered by the cables that power your vehicle's reverse lights.
When you put your vehicle into reverse gear, your reversing lights turn on and power is sent to the camera and the
transmitter, sending out a video signal. The GPS unit then auto-switches over to the camera view.

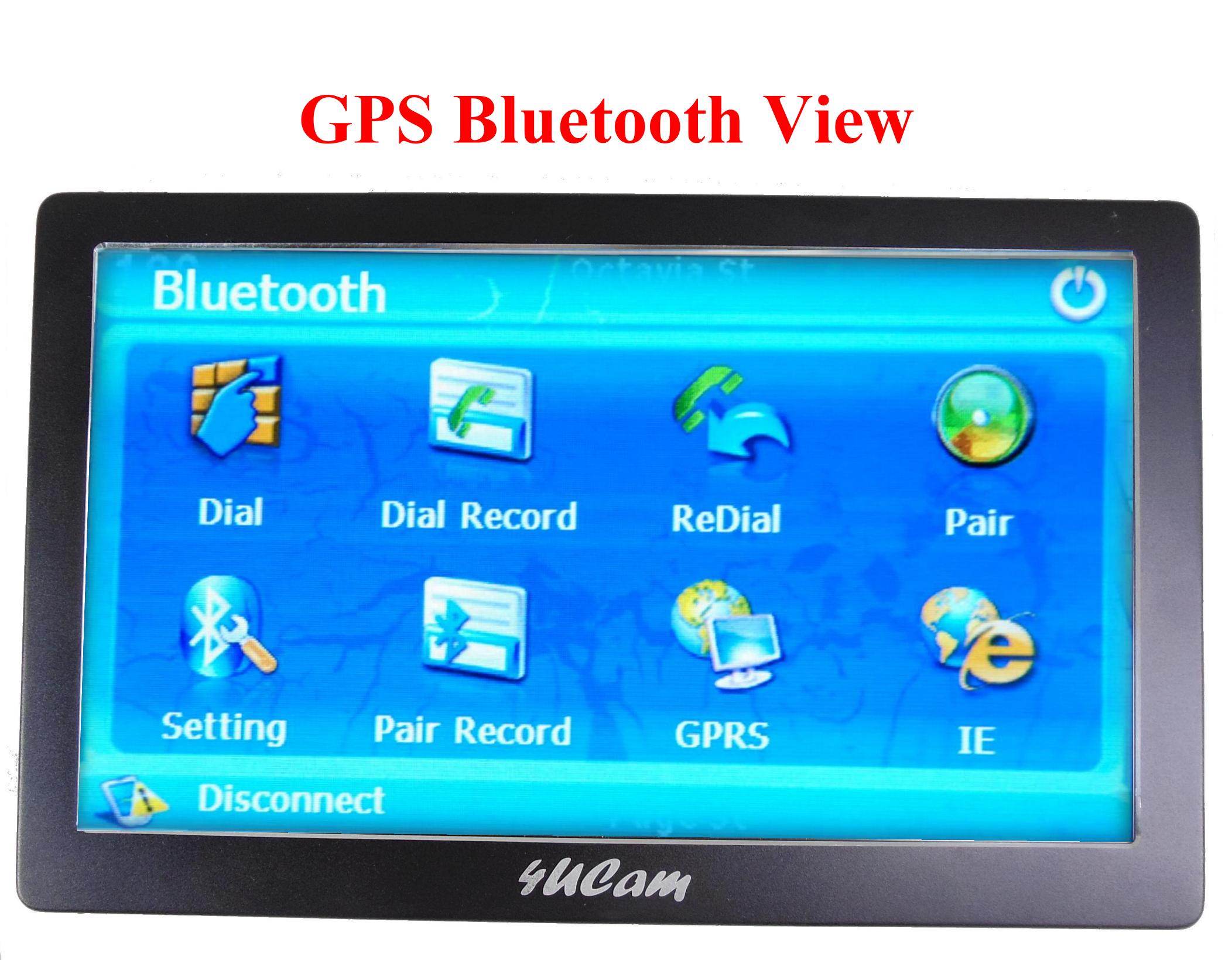

Bluetooth Mode: Unit will make you totally hand-free when you answer the phone, whenever a call is
coming, no matter you're navigating, listening music or backing up, the unit will switch to Bluetooth mode automatically,
after you hand up, the unit will switch back to the previous mode.

Multi language support: English, French, Spanish and more. Additional European and other Maps available.
features

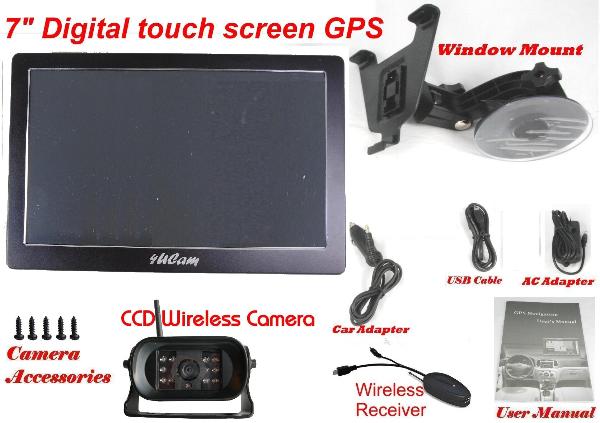

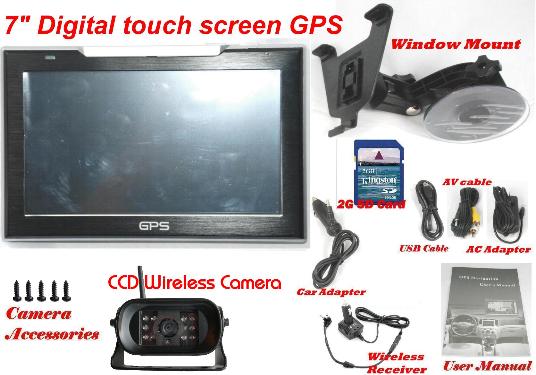

Package contains:
  • 7 GPS Digital LCD Touch Screen
  • 9901T Wireless CCD Camera kids
  • Wireless Receiver
  • GPS software on 4GB internal momery
  • Secure Window Mount Holder
  • USB cable
  • AC Adapter
  • Cigarette lighter power adapter
  • User Manual
contains
Navigator GPS unit
Camera/Transmitter (9901T)
Screen          7" QVGA TFT Touch Screen
Resolution    800 × 480
Dimensions  7.2” x 4.75” x 0.7”
Screen size   6" x 3.5"
Weight          1 lb
CPU              SAMSUNG S3C2443X-40 530MHz
GPS chip      SiRF Star III
System configuration        Win CE. Net 5.0 Core
Format supported    MP4, DIVX, XVID, WMV, ASF, AVI;
WMA9, MP3, WAV, JPG, GIF, BMP, TXT
Antenna        Embedded
Memory        128M
NAND FLASH        128M
Capacity of SD card        32M ~ 8G
Capacity of lithium battery        650 mAh
Operating time of lithium battery   1 hours/200hr sleep
Car-borne power supply  +12 car/5V USB interface
Channel     20
Hot Start Time  <2s
Video signal output impedance    1.1±0.2Vpp@75 ohm
Video output polarity        Negative
Modulation type        FM
Maximum power consumption during operation  350 mA
Operating temperature        -10ºC ~ +60ºC /+14ºF ~
+132ºF
Operating humidity (maximum)        <85% RH
Imaging Sensor        Sony CCD
CCD Total Pixels        512 x 492 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM

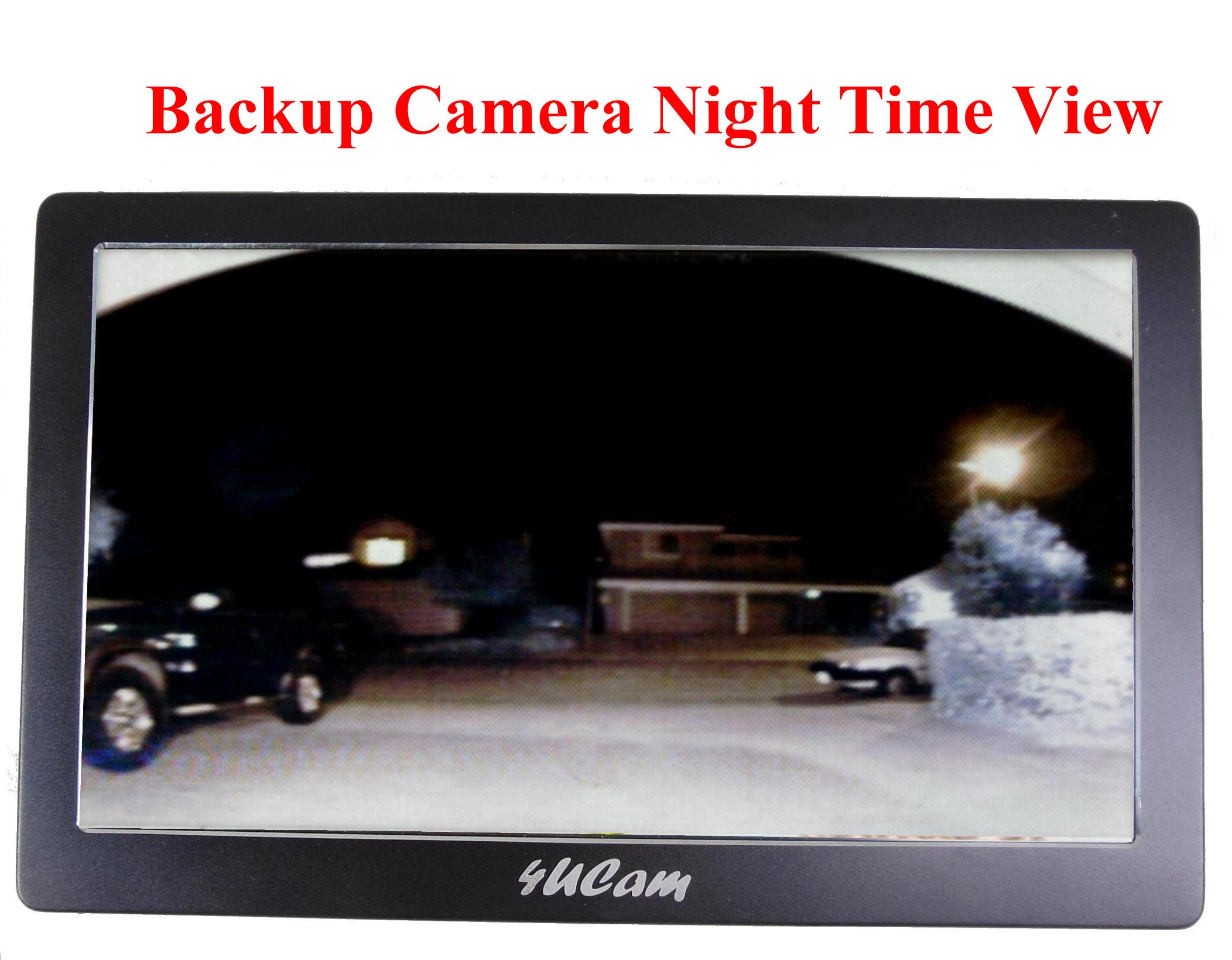

IR Night Range           15 ft
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        100m [Min.]
Dimensions (W x D x H)(mm) 96x52x61(excluding
bracket)
Weight [About)        380g
Operating Temperature        -20°C/+60°C or+4°F/140°F
Operating Humidity        85% RH

Wireless Receiver
Dimensions  65×35×15mm
Frequency Stability          100Khz
Frequency        ISM 2400 MHz ~ 2483 MHz
Power Supply           +12V DC
Video Output Level   1.1±0.2Vpp@75 ohm
Receiving sensitivity        -85dBm
Operating temperature        -10ºC ~ +50ºC /+14ºF ~
+122ºF
Operating humidity (maximum)        <85% RH
All rights reserved.
accessories
Accessories - additional camera and more:
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Key Features:
  • Long signal range 2.4Mhz wireless Sony CCD backup
    camera, waterproof, day&night backup camera
  • 110 degree horizontal view angle
  • 530 MHz SamSung S3C2443X-40 CPU
  • 800x480 Pixels Digital HD displayer with touched screen
    and key-press operate.
  • 128MB SDRAM & 128M Nand Flash memory
  • Windows CE5.0 operation system
  • Integrated with newest SiRF Star III
  • GPS module, which can receive up to 20 satellite channels
  • Double-track headphone connector,
  • 2Whi-Fi speaker built in
  • Rechargeable lithium battery stand up to 3hrs(550 hours
    in sleeping status)
  • Navigation software and multimedia
  • data store in 2G SD/MMC memory card

Other features:
Music player support: mp3,wav,mid
Movie player support: asf, avi,mp4,wmv
Picture browser support: BMP,JPG,PNG,FIG
eBook reader support: txt

FM Transmitter:
Use your car FM radio to receive the sound from the GPS
device (including guide prompting voice, calls in bluetooth
mode,Mp3/Mp4 music), adjust the volume as you like, enable
driver get every prompting details even in noisy environment.

Audio/Video-Input Connector:
This function make the device as a LCD monitor, can connect
to DVD Player or video game

Software
USA & Canada maps Q4 2013 (optional European maps,
Australia & New Zealand maps)
Text-to-Speech turn-by-ture voice guide, multiple language(US
English/UK English/French/German/Spanish...)
All-in-one cockpit screen show all the traffic information,
including your speed, name of current/next street, distance/time
left to the destination, estimated arriving time, distance left to
the next turn, lane information, road information, POI
information...
SMART ZOOM will automatically adjust zoom in or out and
viewing angle to give you the optimal view in any situation.
Quick setting icon for 2D/3D maps switch, detour, cursor,
day/night mode switch, volume adjustment, 3D building on/off,
vehicle select, track logs record.
Automatic and instant route  re-calculation when a wrong turn is
made Multi-destination of a route available
POIs(Point of Interest) with phone number, including gas
stations, parking, restaurants, ATMs, hospital and more.
6 vehicle modes(car, taxi, bus, emergency, pedestrian, bicycle)
Speed alarm, Day & night mode display
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html

See our customer's installation sample: www.4ucam.com/custom_install.html

Specifications:
GPS7_receiver
Item#:GPS7_receiver
Listed $129.99
Now $69.95
ant
GPS
Navigation
Long range
wireless cam
Hand-free
Bluetooth
Transmit FM
to car radio
Video player
Music player
Accept AV
input
Browser
eBook
reader
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
GPS7_nut One unit (not a pair)
Item#:GPS7_nut
Now $4.99
GPS7_Y_wire
Item#:GPS7_Y_wire
Now $4.99
GPS7_window mount
Item#:GPS7_mount
Now $34.99
GPS7 Car Power Plug
Item#:GPS7_cig_adapter
Now $14.99
See GPS+backup cam demo (4.3" model software might be different )
7" LCD HD Digital Touch
Screen GPS + DUAL
Wireless CCD Backup
Camera w/Bluetooth System
Item#: GPS7D_9901DUAL
Listed Price: $699.99
Now $349.95
If you want TWO CCD cameras with 7" GPS set, you can get the GPS7D_9901DAUL set below
-please note, you can only power up one camera at any given time

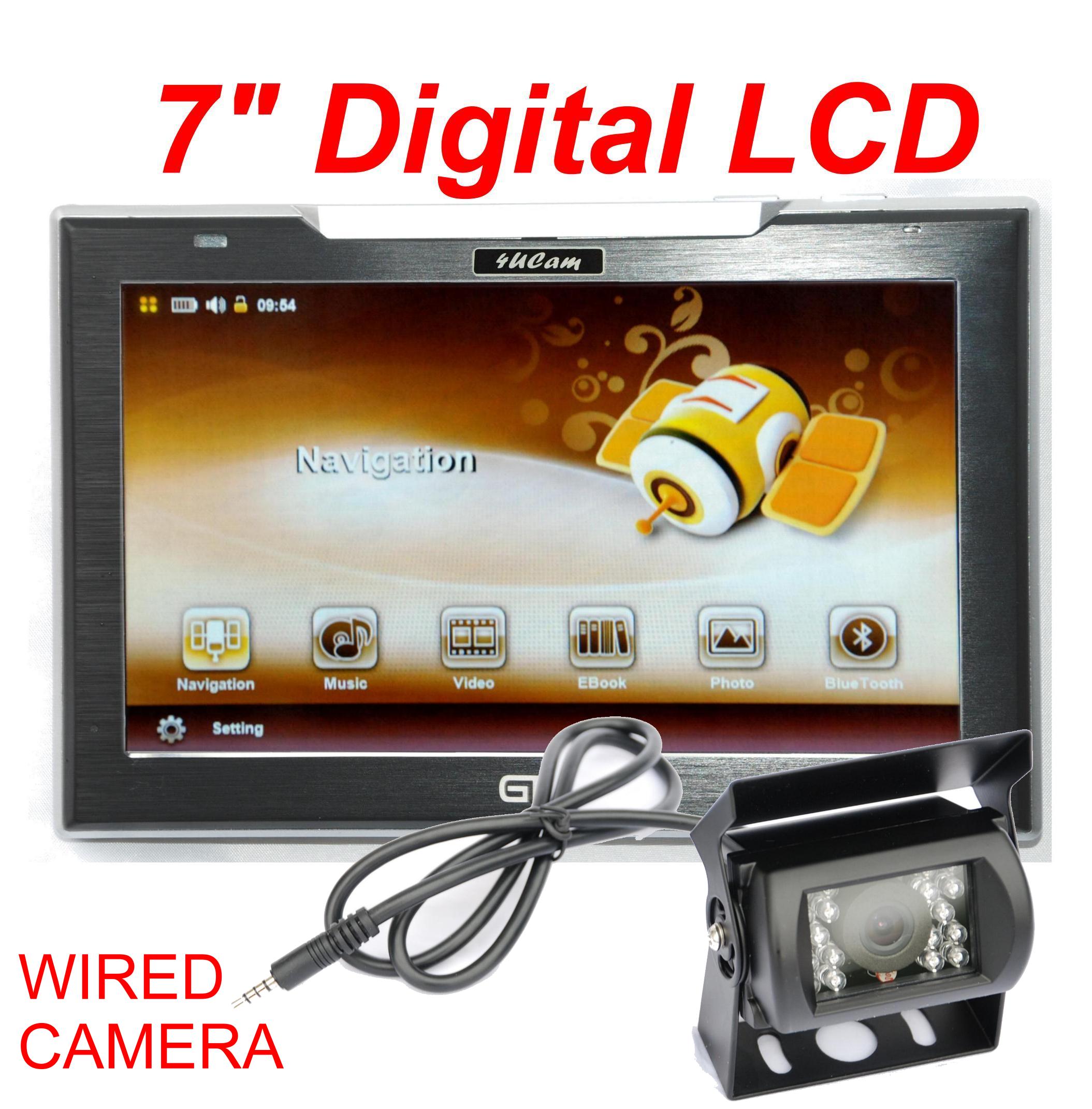

7" LCD HD Digital Touch Screen
GPS + WIRED Camera w/Bluetooth
Item#: GPS7D_9901W
Listed Price: $499.99
Now $229.95
If you want WIRED cameras with 7" GPS set, you can get the GPS7D_9901W set
Extended 2m Antenna:
-compatible: 9901T/7"LCD(AV model)
/7610Z 3.6"LCD(AZ model)/823T
Item#:9901A
Now $24.95
Anti Glare Sun Shade Visor
(click to see more detail)
Item#: 7inch_visor
Now: $14.99
Antenna Extension cord:
-for 9901T camera if camera is over 25 feet away from the monitor.
item#: antenna_cord_10ft  $14.95  antenna_cord_20ft $24.95     antenna_cord_40ft $44.95
