USB wireless tiny battery camera

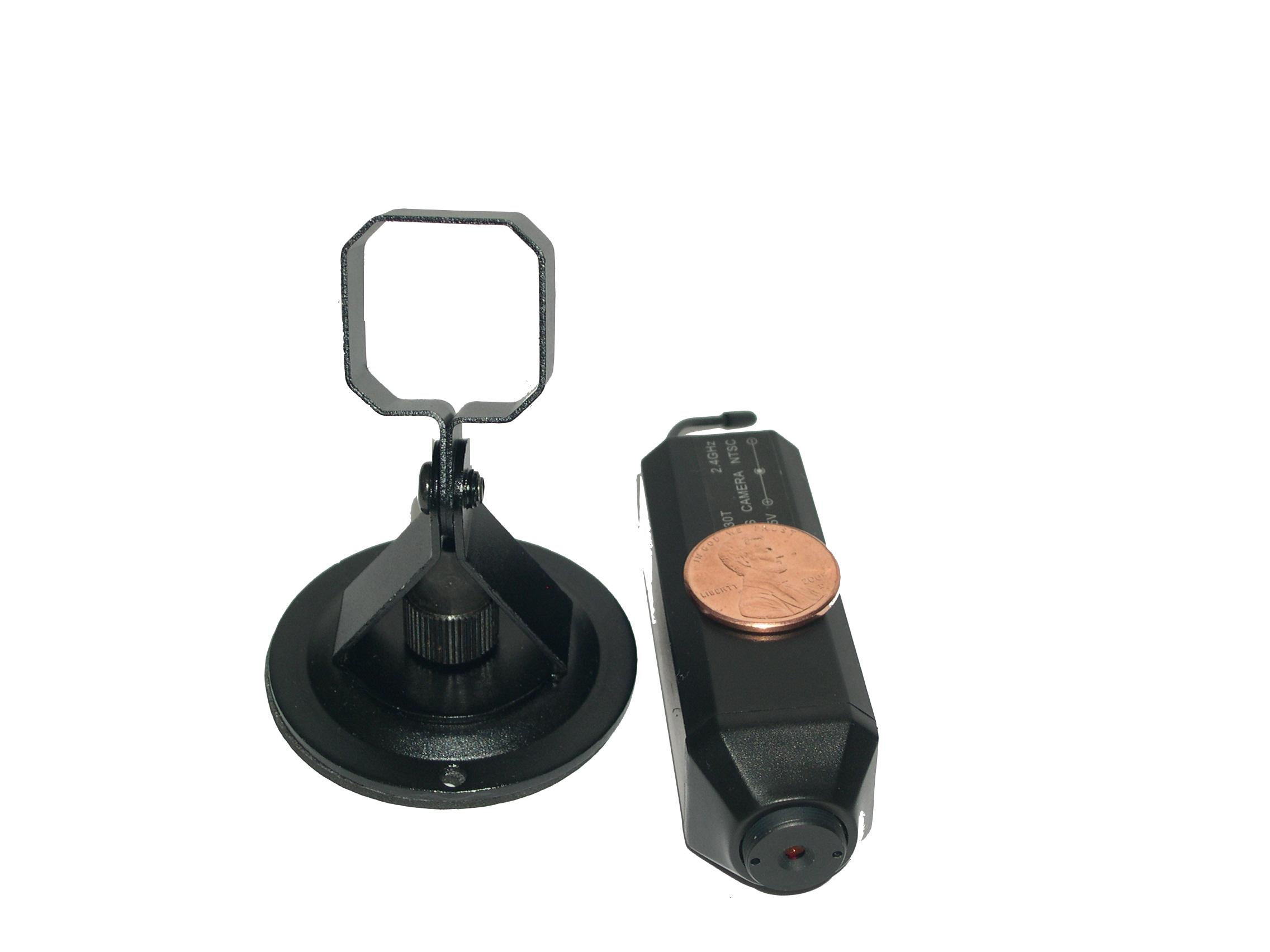

This tiny (2 5/8" x 7/8" x 7/8" excluding bracket) wireless audio & video color transmitter/camera with build-in
rechargeable battery, is designed for SUPER PORTABLE and ON THE GO. Tiny wireless camera is removable
easily from the base bracket. Fully charged, this camera perform up to 4 hours without external power supply. It
includes a stand that can be mounted on the wall or ceiling. With build-in rechargeable battery, wireless, and tiny size
camera, you can event install it on a radio remote airplane or car, see and record the Audio/video on your
computer screen. This wireless camera delivers images and audio over up to 330 feet. See few samples of how
people have fun with the tiny wireless camera.

The UBS receiver bundles with InterVideo security software which enable you to display, record real-time high speed
MPEG4 into your hard drive, play back, zoom and pan, setup alarm, auto scan and display up to 4 cameras. The
video capture function can capture both still image and full motion video.

The USB Wireless camera is not only ideal for home security, room and child monitoring. It also can be applied to
video capture, image capture, video conferencing and wireless web cam.

Observe and record activities in your home or office. Monitor your child or children or check up on the baby-sitter.
See who is at the door or monitor specific areas such as the swimming pool, backyard, etc., conveniently from PC.

Please see how creative people have fun when they have the build-in battery wireless camera

Diagrammatic:

System Requirements
Microsoft Windows 2000/2003 / Windows 2000/2003 server /Windows XP SP2/Windows Vista
Memory: upwards of 128MB
VGA graphic card upwards of 32MB
Sound card
CD-ROM drive
USB 2.0 port
Caution: the product is only suitable for PC with USB 2.0 port. It won’t work when
connecting with PC with USB 1.1 or previous version. If your want to connect it
with PC with USB 1.1, you should install a PCI→USB 2.0 commutator for
conversion.

Specifications:

FEATURES:

USB 2.0 output, display, record real-time high speed MPEG4 into your hard drive
Tiny size (2 5/8" x 7/8" x 7/8" excluding bracket) camera with built-in rechargeable Li-battery inside for discreet
observation & portability.
Built-in microphone in camera for audio monitoring
4 channels 2.4GHz wireless in both camera & receiver to avoid possible interference
Channel scan/display support up to 4 cameras, with adjustable interval time. (Note: additional cameras sold
separately, see accessories)
Bundle security software enable zoom and pan, setup alarm, display, record, play back.
Up to 330 ft. transmission distance in open space

Camera/Transmitter

USB Receiver

Imaging Sensor : CMOS
CMOS Total Pixels : 628x582(PAL) ; 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 60 Degree
Minimum Illumination: 5 Lux
Transmission Frequency: ISM 2,400~2,483 MHz
Transmission Power : 10mW/CE; 2mW/FCC
Modulation Type: FM
Bandwidth : 18 MHz
Power Supply: +8 VDC
Consumption Current : 90mA
Unobstructed Effective Range : 100m (Min)
Dimensions(WxDxH): 28 x24 x22 mm
Weight : 30 g
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~ +122
(Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185 (Degree F)
Operating Humidity: 85% RH

Power Supply: Provided by USB Port
Consumption Current (Max.): 180mA
Receiving Frequency: ISM 2,400MHz~2,483MHz
Input VSWR: 2:1
Demodulation Type: FM
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100 ppm
Local Leakage at RF Input Terminal: <=-55 dBm
Receiving Sensitivity: <= -85 dBm
Video Output Signal Impedance: 75 ohm
Video Output Signal Level: 1.0 V +/- 0.15 Vpp
Video Output Signal Polarity: Negative
Video S/N Ratio: 38dB
Audio Output Signal Impedance: 600 ohm
Audio Output Signal Level: 1.25 V +/- 0.25 Vpp / 1 kHz
Audio Output Frequency Range: 250 Hz ~ 10 kHz
Left Subcarrier Frequency: 6.5 MHz
Unobstructed Effective Range: 100 m (Min.)
Dimensions(WxLxH): 78 x 68 x 16 mm (Excluding Antenna)
Weight : 200 g
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~ +122
(Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185 (Degree F)
Operating Humidity: 85% RH
