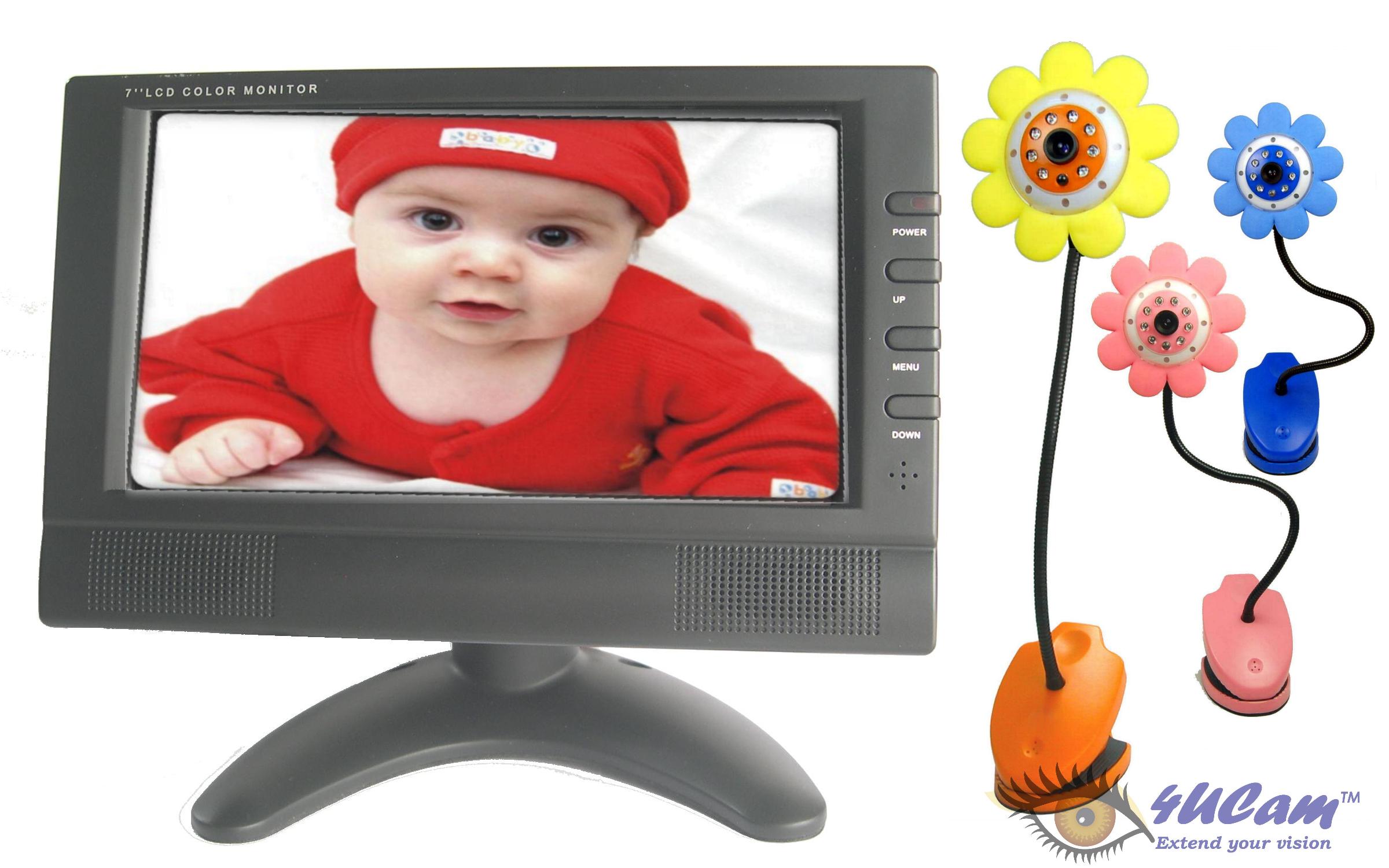

7" LCD Dancing Daisy Baby Video Monitor

This new arrival of the 7" LCD Widescreen, combined with wireless
dancing daisy camera, is the largest screen of baby monitors on the market
today.

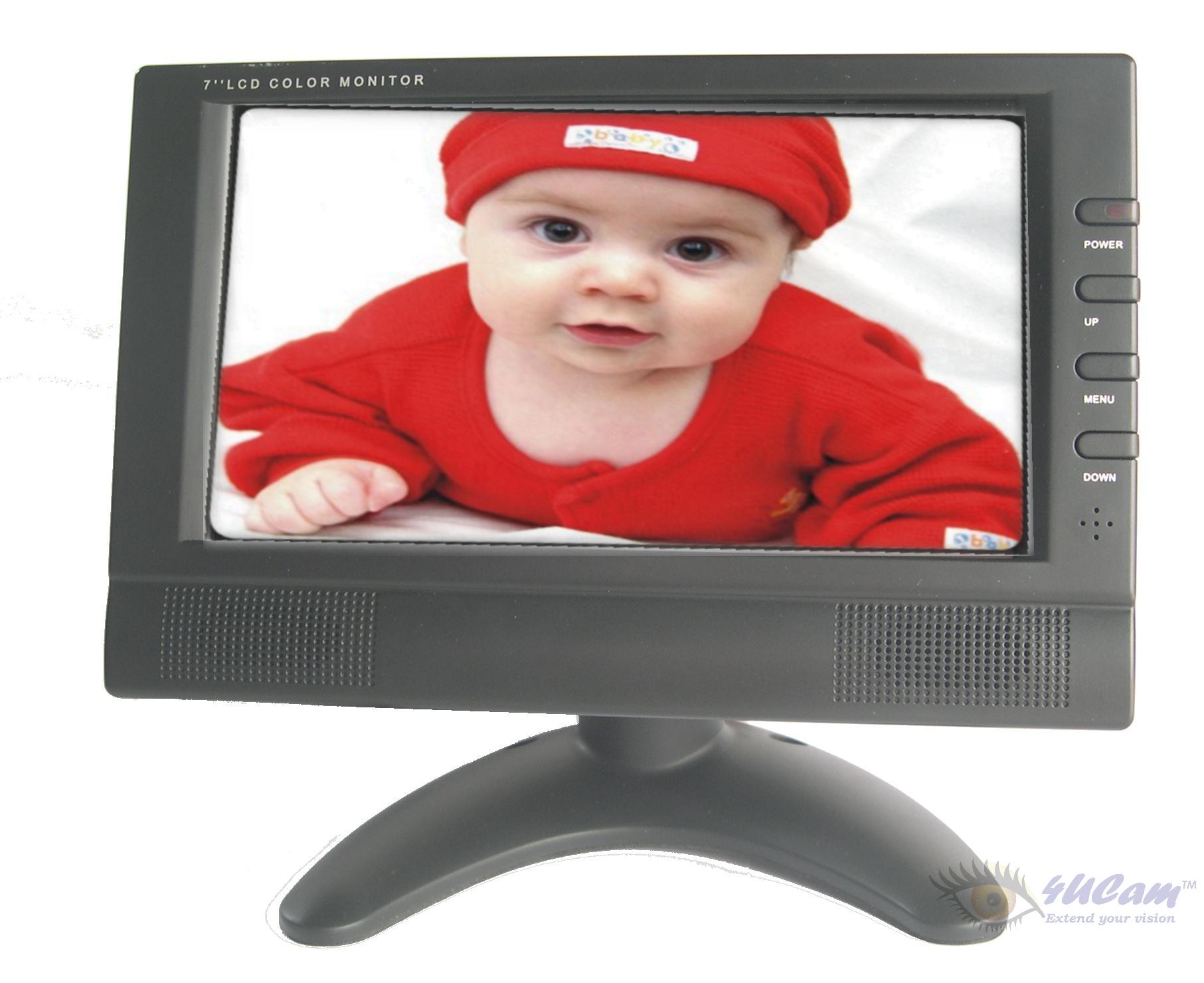

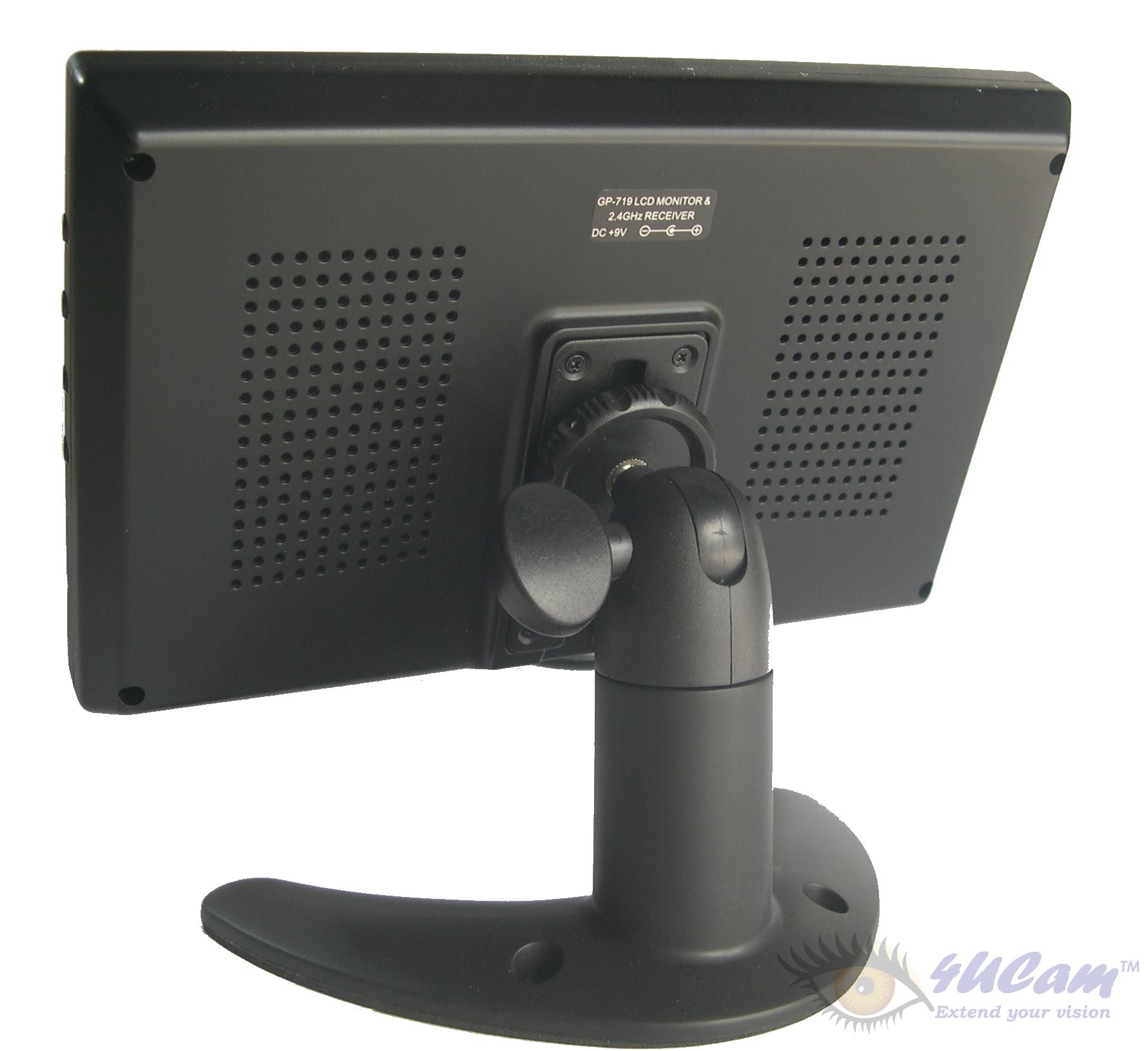

The 1" thin LCD sits on the fully adjustable base allowing you to aim the
screen in almost any direction. The base is also wall mountable.

On Screen Display menu allows you to navigate and change settings from
a distance, using the remote control. Monitor, fully compatible with any of
our wireless cameras, can view up to 4 separate cameras, with a manual
or auto looping channel function. Additional cameras are available for
purchase separately.

Full RCA A/V inputs allows you to plug in a DVD player, or video game
console. The built-in dual speakers output a stereo sound. Please note
there is not an A/V output from the monitor, only an input. The monitor is
powered by an A/C adapter.

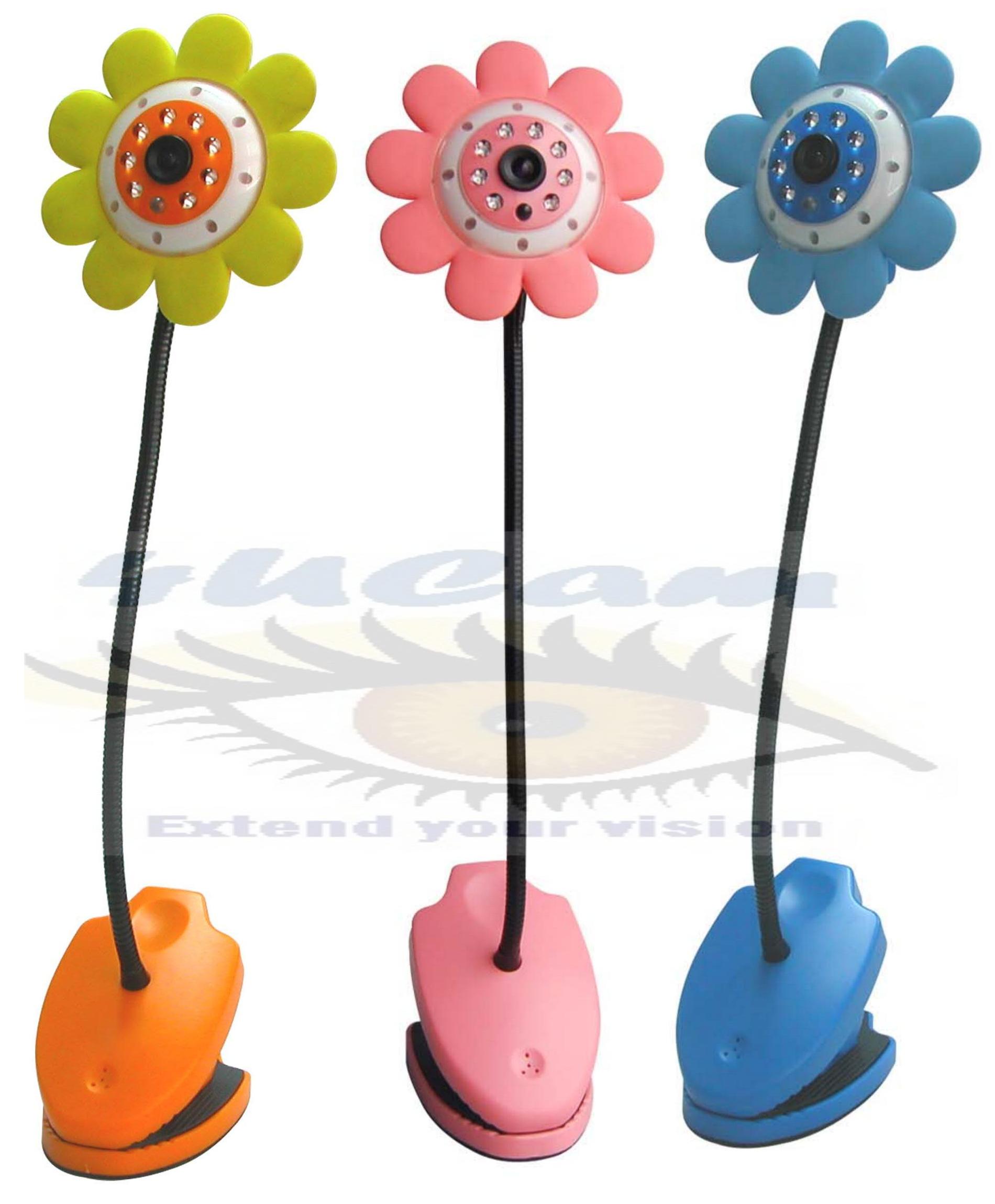

The Dancing Daisy wireless camera's eye pleasing
flower look, is a pleasant addition to your baby's room.

The unique base of the camera allows it to stand alone
on a flat surface or be clipped onto the edge of a door.

The multidirectional stem allows amazing flexibility for the
camera, as well as keeping a rock solid picture.

The Dancing Daisy comes with a soft night light that can
be switched on and off by touching the flower branch.

8 infrared illuminators see in total darkness for up to 16
ft.! (see sample below)

FEATURES:

Easy Setup! Install and use in minutes
Large 7" color LCD-TFT with 480 X 234 resolution receiver provides crisp images
ONE(1) Little Daisy Night Vision Camera (Effective Range: 16 feet)
Built-in microphone in camera and stereo speakers in receiver for audio monitoring
RCA A/V input on monitor (RCA A/V cable included)
4 channels 2.4GHz wireless in both camera & monitor to avoid possible interference
Channel switch in Monitor support viewing up to 4 cameras. (Note: additional cameras sold
separately, see accessories)
Up to 330 ft. transmission distance in open space

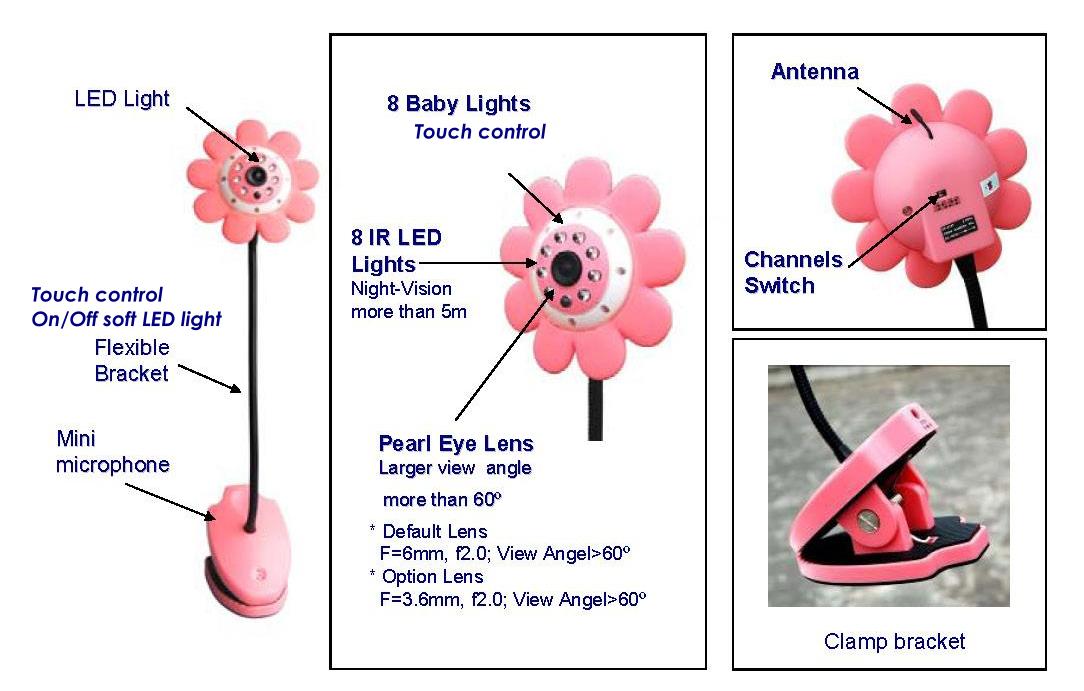

Diagrammatic:

Specifications:
Camera/Transmitter (819T)

Monitor/Receiver

Imaging Sensor : CMOS
CMOS Total Pixels : 628x582(PAL) ; 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 60 Degree
Minimum Illumination: 0 Lux
Transmission Frequency: ISM 2,400~2,483 MHz
Transmission Power : 10mW/CE; 2mW/FCC
Modulation Type: FM
Bandwidth : 18 MHz
Power Supply: +8 VDC
Consumption Current : 80mA(IR OFF) & 140mA(IR
ON)
Unobstructed Effective Range : 100m (Min)
Night Vision Range: 5m
Dimensions(W x L x H): 92 x 89 x 360 mm
Weight : 6 oz
Operating Temperature : -10 ~ +50 (Degree C) / +14
~ +122 (Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~
+185 (Degree F)
Operating Humidity: 85% RH

LCD Size : 7 inch TFT
LCD Resolution: 480 x 234
Receiving Frequency: ISM 2,400MHz~2,483MHz
Intermediate Frequency: 480MHz
Demodulation Type: FM
Receiving Sensitivity: <= -85dBm
Power Supply: 9V to 12V VDC
Consumption Current : 1.5A
Dimensions(WxDxH): 197 x 127 x 25 mm (Excluding
Antenna)
Weight : 15 ozs
Operating Temperature : 0 ~ +50 (Degree C) / +32 ~
+122 (Degree F)
Storage Temperature: -20 ~ +80 (Degree C) / -4 ~
+176 (Degree F)
Operating Humidity: 85% RH
