FEATURES:
- Easy Setup! Install and use in minutes
- Large 2.5" color LCD-TFT with 480 X 234 resolution receiver provides crisp images
- One Rechargeable Li-battery in receiver for portable monitoring
- ONE(1) Little Daisy Night Vision Camera (Effective Range: 16 feet)
- Including one earphone for receiver
- Built-in microphone in camera and speaker in receiver for audio monitoring
- Easily connects to a TV, VCR with A/V output on receiver (video cable included)
- 4 channels 2.4GHz wireless in both camera & monitor to avoid possible interference
- Channel switch in Monitor support viewing up to 4 cameras. (Note: additional cameras
sold separately, see accessories)
- Up to 330 ft. transmission distance in open space
Diagrammatic:
Specifications:
Package contains:
- One (1) Wireless color infrared LEDs camera
- One hand held monitor with 2.5-inch LCD TFT screen
- Two AC power adapters
- One Lithium-ion Battery for receiver
- One video cable
- One Earphone
- User's manual
2.5" LCD Color Monitor
Wireless Little Daisy Camera
Item#: 819EN
Listed $229.99 Now $129.95

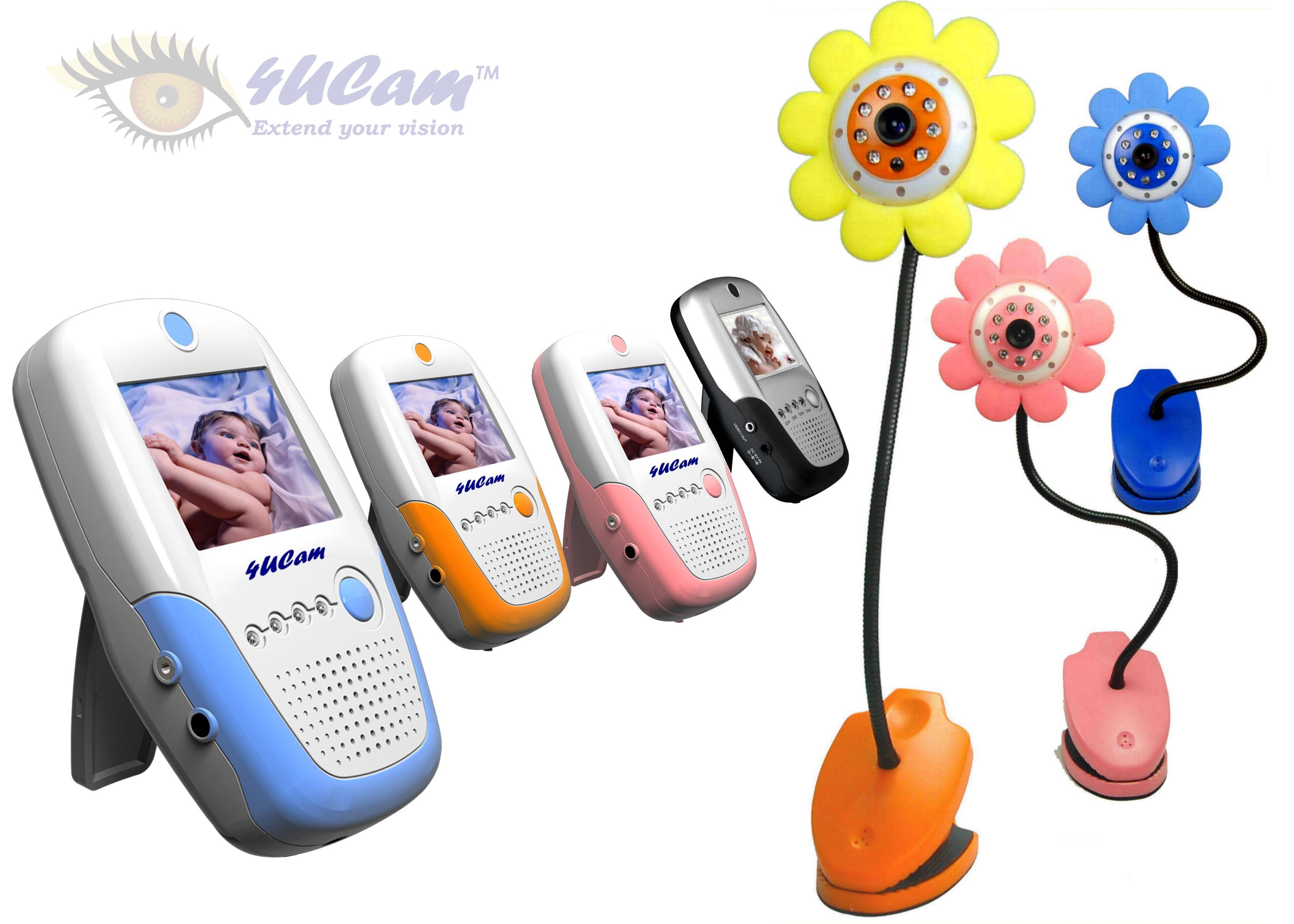

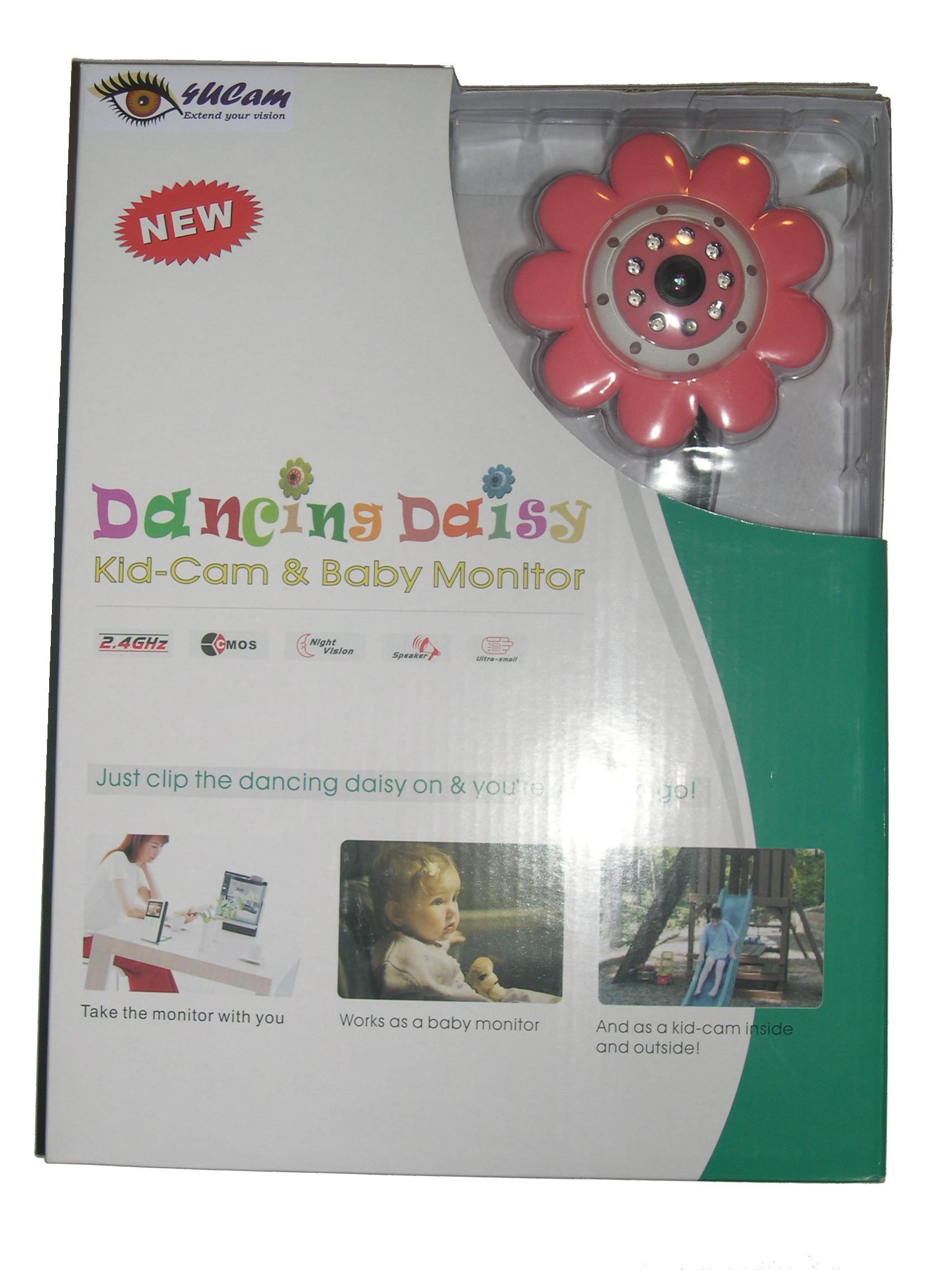

The "Dancing Daisy" wireless camera's eye
pleasing flower look, is a pleasant addition to your
baby's room. The new version of Daisy set comes
with a matching color hand-held monitor.
The unique base of the camera allows it to stand
alone on a flat surface or be clipped onto the
edge of a door. The multidirectional stem allows
amazing flexibility for the camera, as well as
keeping a rock solid picture.
The "Dancing Daisy" comes with a soft night light
that can be switched on and off by touching the
flower branch.
8 infrared illuminators see in total darkness for up
to 16 ft.! (see sample below)
|
|
|
 |
|
|
Click Picture for better view
|
|
|
|
 |
|
|
|
|

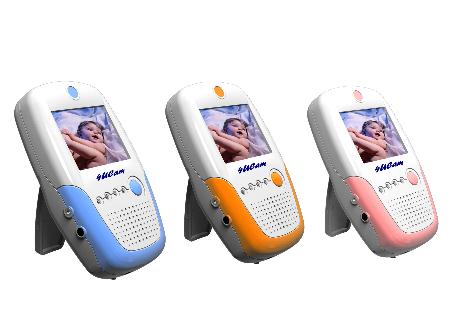

COLOR 2.5" LCD-TFT monitor insures
excellent picture quality. Built-in audio lets
you know when baby is in need. A/V
output allows for recording or viewing on
a TV or Monitor.
The hand held rechargeable monitor
receiver has 4 channels, allowing up to 4
separate cameras to be viewed through
the one monitor. Additional "Dancing
Daisy" camera are available for purchase
separately
|
Here are the actual pictures taken from this camera (819T)
QUALITY OF CAMERAS YOU CAN SEE HERE:
|
Outside View
|
Indoor View
|
Completely Dark – Night Vision View
|
|
|
|
|
Accessories for Daisy Set:

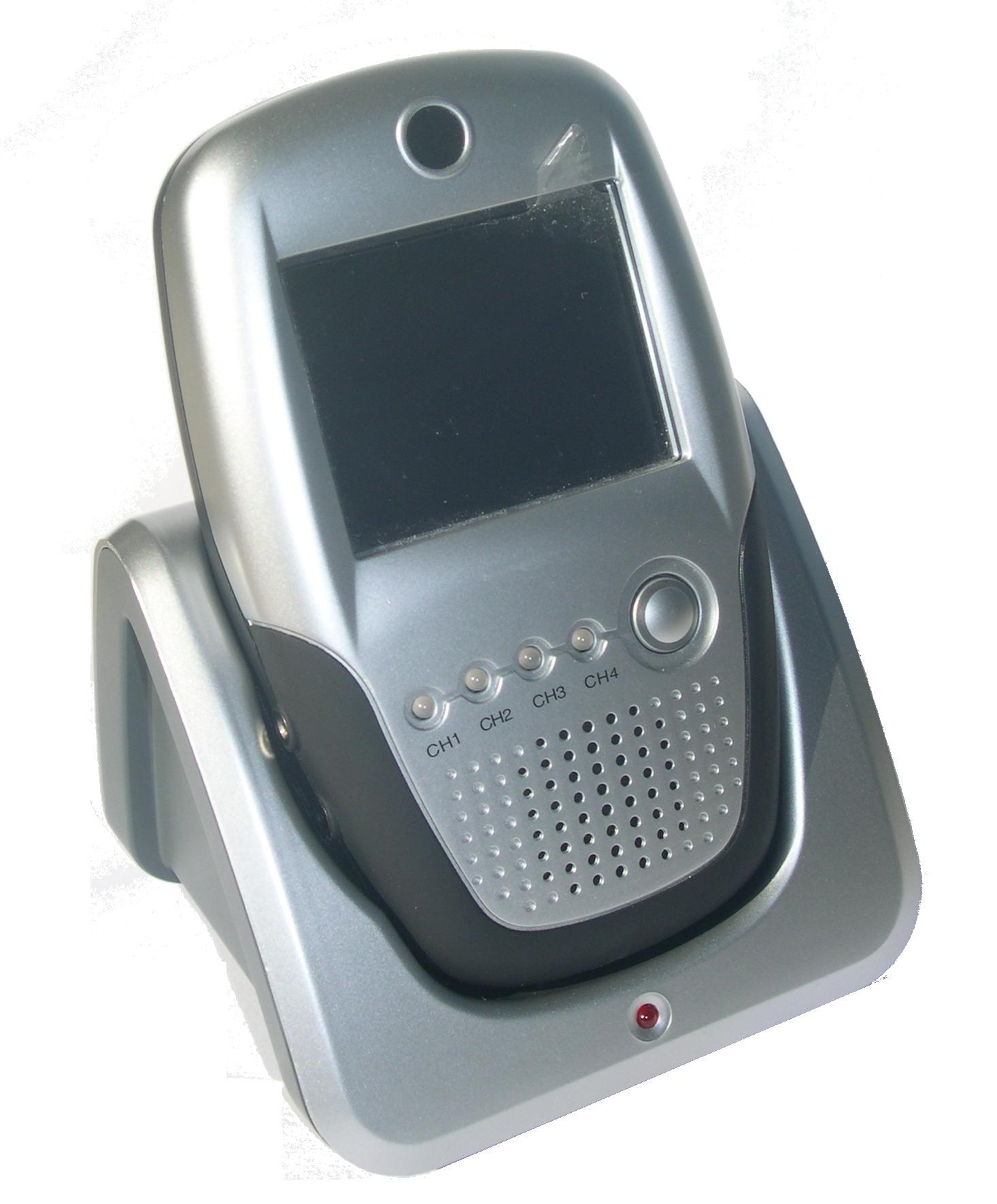

Monitor Charge Base:
Includes:
12V A/C adapter,
Car 12V adapter,
charge base (no monitor)
Item#:B403
Listed: $85
Now: $54.95

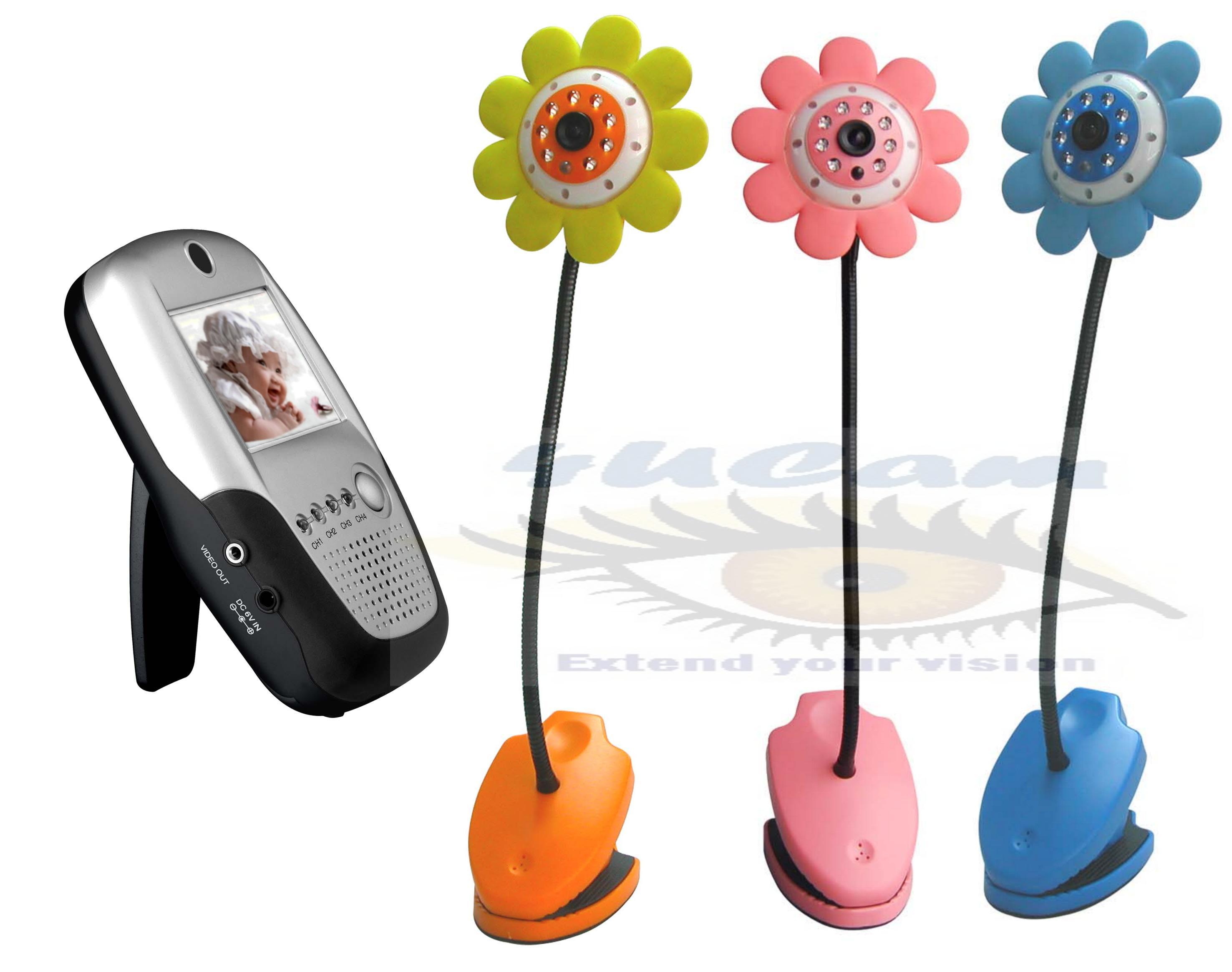

Additional Camera
Item#:819T
Listed $99.99 Now $69.95

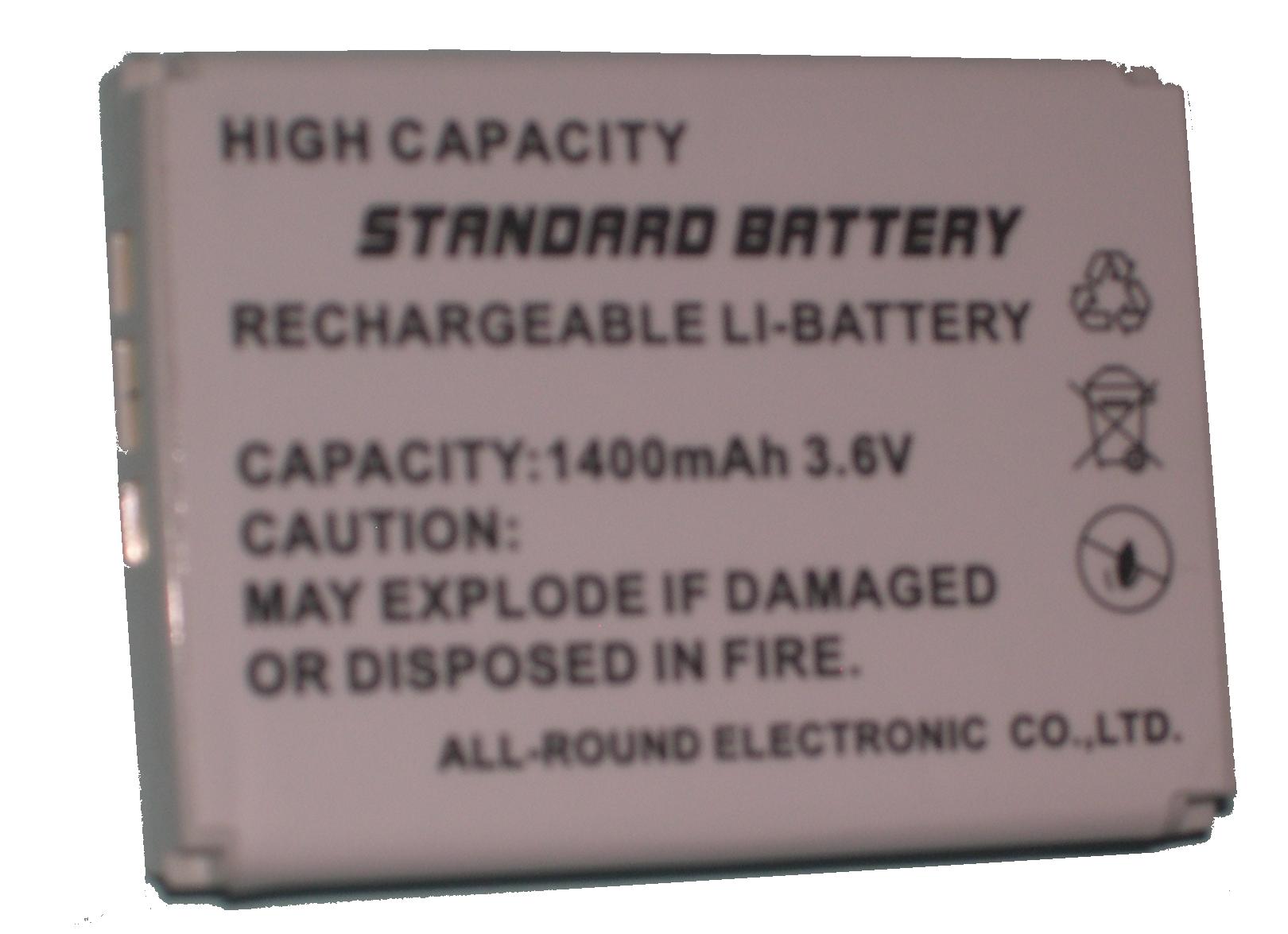

Additional Battery
Item#:B401
Listed $19.99 Now $9.95
9V battery adapter for camera.
- this adapter will make the camera truly portable.
Item#:9Vadapter
(battery no included)
Now $4.99
Additional 2.5" Monitor
Item: #711A
Listed $119.99
Now $99.95
7" LCD Monitor
Item: #7inch_LCD_Baby
Listed $199.99
Now $139.95
Additional A/C adapter -
for camera or monitor
$13.99
(Please select
correct model)
Imaging Sensor : CMOS
CMOS Total Pixels : 628x582(PAL) ; 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 60 Degree
Minimum Illumination: 0 Lux
Transmission Frequency: ISM 2,400~2,483 MHz
Transmission Power : 10mW/CE; 2mW/FCC
Modulation Type: FM
Bandwidth : 18 MHz
Power Supply: +8 VDC
Consumption Current : 80mA(IR OFF) & 140mA(IR ON)
Unobstructed Effective Range : 100m (Min)
Night Vision Range: 5m
Dimensions(W x L x H): 92 x 89 x 360 mm
Weight : 6 oz
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~
+122 (Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185
(Degree F)
Operating Humidity: 85% RH
Camera/Transmitter (819T))
Monitor/Receiver
LCD Size : 2.5 inch TFT
LCD Resolution: 480 x 234
Receiving Frequency: ISM 2,400MHz~2,483MHz
Intermediate Frequency: 480MHz
Demodulation Type: FM
Receiving Sensitivity: <= -85dBm
Power Supply: +5 VDC
Consumption Current : 700mA
Dimensions(WxDxH): 80 x 38 x 130 mm (Excluding
Antenna)
Weight : 9 ozs
Operating Temperature : 0 ~ +50 (Degree C) / +32 ~ +122
(Degree F)
Storage Temperature: -20 ~ +80 (Degree C) / -4 ~ +176
(Degree F)
Operating Humidity: 85% RH
