Digital Wireless Backup CCD
Camera and 7" LCD Receiver
Item#: 9901Digital
Listed Price: $299.99
Now $239.95



PRODUCT DESCRIPTION:
Digital Wireless Signal - 100 feet range, 0% Interference, 0% statics, 100% crystal clear picture
guaranty, or 110% your money back guaranty*.
This unit is designed for 5th wheel and trailer, just need to connect onto any 12/24 volt power for the camera and connect
monitor to your cigarette lighter plug. If you have Furrion®** prewire Kit (FOS48T-BL/FOC12TA-BL) in your 5th wheel or
trailer, you can get the Bracket Adapter, see 2nd video below.
This unit ranked Best Hight-End wireless backup camera by Ezvid Wiki (we are not affiliated with Ezvid).
6 Best Wireless Backup Camera Kits | May 2017 https://wiki.ezvid.com/best-wireless-backup-camera-kits
Wireless digital signal will not have interference and statics problem. See Video Demo below.
The Monitor:
This 7" TFT LCD Widescreen with built-in DIGITAL wireless receiver, just plug into cigarette lighter plug, no additional
wiring, no additional wireless receiver hanging on your dashboard. The 1" thin LCD sits on the fully adjustable base allowing
you to aim the screen in almost any direction. A removable external antenna for the monitor allows for better reception for
long range signals. Camera wireless signal bar provide your information on the signal strength. Allow image rotation and
mirror, non-mirror setting. Full RCA A/V output allows you to output image to bigger screen. Click Here for multiple cameras.

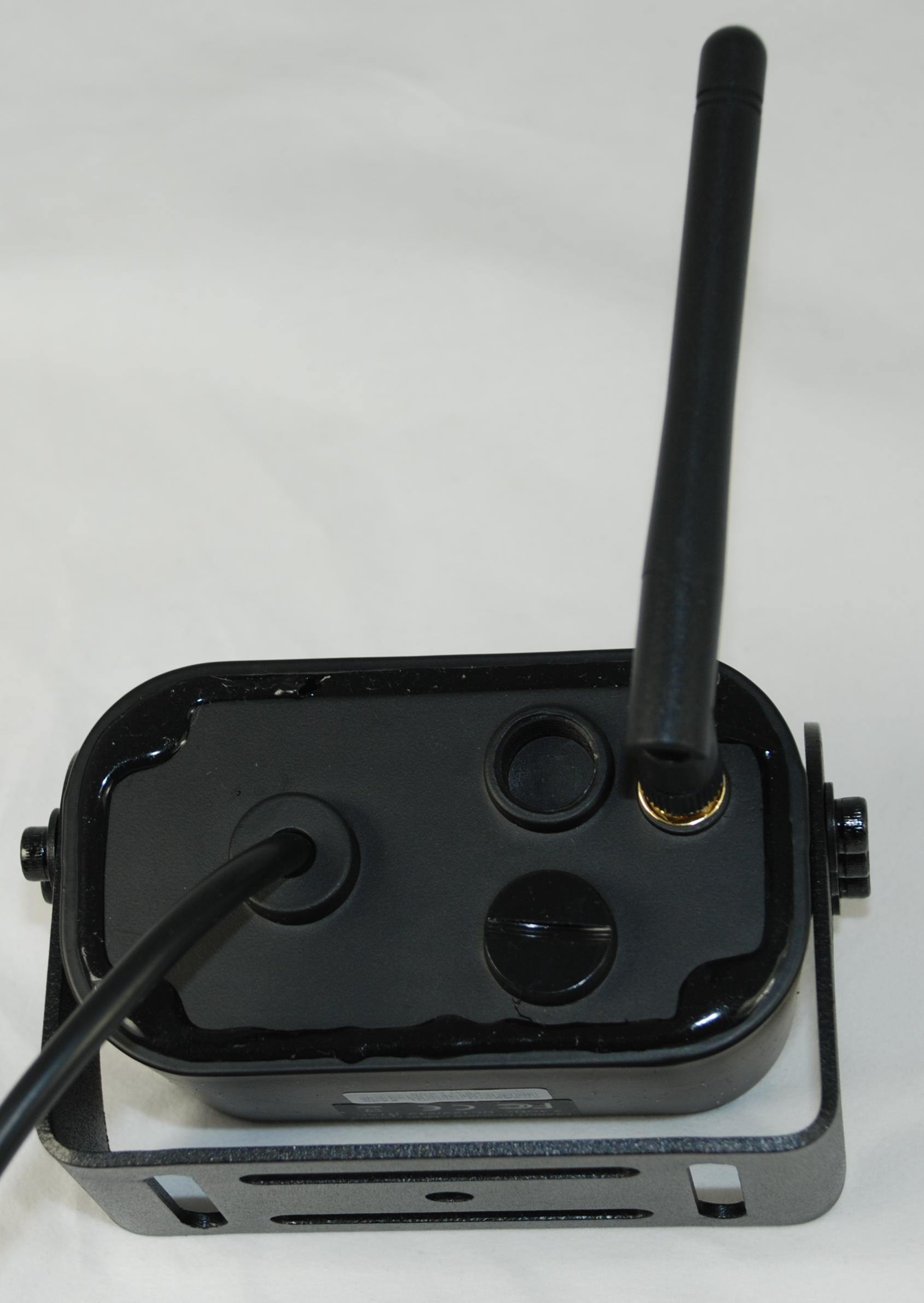

The Camera:
This heavy-duty metal framed CCD wireless water-proof camera comes with a 11 high-powered IR LEDs for 30 feet night
vision in total darkness. Camera uses SONY 1/4" high-resolution CCD, with removable external antenna for longer range
signal transmission, estimated unobstructed range of 300 feet. By adding the optional super-charged extended antenna
($25), this set can be used in almost any situation. Aluminum alloy metal case with 6.8G-force rated shock resistant, IP66
waterproof of resistance grade, and heavy-duty adjustable steel mounting bracket.
Click Above Pictures for Detail View
Get the security you need to protect your family and friends. Eliminate the blinds spots and see what's behind you before
you back up. Large 7" monitor is easy to view.
• DIGITAL Wireless Back-Up Camera System, 0% Interference, 0% statics, 100% crystal clear picture guaranty.
• DIGITAL Wireless System, no need for complex connect wire layout, easy install.
• Built-in 11 high-powered IR LED night vision helping to see better at night (see sample picture below)
• Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
• Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
• 7” Color TFT-LCD Monitor with built-in receiver, one RCA A/V output for your DVD or game console.
• Waterproof, heavy-duty CCD IR camera provides flexible mount location and position
• For use with 12V-24V DC electrical systems, comes with cigarette lighter power adapter for the monitor.
• Installation is easy with the elimination of wires from camera to monitor
• Comes complete with everything you need to install
• Easy to read English installation manual
Specifications:
CCD Camera/Transmitter (9901DT)
|
Monitor/Receiver (Digital7101+external antenna)
|
Imaging Sensor CCD CCD Total Pixels 712 x 480 (NTSC) Minimum Illumination 0 Lux Transmission Frequency ISM Digital Transmission Power 10mW/CE; 2mW/FCC Modulation Type FM IR Night Range 30 ft Bandwidth 18 MHz Power Supply + 12V/24V DC Consumption Current (Max.) 230mA Horizontal View Angle 130 Degrees Unobstructed Effective Range 100m [Min.] Dimensions (W x D x H)(mm) 96x52x61(excluding bracket) Weight [About) 440g Operating Temperature -20°C/+60°C or+4°F/140°F Operating Humidity 85% RH
|
LCD Resolution 800 x 480 Receiving Frequency ISM Digital Intermediate Frequency 480 MHz Demodulation Type FM Antenna 50 ohm SMA Receiving Sensitivity <= -85 dBm Video Output Signal Level 1 .1 V +/- 0.2V~ @75ohm, S/N>38dB Power Supply + 12/36 V DC Consumption Current (Max.) 600mA Unobstructed Effective Range 100(Min.) Dimensions (W x D x H) 214 x 26 x 157mm Weight [About) 404 g (excluding bracket) Operating Temperature -10°C/+50°C or+14°F/122°F Operating Humidity 85% RH
|
|
Package contains:
- 9901DT Digital Wireless BackUp Camera
- 7101Digital 7” TFT-LCD Monitor w/ built-in
digital receiver
- Cigarette Lighter power adapter for monitor.
- Additional monitor power cable for monitor
(if wish hardwire)
- Mount Holder
- Video cable, screws, wire connectors
- User manual
Accessories - additional camera and more:
|
|
|
|
|
7" TFT LCD
|
Back Side View
|
Monitor Base
|
CCD IR Wireless Camera
|
Optional Antenna $15
|
|
A/C adapter for 7" Monitor
Item#:7-inch_AC
$14.99
Table stand or wall mount
Item: #7"LCD_table_stand
$19.95
See the installation video and
Live Demo for the signal range
on this Digital Wireless rear
view camera unit.
Car wire Harness for 7" Monitor
Item#:7-inch_wire_harness
$9.99
Car Cigarette Lighter Cables for 7" Monitor
Item#:7-inch_car_adapter
$12.99
Item: #7"LCD_dash_mount
$24.95




* We guaranty 0% Interference, 0% statics, 100% crystal clear picture guaranty, or 110%your money back guaranty. You
either get a crystal clear, non-statics, non-interference picture, or no picture at all (if the signal is too weak), given you can
provide a good steady power source. If the camera is too far away from the monitor, i.e. over 100 feet away with some layers
of blockage, you will get a No Video message on the monitor. There is signal bar on the monitor to indicate the camera signal
strain. If the signal bar is below 10%, adding the antenna extension cord, and or 9901A 2m antenna will improve the signal
range up to 250 feet in open space. When you have a Toy hauler, due to metal reinforced back wall, signal will reply on
surrounding object to bounce the signal, and might temporary lose signal when driving on wide open high way. Suggest to get
the antenna extension cord to move the antenna to the front wall to guaranty a stable signal. The camera has
infrared-sensitive image sensor and is tuned to see better in the low light and night time. Since an infrared-passing filter is
used, the foliage (such as tree leaves and grass) would show as false-color/Pink color.

Antenna Extension cord: for camera or monitor
item#:
antenna_cord_10ft $14.95
antenna_cord_20ft $24.95
antenna_cord_40ft $44.95
If your camera is behind 40+ foot trailer, bigger antenna and antenna extension cord are
suggested to boost the signal straight, specially for Toy Hauler dual to reinforced back wall.

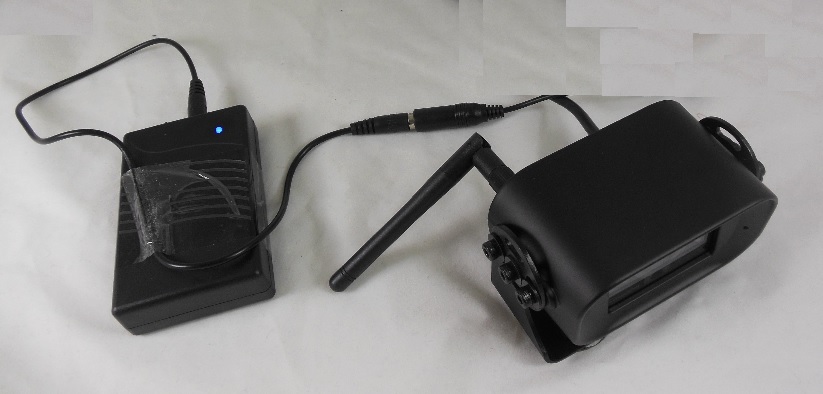

If you want to covert the camera to portable, you can get the battery pack, and industrial magnetic ring from link below.

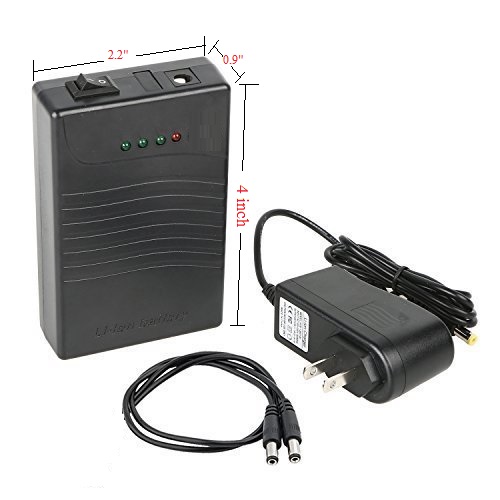

12V portable rechargeable battery pack
(3000mAH fully charged, use about 2-4 hours)
Item#:12V_battery_pack
$49.99

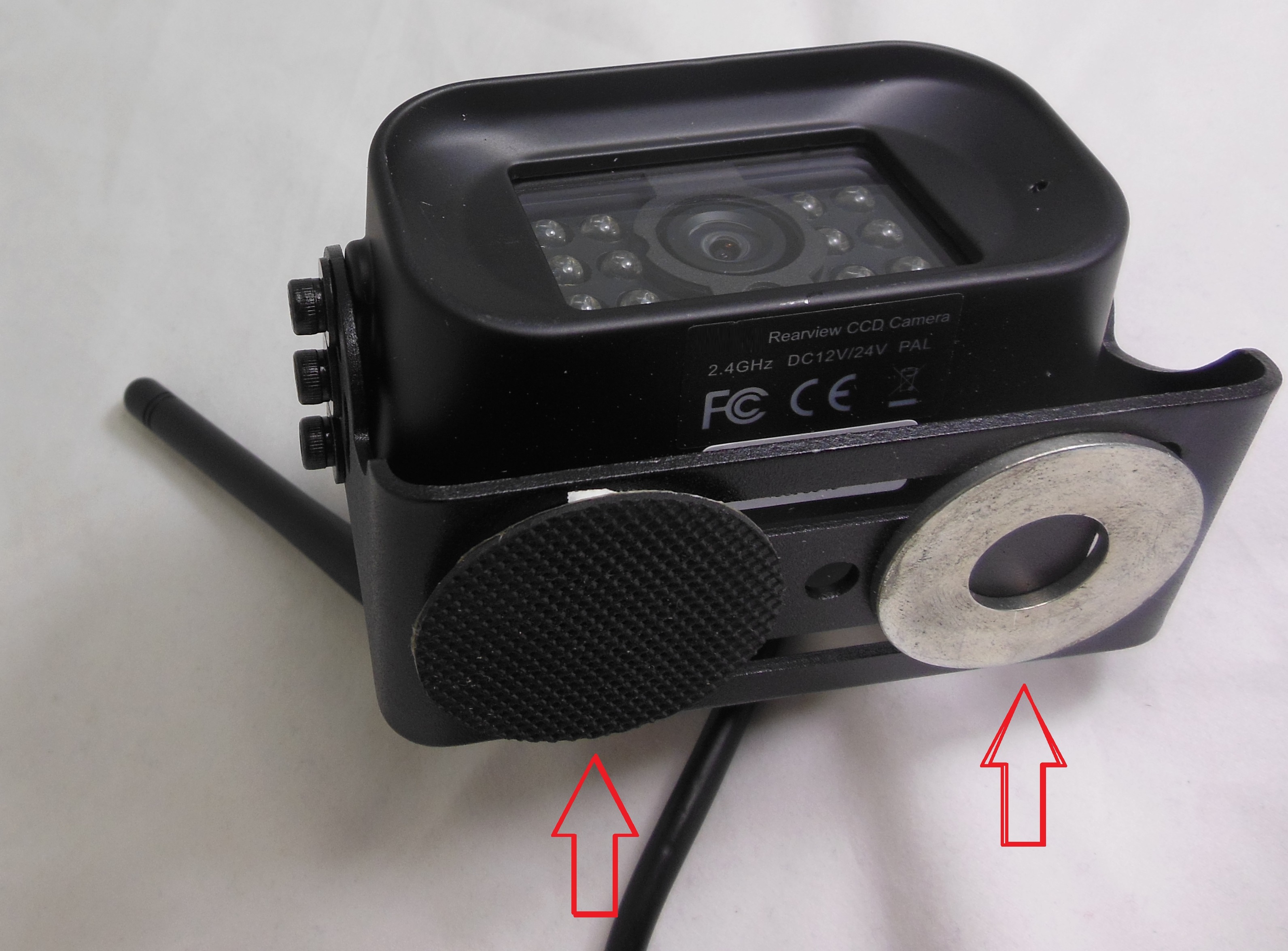

Industrial magnetic ring - one pair
Item#:magnetic_ring_onePair
$9.99
Car Cigarette Lighter battery pack
Item#:12v_car_adapter
$14.99

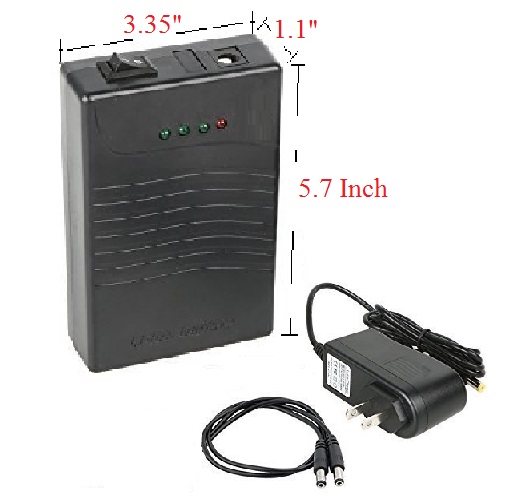

12V portable rechargeable battery pack
(6000mAH fully charged, use about 4-8 hours)
Item#:12V_battery_pack2
$79.99
3000mAh
6000mAh

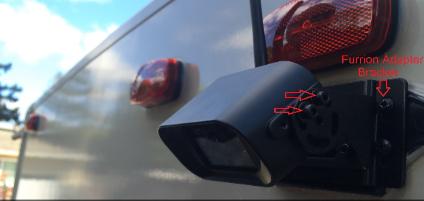

If you have Furrion®** Pre-install Mounting Kit (FOS48T-BL/FOC12TA-BL) in
your 5th wheel or trailer, suggest to add this Bracket Adapter, installation
takes minute. Click here for installation detail.
Bracket adapter for
Pre-install Mounting Kit
Item#:Bracket_adapter
$19.99
bracket adapter w/ screws set
Item#:Bracket_adapter
$19.99
Digital CCD Cam
Item#:9901T-JQ
Listed $199.99
Now $139.95
Please note, your 9901Digital monitor can only
see one camera at a time. When you switch to
different camera, you need to RE-Pairing the
monitor with the new camera.
Digital View Monitor
Item#:DigitalMonitor
Listed $199.99
Now $149.95
Item#:90Degree_antenna
Now $4.95
Extended 2m Antenna:
-magnetic base for camera or monitor
Item#:9901A $14.95
** “Furrion®" is trademark and registered trademark licensed by Furrion Ltd. This product is not authorised, sponsored
or approved by, or in any way associated with Furrion. We only provide the adapter to fit onto Pre-install Mounting Kit
(FOS48T-BL/FOC12TA-BL).
bracket adapter w/ screws set
Item#:Bracket_adapter
$19.99
