Wired Backup CCD Camera
and 7" LCD Receiver
Item#: 9901LD
Listed Price: $369.99
Now $209.95
specification
PRODUCT DESCRIPTION:
If you are looking for the best of wired backup camera and monitor set available in the industry, here is your answer.

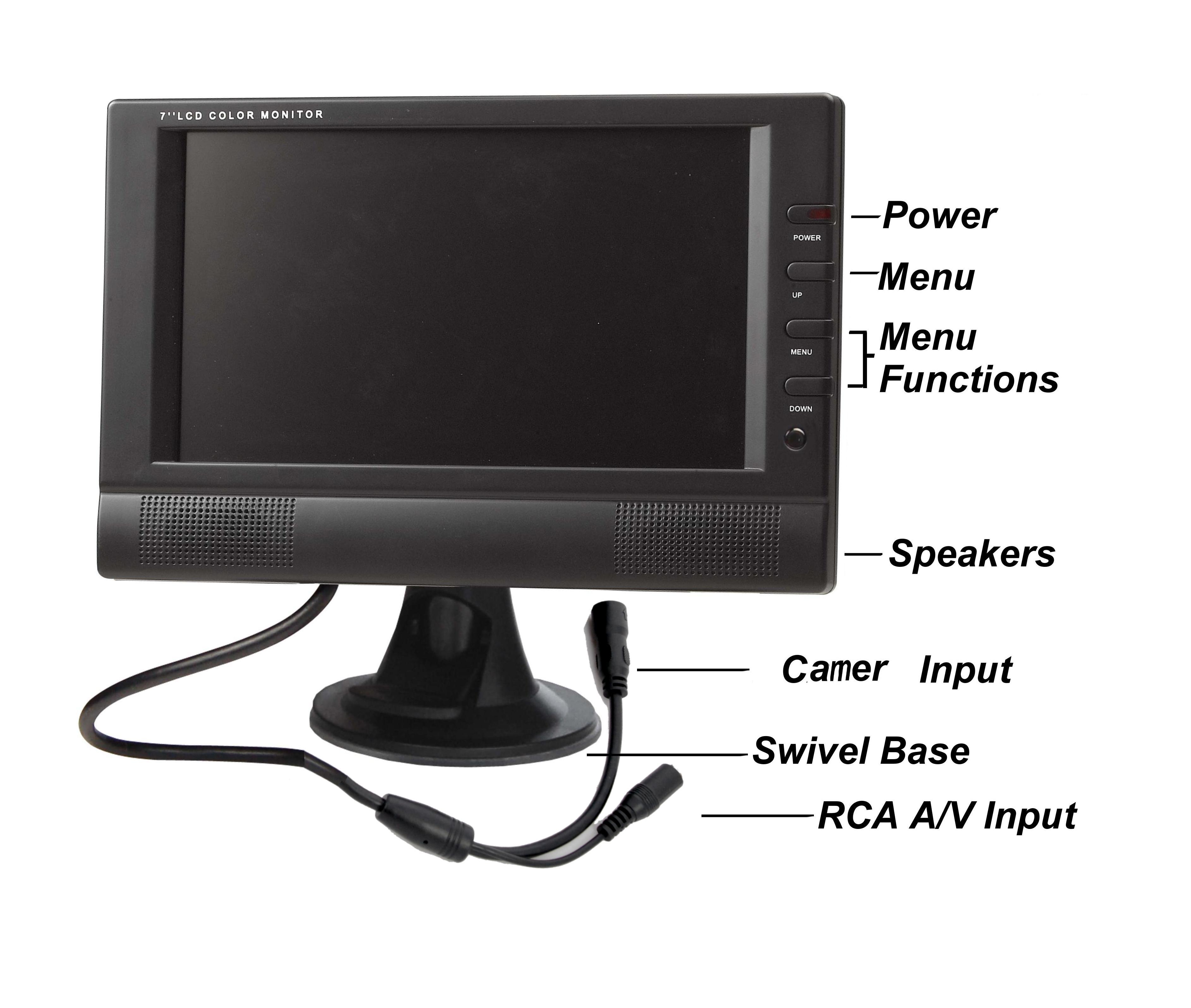

The Monitor:
This new arrival of our 7" TFT LCD Widescreen is the largest screen backup monitor on the market. The 1" thin LCD
sits on the fully adjustable base allowing you to aim the screen in almost any direction. A 40-feet cable connects

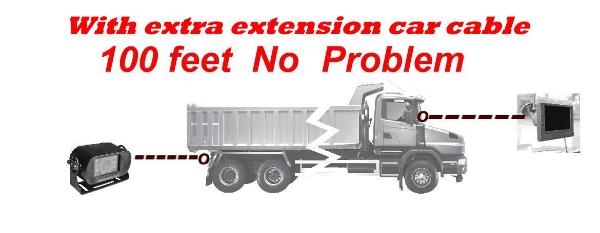

camera to monitor allows for best reception for long range signals. Optional 60-feet, and 100-feet cable are available.
The On-Screen-Display menu allows you to navigate and change settings from a distance, using the remote control.
Full RCA A/V input allows you to plug in a DVD player, or video game console. The built-in dual speakers provide a
stereo sound. Monitor support up to two cameras.
Click to see 2nd camera option (secondary camera).

The Camera:
This heavy-duty metal framed CCD water-proof camera comes with a 12 high-powered IR LEDs for 20 feet night vision
in total darkness. Camera uses SONY 1/4" high-resolution CCD, with 40-feet cable connects to monitor, optional
extended cable up to range of 300 feet. Aluminum alloy metal case with 6.8G-force rated shock resistant, IP66
waterproof of resistance grade, and heavy-duty adjustable steel mounting bracket.

Optional trigger cable connects to reverse light switch allows the monitor to auto turn on when car is in reverse gear,
and the monitor in auto power save mode when off reverse. System is also designed for running the camera on all-time
mode, as rear-view monitoring.
















Click Above Pictures for Detail View

Get the security you need to protect your family and friends. Eliminate the blind spots and see what's behind you
before you back up. Large 7" monitor is easy to view.
•        Wired Back-Up Camera System guarantees to provide clear and uninterrupted view.
•        Built-in 12 high-powered IR LED night vision helps to see better at night (see sample picture below)
•        Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
•        Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
•        7” Color TFT-LCD Monitor with RCA A/V input for your DVD or game console.
•        Waterproof, heavy-duty CCD IR camera provides flexible mount location and position
•        Use with 12V/24V DC electrical systems
•        Comes complete with everything you need to install (with 40 feet cable).
•        Easy to read English installation manual

Why just use you monitor in your car? You can use it in-doors as Security Monitor system, or another flat panel
monitor for your DVD or game console at home. Just add the optional A/C adapter for your 7" monitor to use at home.

Specifications:
CCD Camera (9901T_wired)
Monitor (7109W)
Imaging Sensor        SONY CCD
CCD Total Pixels        512 x 492 (NTSC)
Minimum Illumination        0 Lux (IR on)
IR Night Range           40 ft
Bandwidth        18 MHz
Power Supply        + 12V/24 DC
Consumption Current (Max.)        250mA
Horizontal View Angle        95 Degrees
Dimensions (W x D x H)(mm) 96x52x61(excluding bracket)
Weight [About)        400g
Operating Temperature        -20°C/+60°C or+4°F/140°F
Operating Humidity        85% RH
LCD Resolution               480 x 342
Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Audio Output Signal Level        3.0V +/- 1V~ @600ohm
Power Supply        + 12/24 V DC
Consumption Current (Max.)        800mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        196 x 27 x 127mm
Weight [About)        450 g (excluding bracket)
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

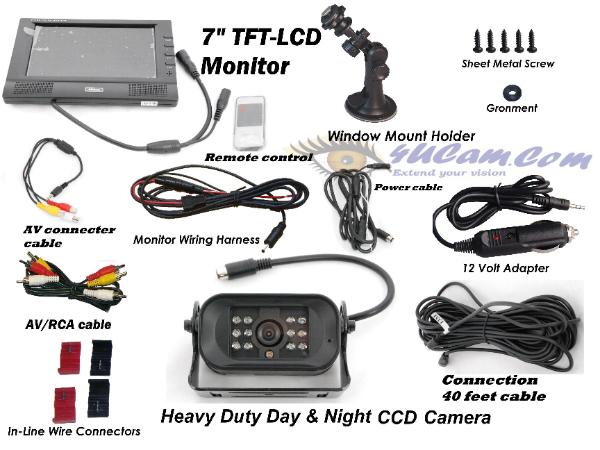

Package contains:
  • 9901TW wired Back Up Camera
  • 7109W 7 TFT-LCD Monitor
  • Monitor Remote Control
  • Suction Mount Holder
  • Cigarette Lighter adapter
  • 40 feet Connection cable
  • Power cable
  • AV connection cable
  • AV/RCA cable
  • Monitor wiring harness
  • Camera installation accessories

You can upgrade 40 feet connection
cable to 60 feet, by select the following
upgrade option.
contains
IR camera Night view
Camera w/o IR view
Sun blocking feature
Mirror image switch
Night Vision feature help to see better at night
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
accessories
Accessories - additional camera and more:
7" TFT LCD
Back Side View
Monitor Base/remote control
CCD IR Wired Camera
40ft cable
Wired CCD IR Camera
Item#:9901TW
Listed $199.99
Now $159.95
See Live Demo of 8909AV
(not this system)
Video is the live demo of 8909AV system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van.

9901LD is wired system, and will not
support multiple channel (cameras), but
CCD camera will provide better image
quality, clarity, and better night vision.
Car wire Harness for 7" Monitor
Item#:7-inch_wire_harness
$9.99
Car Cigarette Lighter Cables for 7" Monitor
Item#:7-inch_car_adapter
$14.99
Upgrade from 40 feet to 60 feet cable
Item#:60feet_upgrade
$19.99
30 feet extra extension cable
Item#:30feet_9901LD
$29.99
60 feet extra extension cable
Item#:60feet_9901LD
$49.99
A/C adapter for 7" Monitor
Item#:7-inch_AC
$14.99
Table stand or wall mount
Item: #7"LCD_table_stand
$19.95
7" TFT Monitor
Item#:7109W
Listed $199.99
Now $179.95
Note: it is for primary camera replacement
only. Monitor only has one primary camera
input. If wish 2nd cam, select HTxxx model.
Item: #7"LCD_dash_mount
$24.95
Monitor can support one additional Camera (secondary camera)
- please select wire code length
20LED IR wired Cam
Item#:HT633
Listed $179.99
Now $120.00
15 Feet cable  $5


30 Feet Cable   $15


45 Feet Cable  $25
8 LED IR wired
license Cam
Item#:HTN08
Listed $99.99
Now $65.00
15 Feet cable  $5


30 Feet Cable   $15


45 Feet Cable  $25

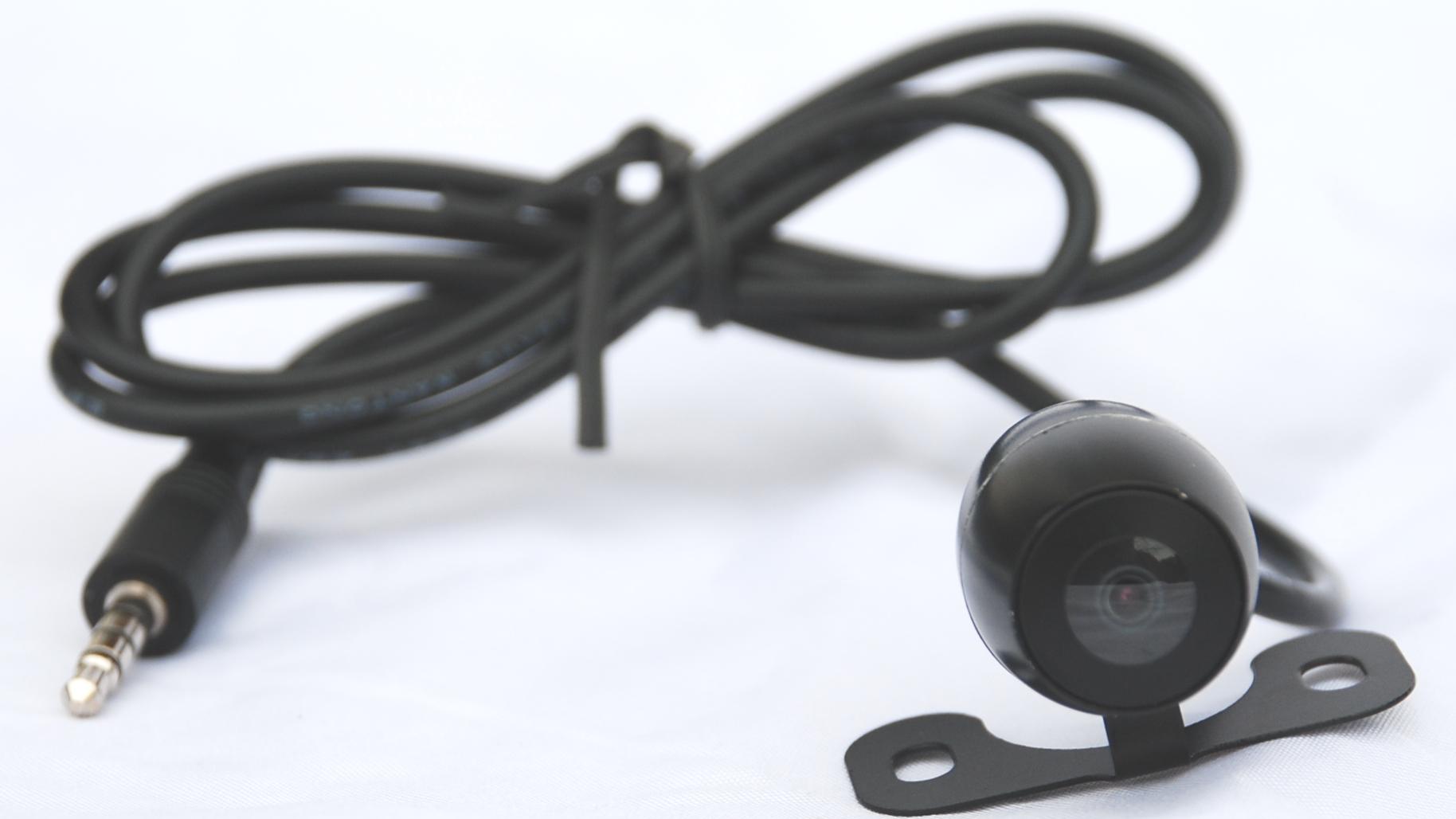

NON-IR wired mini
Cam
Item#:HTN05
Listed $89.99
Now $45.00
15 Feet cable  $5


30 Feet Cable   $15


45 Feet Cable  $25
Add 2nd Camera start from $45
Multi-plug cable
Item#:9901LD_cord3
$14.99
