Wired Micro Inspection Camera
Color LCD Monitor
Item# 8806GL
Listed $149.99 Now $99.95
Full Color
Indoor
Day and Night
PRODUCT DESCRIPTION:
This new released inspection camera provides a low cost solution by taking away the wireless feature.
It can adjust the brightness, contrast and image rotation on monitor allows to adjust viewing orientation.

This new arrival of micro inspection camera set comes with all the basic feature of the snake inspection camera, view
camera with or without LED light on high visibility LCD monitor. The camera head is equipped with fully adjustable twin LED
lights for night vision and day time usage, waterproof camera head allows to view maximum 10' under water (when assembly
properly). A flexible 3' cable (optional extended to 30 ft) helps to extend your vision to the point of discovery. No more
struggling with flashlight and a mirror. This micro inspection tool set helps you to identify problem and its location, and make
a tough job easier. Tool set comes with accessory hook, magnet and mini mirror to speed up the solution.

(New Wireless Micro Digital Inspection Video Camera 3.5" LCD Monitor available now, click link)

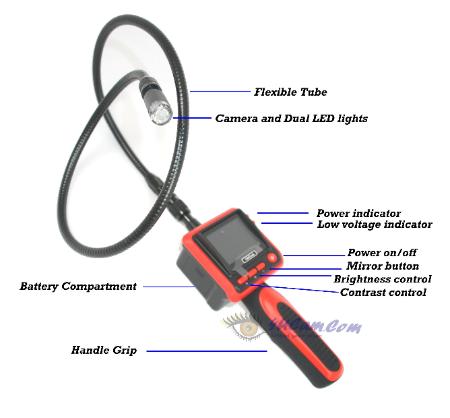

FEATURES:
  • Allows for easy visual inspections in hard-to-reach areas
  • Image rotation on monitor allows better orientation
  • Lightweight, hand held design means that it can go wherever you want
  • Easily find and diagnose problems with the 3' flexible cable (optional extend to 30')
  • Comes standard with a full color camera, adjustable lighting and 2.4" LCD monitor
  • Waterproof Camera Head and Cable, extend to 10' (optional extension when properly assembled)
  • Twist and Lock Attachments
  • 4-AA Batteries for camera, fully adjustable twin LED lights
  • Comfort Grip housing with easy viewing monitor.
specification
Specifications:
Camera/Transmitter (8802T)
Monitor (8805)
Camera Diameter    0.7" (17mm)
Total Pixels        712 x 486 (NTSC)
Cable reach       3' (optional expendable to 30')
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,483 Mhz
Max view     30 ft
IR Night Range           8 ft
Power Supply        4 AA batteries
LED light              two, fully adjustable
Horizontal View Angle        50 Degrees
Unobstructed Effective Range        10m [Min.]
Dimensions (W x D x H)(mm) 186x145x41(excluding tube)
Weight [About)        530g
Waterproof capacity   IP67 (10' when properly assembled)
 LCD Resolution               480 x 234
LCD Size                        2.4"
Exterior Power Supply        + 4 AA batteries
Consumption Current (Max.)        150mA


Full set Dimensions (W x D x H)        201 x 83 x 59mm
Weight [About)        473g
Operating Humidity        85% RH
features
Package contains:
  • 17mm Camera on 3ft flex-tube
  • Comfort grip hand-held
  • 2.4" LCD monitor
  • Hook accessory
  • Magnet accessory
  • Mirror accessory
  • User manual

User Manual Download
contains
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
accessories
Accessories:
A/C adapter for AJ Monitor
Item#:882_AC
$14.99
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99  Now $64.95
Sample Applications:
Wireless detached monitor for better viewing                                             Waterproof camera underwater usage
Monitor Magnetic Bracket
Item#:882_mBase
Now $19.95
7" Monitor with A/C plug
7" LCD Monitor w/ base
A/C power adapter
Remote control
(optional car lighter cable)
<Must require 110V Power
require A/C plug>
Item: #7inch_LCD_AC
Now $149.95
3.6" Monitor w/ A/C plug
3.6” LCD Monitor
A/C power adapter
(optional car lighter cable)
<Must require 110V Power
require A/C plug>
Item#:7610Z_AC
Now $104.95
Work with 882AJ Monitor, using as RV/Car backup camera system
Ultra IR 12V Outdoor/Car Cam
Specification:
Item#:823T Now $84.95
Channel#
Work with 882AJ Monitor, using as Security Camera System
backup
security
Monitor Video Cable
Item#:882_AV
Now $9.95
Car Cigarette Cables for AJ Monitor/420T
Item#:AJ_car_adapter
$12.99
backup#backup
Side by side size comparing - 2.5" v.s. 3.5" LCD
(New Wireless Micro Digital Inspection Video Camera 3.5" LCD Monitor available now, click link)
3.5" video recorder
Monitor
(SD card not included)
Item#:7307L
Now $194.95
See Live Video Demo
Following 4 videos are the actual uncut
unedited video footage, recorded by the
hand-held 3.5" video monitor (8802AL
model).
(Please note the 2.5" system does not
have video and image recording feature.
The 3.5" 882AL system was used on the
demo video. This system is WIRED
version, not wireless as demo show.
Under-door view
 Getting two screws in tube
 Car inspection sample
 Under Water view
882AJ Hard Case
Item#:882Case
Now $29.95
882AJ 3ft Cable w/ 17mm
camera
Item#:882_cam
Listed $139.99
Now $99.95
882AJ 3ft Cable w/ 9mm
camera
Item#:9mm_cam
Listed $159.99
Now $109.95
Click to
enlarge
882AJ 3ft Extension Cable
Item#:882_3ft
Listed $89.99
Now $39.95
882AJ 6.6 feet Extension Cable
Item#:882_7ft
Listed $159.99
Now $59.95
882AJ 16.6 feet Extension Cable
Item#:882_16ft
Listed $359.99
Now $109.95
