Wireless 9mm Digital Inspection
Video Camera 3.5" LCD Monitor
Item# 883AL
Listed $399.99 Now $179.95
PRODUCT DESCRIPTION:
This new Digital 9mm Inspection Video Camera is a hand-held video inspection system, added the wireless feature.
The digital platform allows you to take picture or record video, view and play-back on high resolution 3.5" monitor. You can
also connect to your TV or download saved image and video to your computer.
There is no more restriction comparing to the earlier version which forces the camera and monitor to connect together. It is
a better designed micro inspection camera set, the wireless option allows using detached monitor to view camera.
This new arrival of micro inspection camera set with built-in wireless receiver, and rechargeable Li-battery LCD
monitor, allows to view camera remotely on high visibility 3.5" LCD monitor. The camera head is equipped with fully

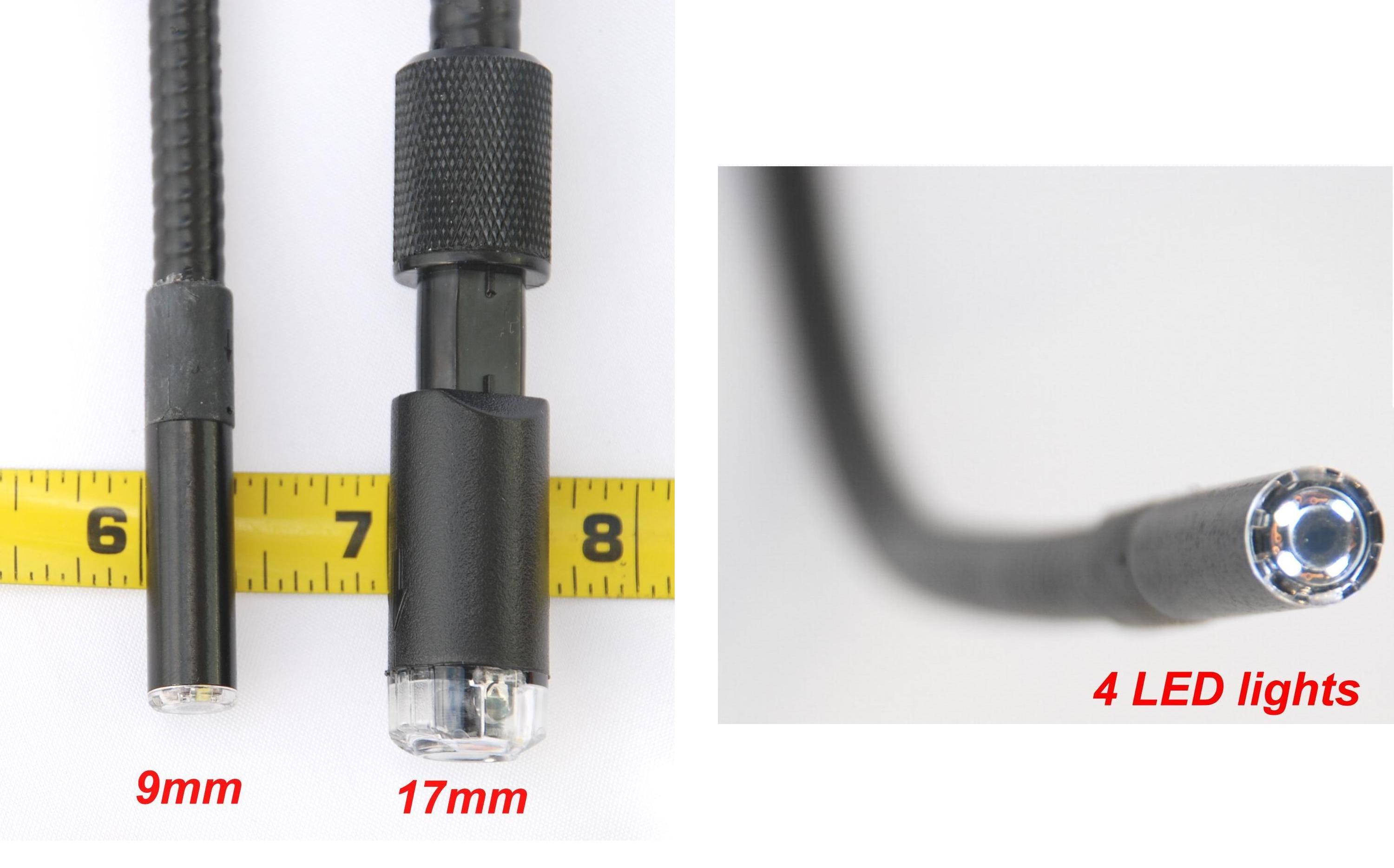

adjustable four LED lights for night vision and day time usage, waterproof camera head allows to view maximum 10' under
water (when assembly properly). A flexible 3' cable (optional extended to 30 ft) helps to extend your vision to the point of
discovery. No more struggling with flashlight and a mirror. This micro inspection tool set helps you to identify problem and its
location, and make a tough job easier. Tool set comes with accessory hook, magnet and mini mirror to speed up the
solution.
FEATURES:
- High resolution 3.5" color LCD with 320x240 resolution
- Image and video capture with JPG Images, AVI Video (640 x 480) in micro SD Card (SD Card not included).
- 9mm camera allows for easy visual inspections in hard-to-reach areas
- Wireless version allows monitor to detach from the hand-held for better viewing
- Built-in rechargeable Li-battery, wireless receiver with 3.5" color monitor (optional 2.4", 7" LCD)
- Lightweight, hand held design means that it can go wherever you want
- Easily find and diagnose problems with the 3' flexible cable (optional extend to 30')
- Comes standard with a full color camera, adjustable lighting and 3.5" LCD monitor
- Waterproof Camera Head and Cable, extend to 10' (optional extension when properly assembled)
- Twist and Lock Attachments
- 4-AA Batteries for camera, fully adjustable four LED lights
- Comfort Grip housing with video output to TV, and USB port connect to PC.
Optional Multiple Functions:
Why just use you monitor as inspection system?
By adding the wireless backup camera, you can use the monitor as rear view backup camera system. You can also use
it in-doors as a Baby Monitor, Security Monitor. This monitor, with 4 channel selection, can view all our wireless cameras we
carry. You can add other wireless cameras found in our accessories page.

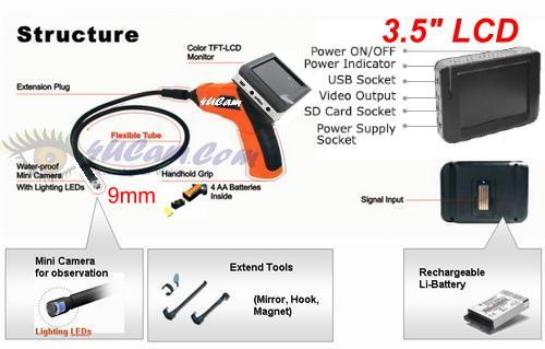

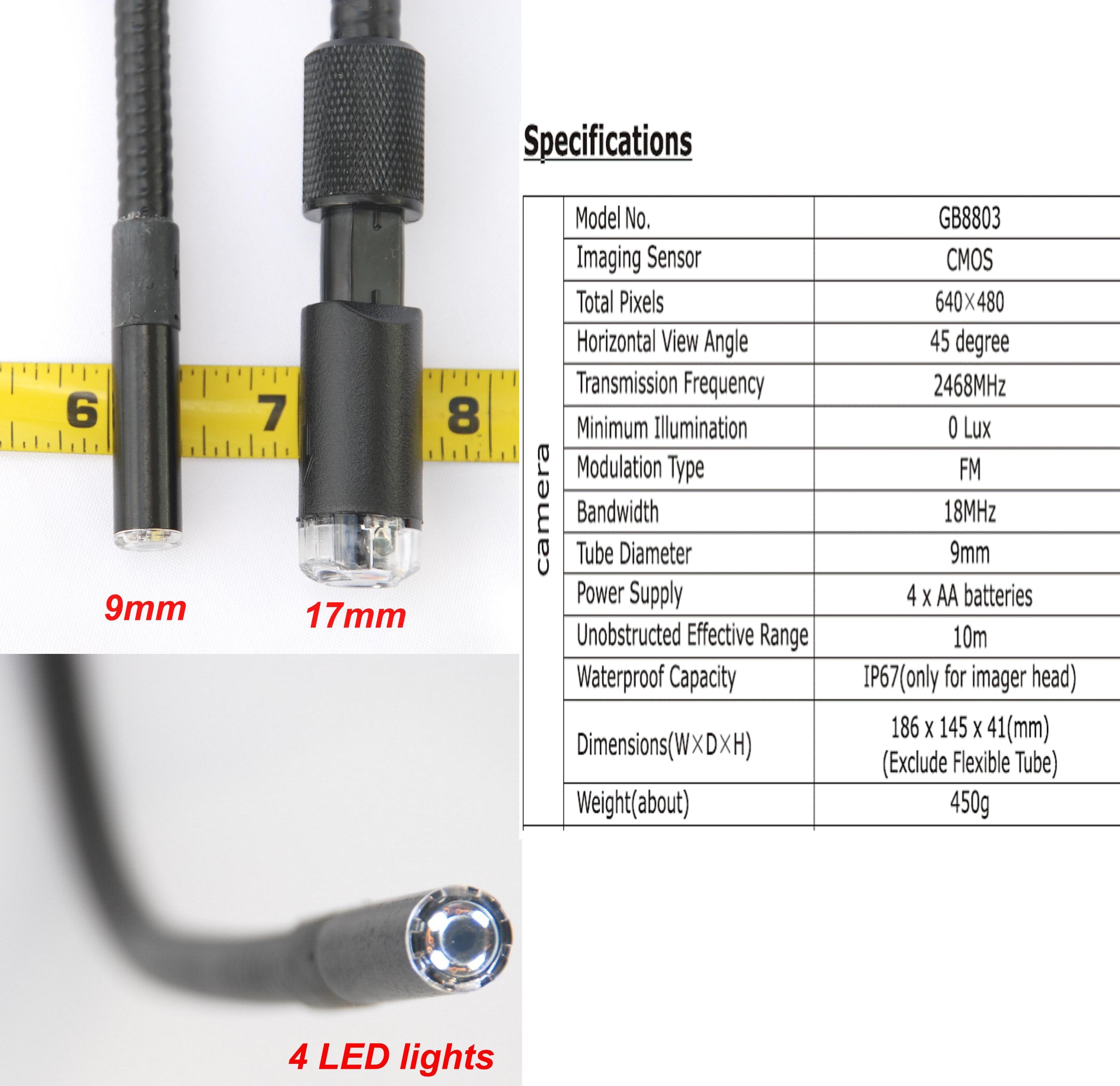

Specifications: Camera/Transmitter (8802T)
|
Monitor/Receiver (7307L)
|
Camera Diameter 11/32" (9mm) Total Pixels 640 x 480 (NTSC) Cable reach 3' (optional expendable to 30') Minimum Illumination 0 Lux Transmission Frequency ISM 2,483 Mhz Max view 30 ft IR Night Range 8 ft Power Supply 4 AA batteries (no included) LED light Four, fully adjustable Horizontal View Angle 45 Degrees Unobstructed Effective Range 10m [Min.] Dimensions (W x D x H)(mm) 186x145x41(excluding tube) Weight [About) 450g Waterproof capacity IP67 (10' when properly assembled)
|
LCD Resolution 320 x 240 LCD Size 3.5" Video resolution 640x480 Receiving Frequency 2,414-2,468MHz Rechargeable Li-battery 2hr (fully charged) Receiving Sensitivity <= -85 dBm Video Output Signal Level .9-1.3V~ @75ohm Exterior Power Supply + 5 V DC Consumption Current (Max.) 680mA Unobstructed Effective Range 10M(Min.) Dimensions (W x D x H) 100 x 70 x 25mm Weight [About) 140g Operating Humidity 85% RH
|
|

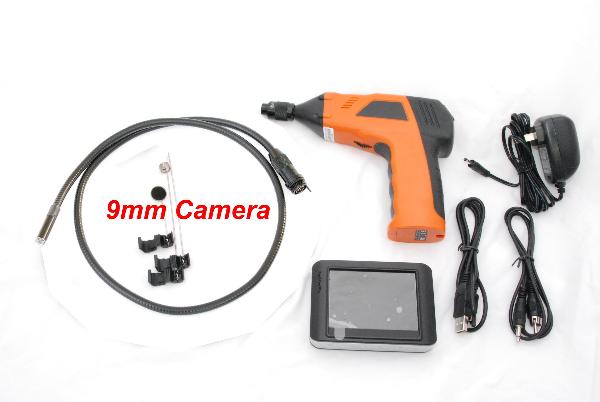

Package contains:
- 9mm Camera on 3ft flex-tube
- Comfort grip hand-held
- 3.5" LCD monitor built-in wireless
receiver and Li-rechargeable battery
- A/C adapter for monitor
- Video output cable
- USB cable
- Hook accessory
- Magnet accessory
- Mirror accessory
User Manual Download
Accessories:
A/C adapter for AL Monitor
Item#:882_AC
$14.99
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99 Now $64.95
Sample Applications:
Wireless detached monitor for better viewing Waterproof camera underwater usage

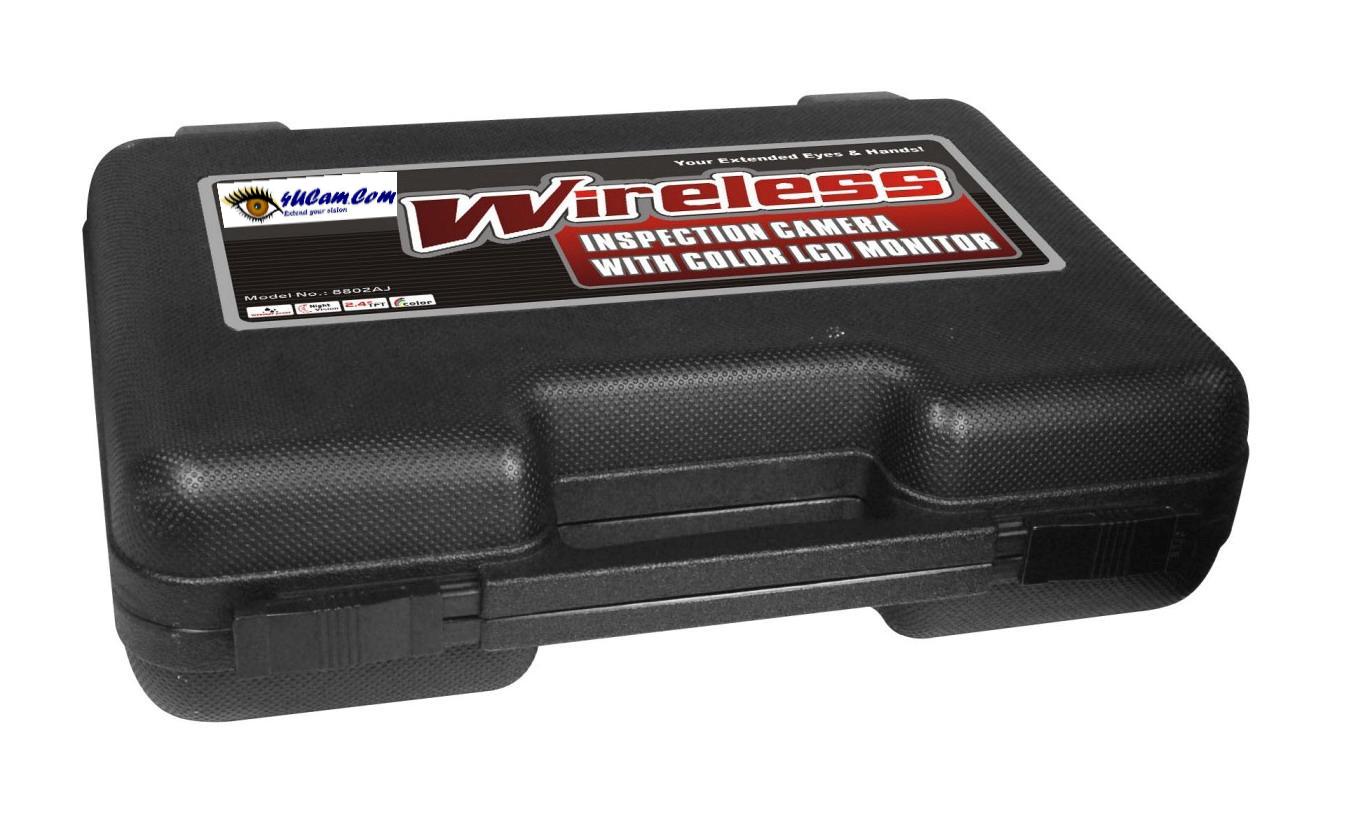

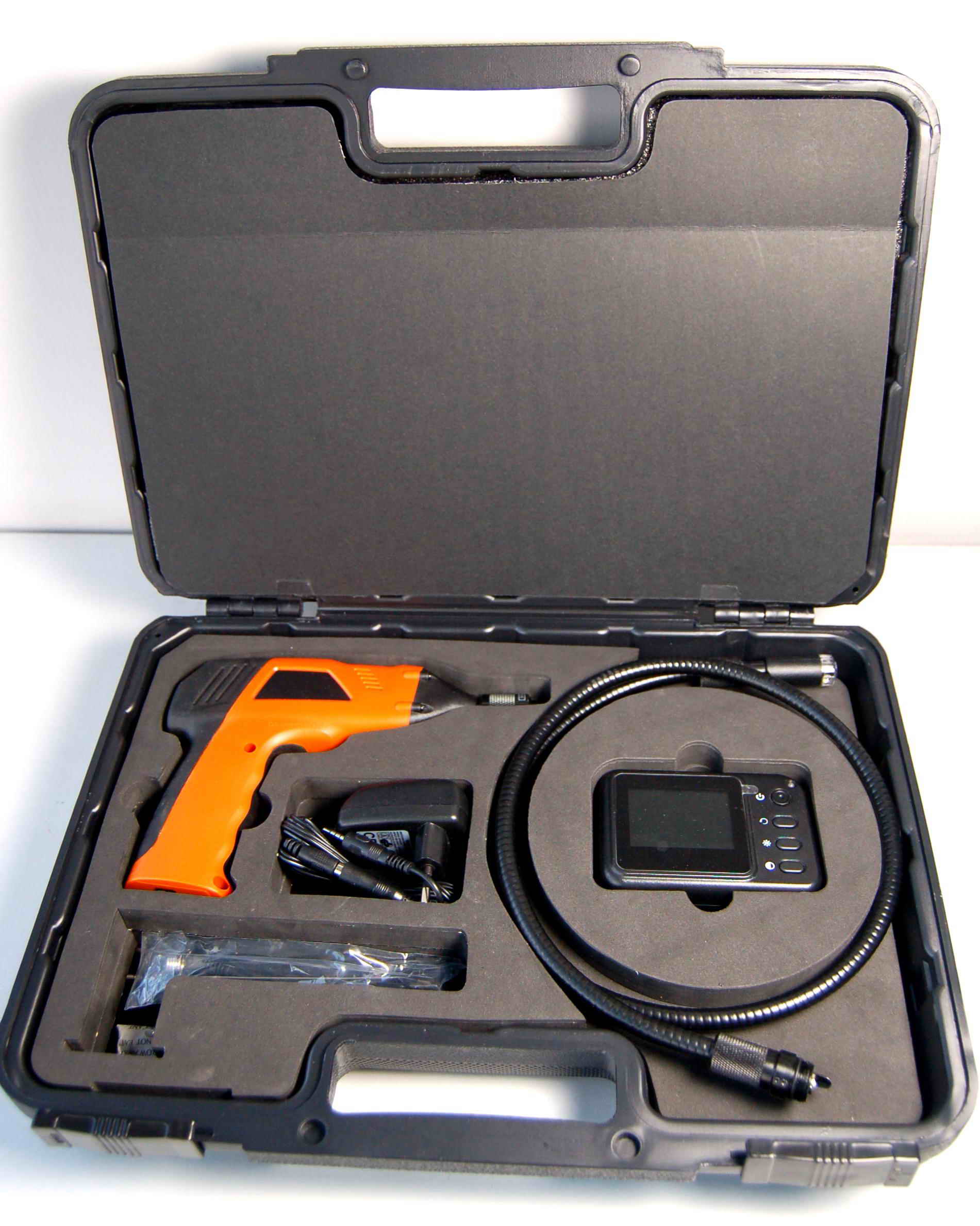

882AJ Hard Case
Item#:882Case
Now $19.95

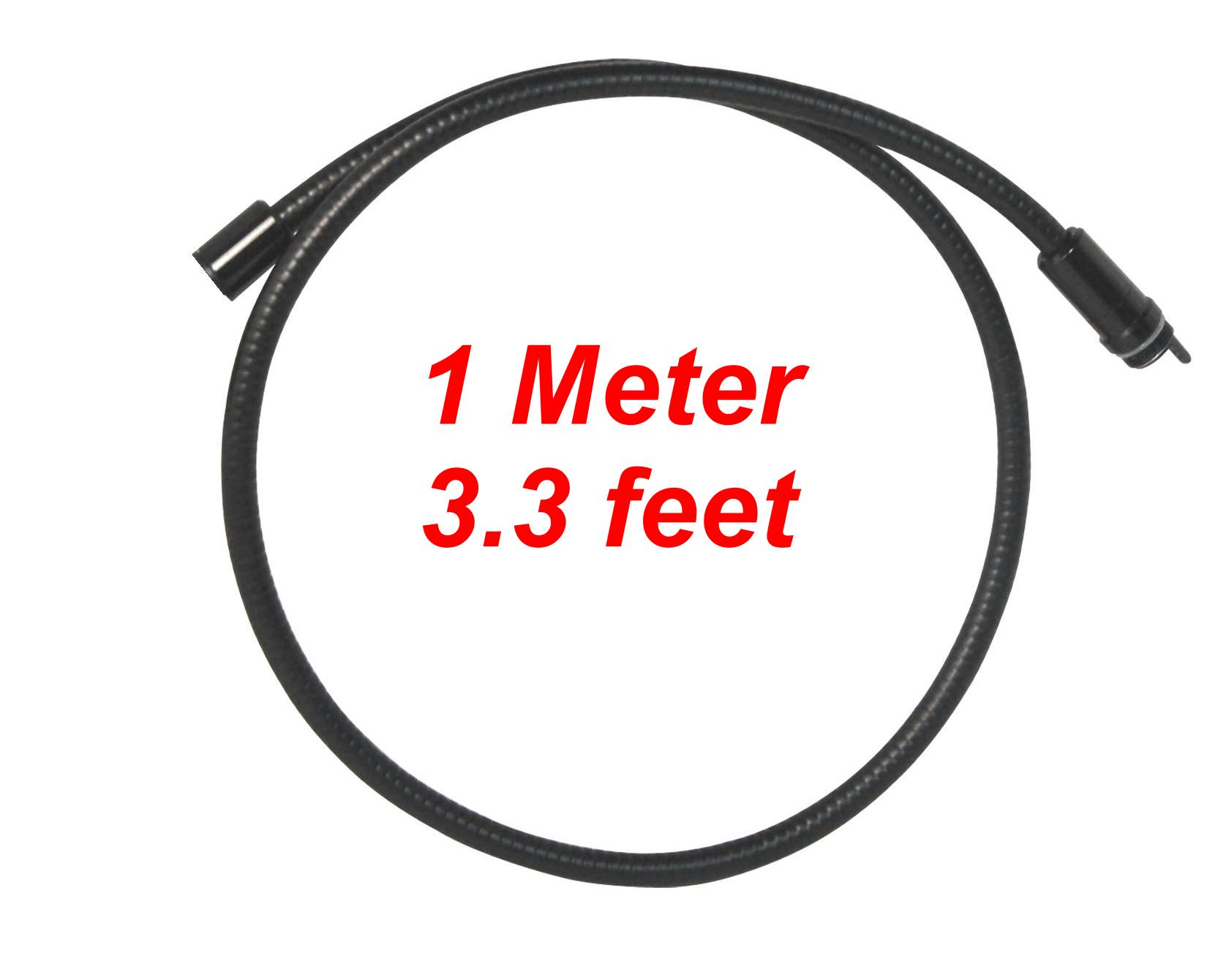

882AJ 3ft Extension Cable
Item#:882_3ft
Listed $89.99
Now $39.95
882AJ 3ft Cable w/ 17mm
camera
Item#:882_cam
Listed $139.99
Now $79.95

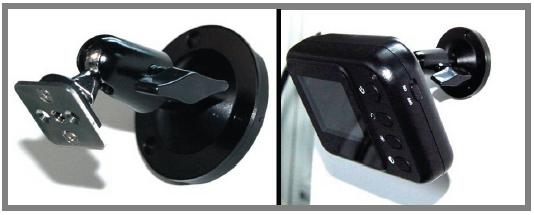

Monitor Magnetic Bracket
Item#:882_mBase
Now $19.95
7" Monitor with A/C plug
7" LCD Monitor w/ base
A/C power adapter
Remote control
(optional car lighter cable)
<Must require 110V Power
require A/C plug>
Item: #7inch_LCD_AC
Now $149.95
3.6" Monitor w/ A/C plug
3.6” LCD Monitor
A/C power adapter
(optional car lighter cable)
<Must require 110V Power
require A/C plug>
Item#:7610Z_AC
Now $104.95
Work with 882AJ Monitor, using as RV/Car backup camera system
Work with 882AJ Monitor, using as Security Camera System

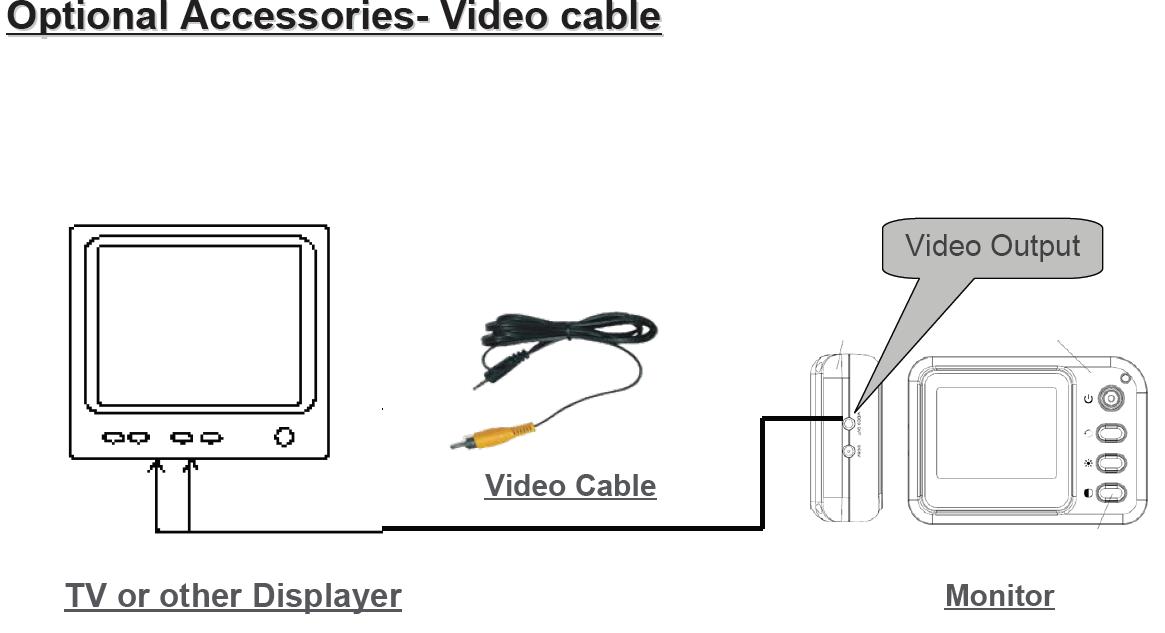

Monitor Video Cable
Item#:882_AV
Now $9.95
Car Cigarette Cables for AJ Monitor/420T
Item#:AJ_car_adapter
$12.99
Side by side size comparing - 2.5" v.s. 3.5" LCD
3.5" video recorder
Monitor
(SD card not included)
Item#:7307Ls
Now $104.95
See Live Video Demo
Following 4 videos are the actual
uncut unedited video footage,
recorded by the hand-held video
monitor.
Under-door view
|
Getting two screws in tube
|
Car inspection sample
|
Under Water view
|
|
|
|
|
|

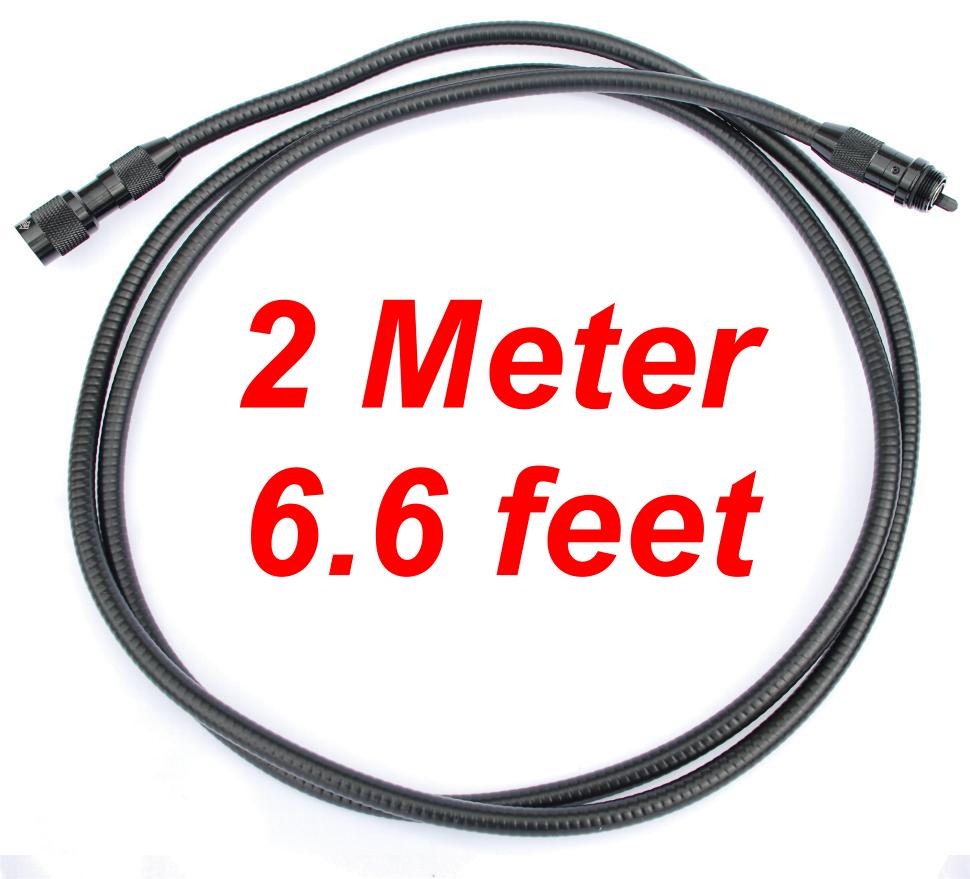

882AJ 6.6 feet Extension Cable
Item#:882_7ft
Listed $159.99
Now $59.95

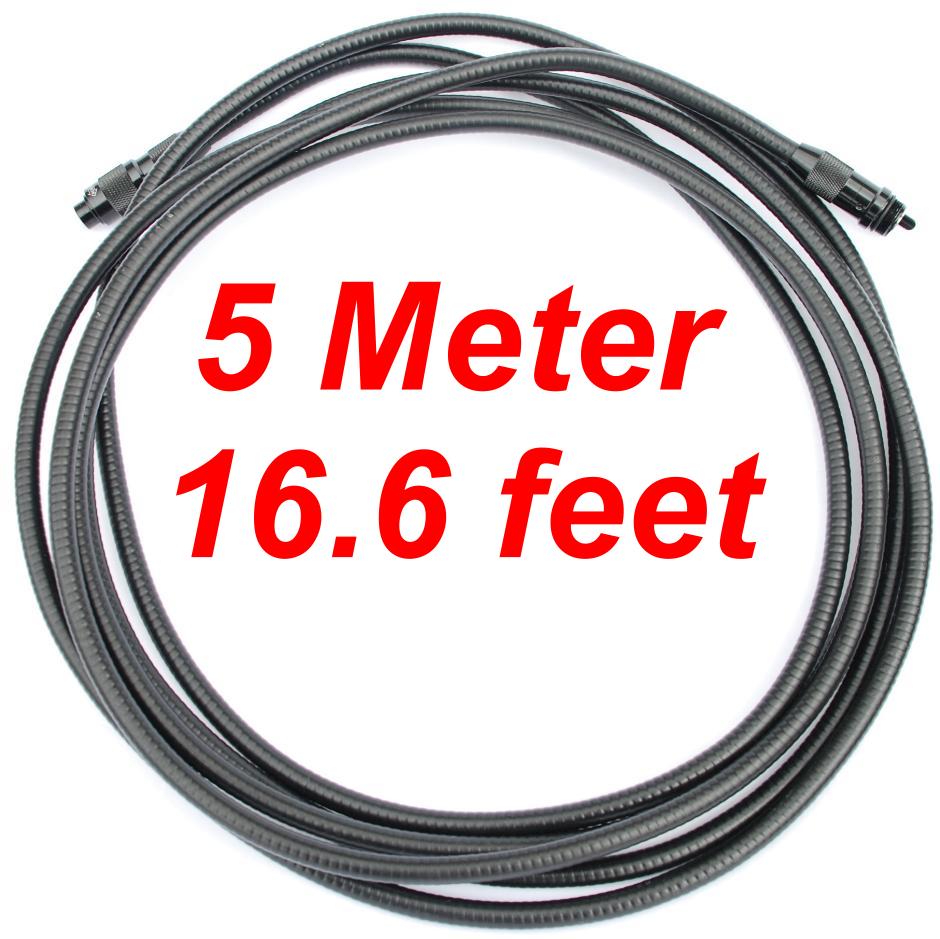

882AJ 16.6 feet Extension Cable
Item#:882_16ft
Listed $359.99
Now $109.95

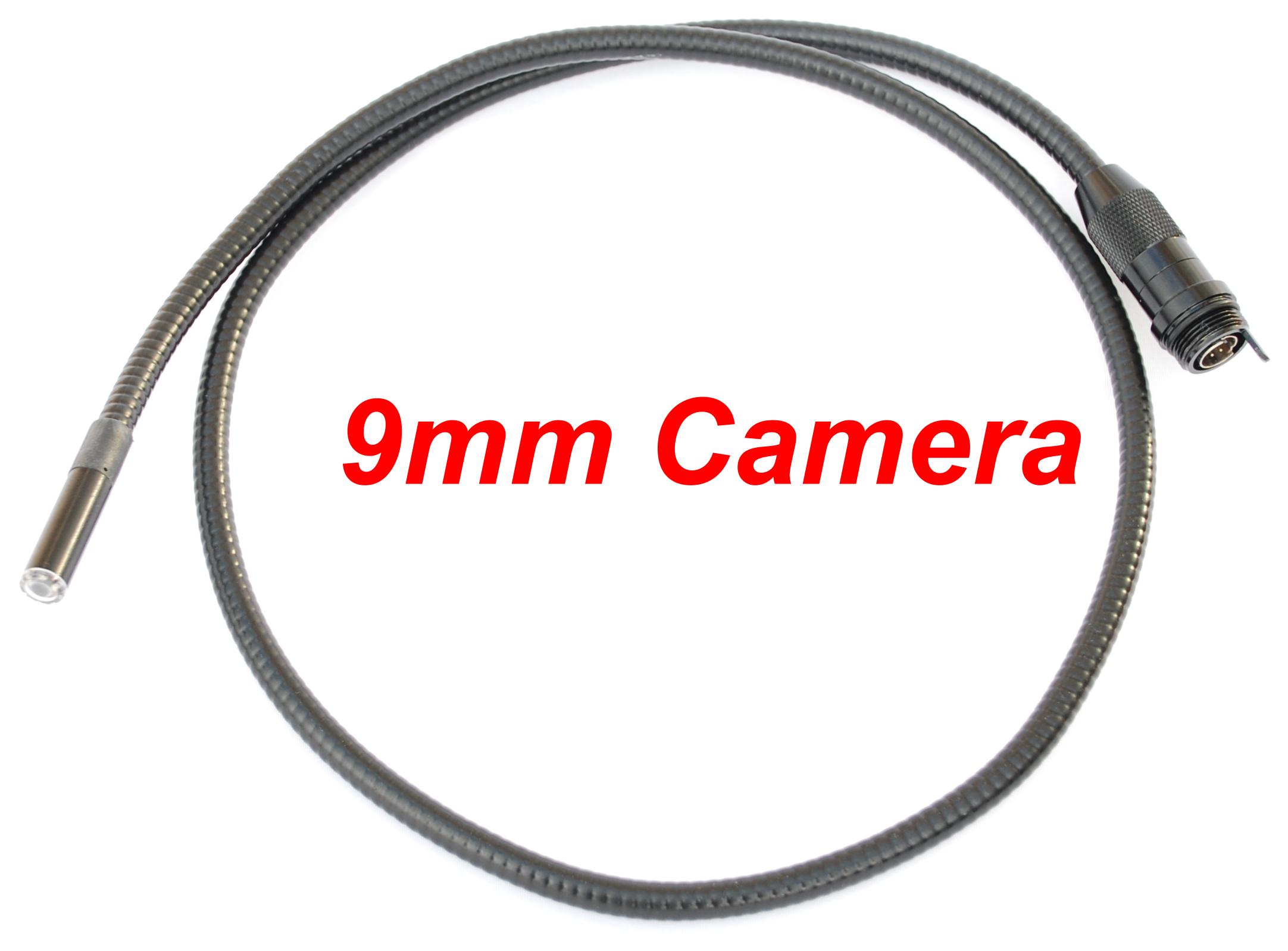

882AJ 3ft Cable w/ 9mm
camera
Item#:9mm_cam
Listed $159.99
Now $99.95
Click to
enlarge
Monitor support 4G SD card
Item#:2G_MicroSD
(2GB Mico SD Card)
$6.99
Monitor support 4G SD card
Item#:4G_MicroSD
(4GB Mico SD Card)
$16.99

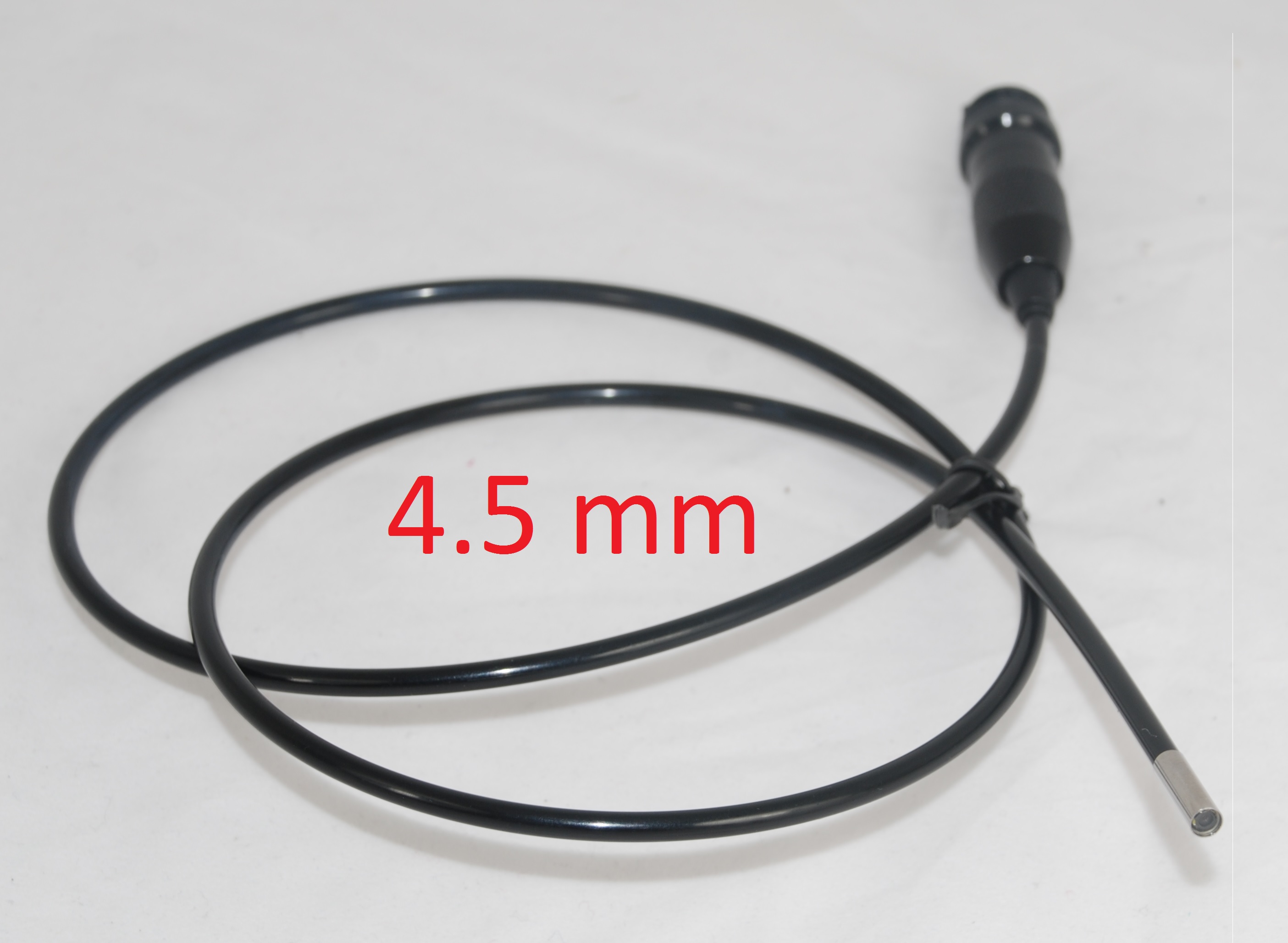

3ft Cable w/ 4.5mm camera
Item#:4.5mm_cam
Now $119.95

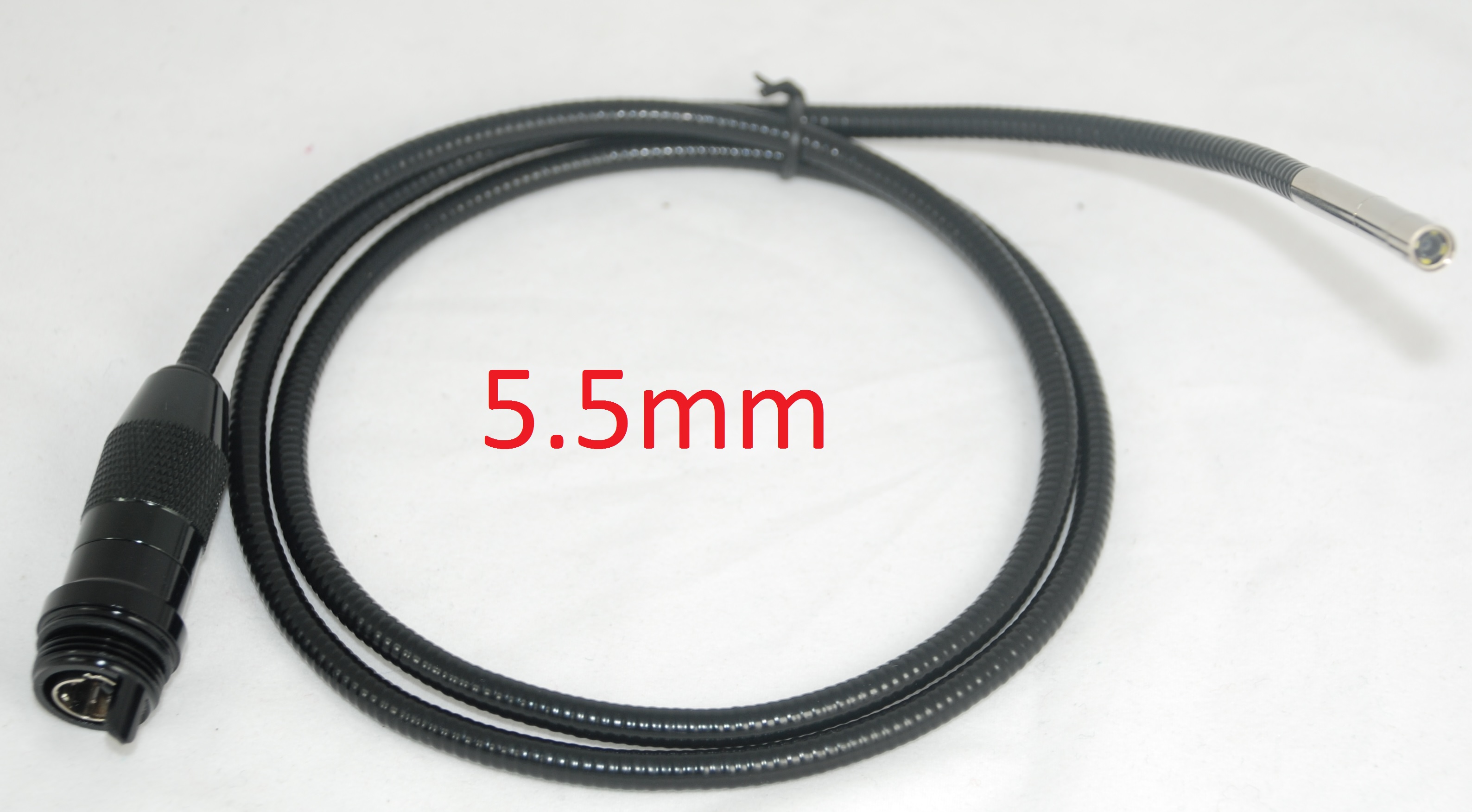

3ft Cable w/ 5.5mm camera
Item#:5.5mm_cam
Now $129.95
