Wireless Pan Tilt Internet IP
Camera 2-Way Audio
Item#: N601
Listed Price: $349.99 Now: $159.95
FEATURES:
• Remotely monitor your home, business, office, vacation property, construction site or any facility over LAN,
Intranet or Internet. No PC required.
• Pan 130° horizontally (view range 180°) and Tilt 70° vertically (view range 108°), control remotely.
• Two-Way Audio feature, allow to talk to camera site remotely, by adding powered speaker (speaker not
included)
• Alarm function with motion detection - if tripped, motion detection will send out an e-mail alert with a JPEG
image of the incident.
• 802.1 lb/c Wireless LAN connection or wired Ethernet 10 BASE-T, 100 BASE-TX
• Highly efficient Motion JPEG video streaming at up to 30 Frames-Per-Second, 4x digital zoom.
• Compact, lightweight, support desktop, wall and ceiling mount, easy to install
• One year manufactory warranty

PRODUCT DESCRIPTION:
This ultimate network dome camera will keep an eye on your home, business or school while you're away, allowing you to
remotely access its video feed with any standard web browser - anytime, anywhere.
N601 is a fully-featured surveillance system that connects to an Ethernet or wireless broadband network to provide remote
high-quality video and audio. Using the latest 802.11g wireless technology, the N601 securely communicates with maximum
wireless signal of up to 54Mbps.
The N601Wireless Security Camera has a pan, tilt, and digital zoom function that can be controlled from the Web interface.
Pan the security camera up to 130° horizontally and tilt it up to 70° vertically. The pan/tilt speed can be adjusted to your
preference. 4x digital zoom lets you remotely zoom in on all the action for close-up viewing.
Two-Way audio feature enable you remotely talk to anyone at your camera site, by adding a powered speaker to the N601.
(optional speaker not included)
Everything needed to get started is included with the N601 Wireless Network Camera. Simple installation procedures, along
with the built-in Web-based interface offer easy integration into your network environment. Powerful surveillance software is
included to enhance the monitoring and security management of the N601. You can record high quality video to your hard
drive using MPEG4 compression, and set up motion detection to trigger automatic recording and e-mail alerts. The N601
Wireless Network Camera is a cost-effective and versatile security solution for your home or business.
|
|
|
|
Detected the change, alarm is triggered, picture captured and email you.
|

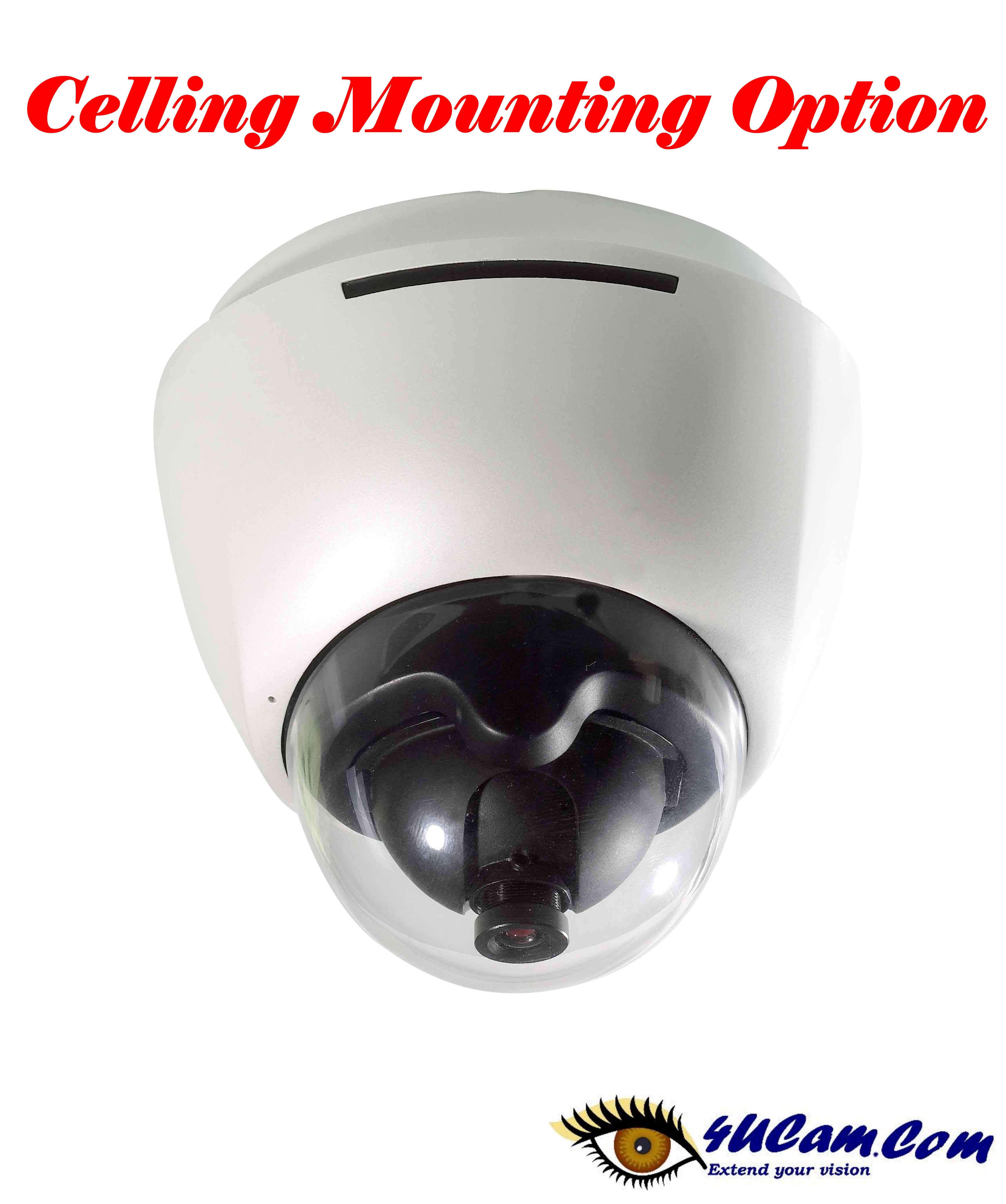

Ceiling mounting, wall mounting, or desktop
|
Pan 130° horizontally Tilt 70° vertically (view range 180°) (view range 108°)
|
|
Technical Specifications:
Camera
|
|
|
Network
|
|
|
Imaging Sensor
|
1/4-inch CMOS
|
|
Image Compression
|
MEPG-4
|
|
Total Pixels
|
310,000
|
|
Max. Image Resolution
|
640x480
|
|
View Angle
|
51°(H); 38.9°(V)
|
|
Max. Frame Rate
|
30ftps(640x480)
|
|
Remote Pan Angle
|
-65°~+65°
|
|
Simultaneous Viewers
|
8
|
|
Remote Tilt Angle
|
-60°~+10°
|
|
Network Connection
|
Ethernet(10M/100M)
|
|
Max Pan/Tilt Speed
|
P:50°/s; T:50°/s
|
|
|
|
|
Preset Locations
|
8
|
|
Wireless LAN
|
|
|
Focal Length
|
f=3.7mm
|
|
Wireless Technology
|
IEEE 802.11b/g
|
|
Min. Illumination
|
1.0Lux
|
|
Frequency
|
2400~2483MHz
|
|
| |
|
|
Transmission Speed
|
54/22/11/5.5/2/1Mbps
|
|
Audio
|
|
|
Security
|
WEP(64/128Bits)
|
|
Audio Compression
|
G.276(40,32,24,16Kbps)
|
|
|
|
|
Built-in Microphone
|
Electric Condenser Mic.
|
|
General
|
|
|
External Mic. Jack
|
Mini-Jack, 3V DC, 2.2K
|
|
Power Requirements
|
5V DC
|
|
Audio Line Output
|
Mini-Jack(Stereo), 1Vrms
|
|
Power Consumption
|
7.5W
|
|
| |
|
|
Operating Temperature
|
+14°F ~ +122°F
|
|
System Requirement
|
|
|
Storage Temperature
|
-40°F ~ +185°F
|
|
Operation System
|
Windows XP/ 2000
|
|
Operating Humidity
|
0.85
|
|
Processor
|
Intel P3 1GHz or higher
|
|
|
|
|
Memory
|
256M (Min)
|
|
|
|
|
Web Brower
|
IE 5.5 or later
|
|
|
|
|
NOTE:
|
Not compatible w/ MAC/Linux
|
|
|
|
|
|

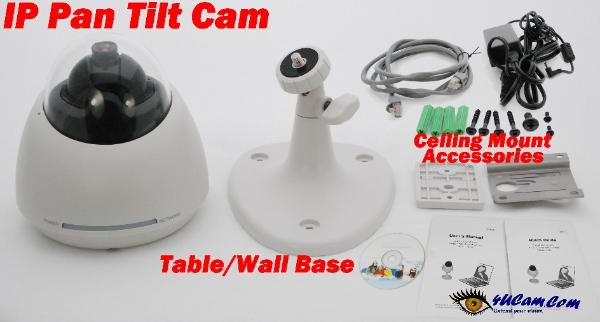

Package contains:
- One wireless network camera
- Camera Bracket
- Adapter Cable
- Network Cable
- CDROM
- User's manual

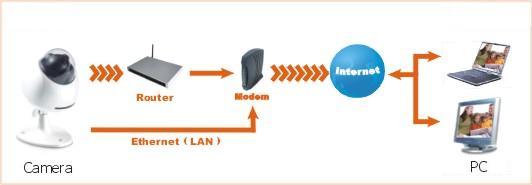

Diagrammatic:
You can click the links below to have a test drive. Please note this system physically located in China, and share
by many users. Since system only allow maximum of 8 users, you might have problem to logon sometime, and the
respond time might be slow. (User ID: guest Password: guest)
Camera One - Office Front.
Test Drive
Here is the actual user interface and screen shot of this IP Cam
Click picture for better view of the IP camera
Wi-Fi Wireless
