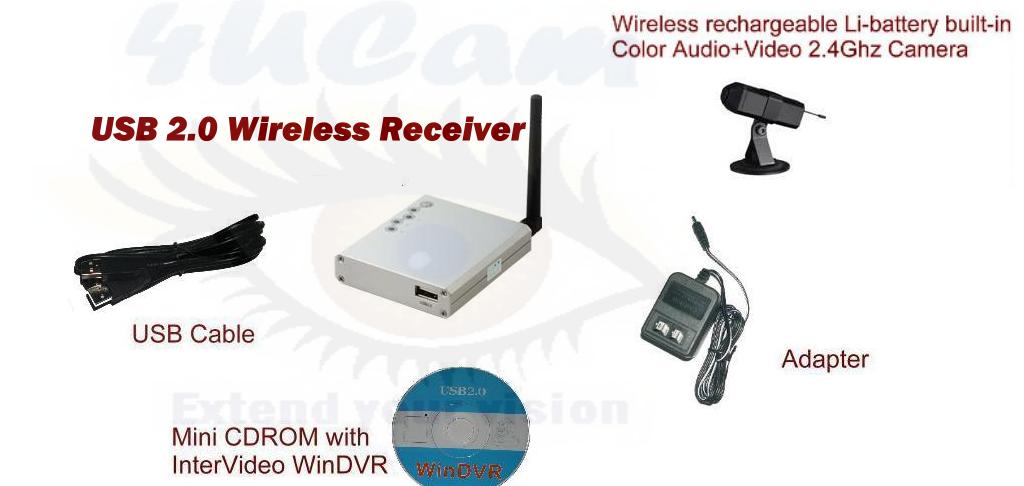

Package contains:
- One Wireless color camera with built-in rechargeable battery
- One USB wireless receiver
- One AC power adapters for camera
- One USB cable
- One CDROM
- User's manual
USB Wireless Color audio/video
built-in rechargeable battery in
tiny camera and USB Receiver
Item#: 840G
Listed $199.99 Now $119.95
This tiny (2 5/8" x 7/8" x 7/8" excluding bracket) wireless audio & video color transmitter/camera with a built-in
rechargeable battery, with night vision, is designed for SUPER PORTABILITY and ON -THE -GO convenience. The
tiny wireless camera is easily removable from the base bracket. Fully charged, this camera performs up to 4 hours
without external power supply. It includes a stand that can be mounted on the wall or ceiling. With the built-in
rechargeable battery, wireless, and tiny size camera, you can even install it on a radio remote airplane or car. See
and record the Audio/video on your computer screen. This wireless camera delivers images and audio over up to
330 feet. See a few samples of how people have fun with the tiny wireless camera.
The UBS receiver bundles with InterVideo security software which enables you to display, record real-time high
speed MPEG4 into your hard drive, play back, zoom and pan, setup alarm, scan and display up to 4 cameras
(display one at a time). The video capture function can capture both still image and full motion video.
The USB Wireless camera is not only ideal for home security, room and child monitoring, it also can be applied to
video capture, image capture, video conferencing and wireless web cam.
Observe and record activities in your home or office. Monitor your child or children, or check up on the baby-sitter.
See who is at the door or monitor specific areas such as the swimming pool, backyard, etc., conveniently from PC.
Please see how creative people have fun when they have the build-in battery wireless camera

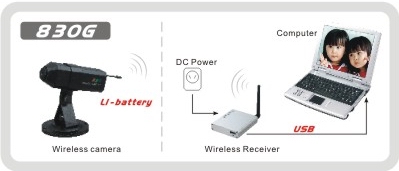

Diagrammatic:
System Requirements
Microsoft Windows 2000/2003 / Windows 2000/2003 server /Windows XP SP2/Windows Vista
Memory: upwards of 128MB
VGA graphic card upwards of 32MB
Sound card
CD-ROM drive
USB 2.0 port
Caution: the product is only suitable for PC's with USB 2.0 port. It won’t work when
connecting to PC's with USB 1.1 or previous version. If your want to connect it
with PC with USB 1.1, you should install a PCI→USB 2.0 communicator for
conversion.
Specifications:
Mini wireless camera on RC plant
|
Mini Camera on Scalextrics
|
Mini Cam on Mini Rocket
|
|
|
|
|
|
FEATURES:
- USB 2.0 output, display, record real-time high speed MPEG4 into your hard drive
- Tiny size (2 5/8" x 7/8" x 7/8" excluding bracket) camera with built-in rechargeable Li-battery inside for discreet
observation & portability.
- Built-in microphone in camera for audio monitoring
- 4 channels 2.4GHz wireless in both camera & receiver to avoid possible interference
- Channel displays support up to 4 cameras (display one at a time). (Note: additional cameras sold separately, see
accessories)
- Bundle security software enable zoom and pan, setup alarm, display, record, play back.
- Up to 330 ft. transmission distance in open space
QUALITY OF CAMERAS YOU CAN SEE HERE: Here are the actual pictures taken from this camera (830T)
|


Camera/Transmitter
|
USB Receiver
|
Imaging Sensor : CMOS CMOS Total Pixels : 628x582(PAL) ; 510x492(NTSC) Horizontal Resolution: 380 TV Lines View Angle: 60 Degree Minimum Illumination: 5 Lux Transmission Frequency: ISM 2,400~2,483 MHz Transmission Power : 10mW/CE; 2mW/FCC Modulation Type: FM Bandwidth : 18 MHz Power Supply: +5 VDC Consumption Current : 90mA Unobstructed Effective Range : 100m (Min) Dimensions(WxDxH): 28 x24 x22 mm Weight : 30 g Operating Temperature : -10 ~ +50 (Degree C) / +14 ~ +122 (Degree F) Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185 (Degree F) Operating Humidity: 85% RH
|
Power Supply: Provided by USB Port Consumption Current (Max.): 180mA Receiving Frequency: ISM 2,400MHz~2,483MHz Input VSWR: 2:1 Demodulation Type: FM Intermediate Frequency: 480MHz Frequency Stabilization: +/- 100 ppm Local Leakage at RF Input Terminal: <=-55 dBm Receiving Sensitivity: <= -85 dBm Video Output Signal Impedance: 75 ohm Video Output Signal Level: 1.0 V +/- 0.15 Vpp Video Output Signal Polarity: Negative Video S/N Ratio: 38dB Audio Output Signal Impedance: 600 ohm Audio Output Signal Level: 1.25 V +/- 0.25 Vpp / 1 kHz Audio Output Frequency Range: 250 Hz ~ 10 kHz Left Subcarrier Frequency: 6.5 MHz Unobstructed Effective Range: 100 m (Min.) Dimensions(WxLxH): 78 x 68 x 16 mm (Excluding Antenna) Weight : 200 g Operating Temperature : -10 ~ +50 (Degree C) / +14 ~ +122 (Degree F) Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185 (Degree F) Operating Humidity: 85% RH
|
|
Accessories:
Item#:usb_receiver
Listed $99.99
Now $79.95
Win DVR software with license key
Item#:USB_CDROM
Now $19.95
See link below for additional cameras.
