FEATURES:

Easy Setup! Install and use in minutes
Large 2.5" color LCD-TFT with 480 X 234 resolution receiver provides crisp images
One Rechargeable Li-battery in receiver for portable monitoring
Night Vision (Effective Range: 16 feet)
Including one earphone for receiver
Built-in microphone in camera and speaker in receiver for audio monitoring
Easily connects to a TV, VCR with A/V output on receiver (video cable included)
2.4GHz wireless in both camera & monitor
Channel switch in Monitor support viewing up to 4 cameras. (Note: additional cameras
sold separately, see accessories)
Up to 330 ft. transmission distance in open space

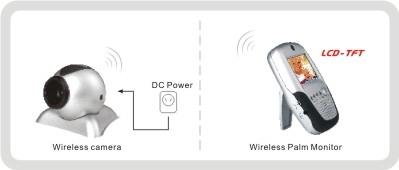

Diagrammatic:

Specifications:
Camera/Transmitter (822T)
Imaging Sensor : CMOS
CMOS Total Pixels : 628x582(PAL) ; 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 60 Degree
Minimum Illumination: 0 Lux
Transmission Frequency: ISM 2,400~2,483 MHz
Transmission Power : 10mW/CE; 2mW/FCC
Modulation Type: FM
Bandwidth : 18 MHz
Power Supply: +8 VDC
Consumption Current : 90mA(IR OFF) & 170mA(IR ON)
Unobstructed Effective Range : 100m (Min)
Night Vision Range: 5m
Dimensions(W x L x H): 89 x 92 x 67 mm
Weight : 15oz
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~ +122 (Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185 (Degree F)
Operating Humidity: 85% RH

Monitor/Receiver
LCD Size : 2.5 inch TFT
LCD Resolution: 480 x 234
Receiving Frequency: ISM 2,400MHz~2,483MHz
Intermediate Frequency: 480MHz
Demodulation Type: FM
Receiving Sensitivity: <= -85dBm
Power Supply: +5 VDC
Consumption Current : 700mA
Dimensions(WxDxH): 80 x 38 x 130 mm (Excluding Antenna)
Weight : 250 g
Operating Temperature : 0 ~ +50 (Degree C) / +32 ~ +122 (Degree F)
Storage Temperature: -20 ~ +80 (Degree C) / -4 ~ +176 (Degree F)
Operating Humidity: 85% RH

Package contains:

One Wireless color infrared LEDs camera
One hand held monitor with 2.5-inch LCD TFT screen
Two AC power adapters
One Lithium Battery for receiver
One video cable
One Earphone
User's manual

Accessories:

Additional camera with AC power adapter.
