4.3" LCD Touch Screen GPS +
WIRED Backup license Camera
w/Bluetooth System
Item#: GPS4_8905
Listed Price: $379.99
Now $209.95
PRODUCT DESCRIPTION:
GPS and Backup Camera System with 4.3” touch screen GPS navigation system and WIRED backup camera system in
one unit, plus bluetooth, FM transmit, AV input, video, music, photo and ebook reader.
city center as a destination, and detours around areas you wish to avoid. "Text-to-Speech" technology clearly city center
as a destination, and detours around areas you wish to avoid. "Text-to-Speech" technology clearly pronounces all street
names over the built-in speaker to guide you to your destination without the need to take your eyes off the road or fumble
with a map. A USB cable connects the unit to your PC for updating music and pictures, or charging the battery. SD card
slot, including a 2 GB SD card, allows the navigator to double as a portable MP3 player or picture viewer. The unit can be
powered by an adapter that plugs into a car cigarette lighter, or for portability, via its built-in rechargeable Li-Ion battery
that provides about 1 hours of operation on an 8-hour charge. The display's wireless cradle mounts without tools using a
suction fastener. Bluetooth function will make you totally hand-free when you answer the phone.
phone.
Backup Camera Mode: The camera are powered by the cables that power your vehicle's reverse lights. When you put
your vehicle into reverse gear, your reversing lights turn on and power is sent to the camera and, sending out a video
signal, the GPS unit then auto-switches over to the camera view.
Bluetooth Mode: Unit will make you totally hand-free when you answer the phone, whenever a call is
coming, no matter you're navigating, listening music or backing up, the unit will switch to Bluetooth mode automatically,
after you hand up, the unit will switch back to the previous mode.
Multi language support: English, French, Spanish and more. Additional European and other Maps available.

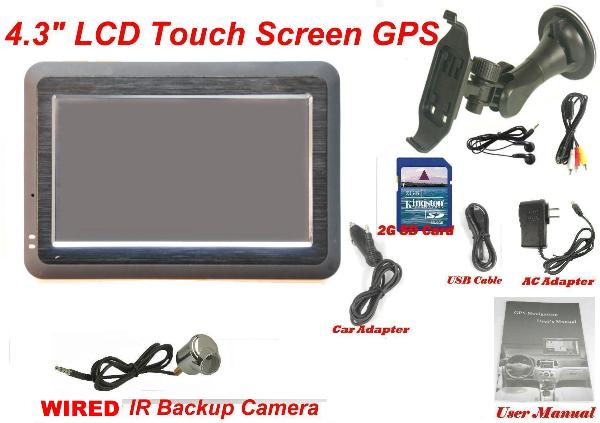

Package contains:
- 4.3” GPS LCD Touch Screen
- 8905T WIRED Backup Camera kids
- GPS software on 2GB SD card
- Secure Window Mount Holder
- USB cable, AV cable, earphone
- AC Adapter
- Cigarette lighter power adapter
- User Manual
Navigator GPS unit
|
Camera (8905T)
|
Screen 4.3" TFT Touch Screen Resolution 480 × 272 Dimensions 4 4/3" * 1/2" * 3 1/4" (W x D x H) Screen size 3 3/4" x 2 1/8" Weight 100g CPU SIRFAtlas4 530MHz GPS chip SiRF Star III System configuration Win CE. Net 5.0 Core Format supported MP4, DIVX, XVID, WMV, ASF, AVI; WMA9, MP3, WAV, JPG, GIF, BMP, TXT Antenna Embedded Memory 128M NAND FLASH 64M Capacity of SD card 32M ~ 8G Capacity of lithium battery 450 mAh Operating time of lithium battery 1 hours/100hr sleep Car-borne power supply +12 car/5V USB interface Channel 20 Hot Start Time <1s Video signal output impedance 1.1±0.2Vpp@75 ohm Video output polarity Negative Modulation type FM Maximum power consumption during operation 250 mA Operating temperature -10ºC ~ +60ºC /+14ºF ~ +132ºF Operating humidity (maximum) <85% RH
|
Imaging Sensor CMOS CMOS Total Pixels 656x492 (NTSC) Minimum Illumination 0 Lux Transmission Power 10mW/CE; 2mW/FCC Modulation Type FM Bandwidth 18 MHz Power Supply + 12V DC Consumption Current (Max.) 220mA Horizontal View Angle 100 Degrees Unobstructed Effective Range 70m [Min.] Dimensions (W x D x H) 215 x 33 x 33(mm) Weight [About) 88g Operating Temperature -10°C/+50°C or+14°F/122°F Operating Humidity 85% RH
|
|

Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet: $9.95 20 feet: $18.95 40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
Accessories - additional camera and more:
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
Backup light IR Cam+accessoires
Item#:8908T
Listed $129.99
Now $69.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
|
|
|
|
|
|
|
|
|
|
GPS Navigation
|
Long range wireless cam
|
Hand-free Bluetooth
|
Transmit FM to car radio
|
Video player
|
Music player
|
Accept AV input
|
Photo Browser
|
eBook reader
|
|
Key Features:
- Long signal range WIRED round backup camera,
waterproof, day&night backup camera
- 110 degree horizontal view angle
- SIRFAtlas530MHZ CPU
- 480x272 Pixels displayer with touched screen and key-
press operate.
- 128MB SDRAM & 128M Nand Flash memory
- Windows CE5.0 operation system
- Integrated with newest SiRF Star III
- GPS module, which can receive up to 20 satellite channels
- 2Whi-Fi speaker built in
- Rechargeable lithium battery stand up to 3hrs(550 hours
in sleeping status)
- Navigation software and multimedia
- data store in 2G SD/MMC memory card
Other features:
Music player support: mp3,wav,mid
Movie player support: asf, avi,mp4,wmv
Picture browser support: BMP,JPG,PNG,FIG
eBook reader support: txt
FM Transmitter:
Use your car FM radio to receive the sound from the GPS
device (including guide prompting voice, calls in bluetooth
mode,Mp3/Mp4 music), adjust the volume as you like, enable
driver get every prompting details even in noisy environment.
Audio/Video-Input Connector:
This function make the device as a LCD monitor, can connect
to DVD Player or video game
Software
USA & Canada maps Mar. 2012 (optional European maps,
Australia & New Zealand maps)
Text-to-Speech turn-by-ture voice guide, multiple language(US
English/UK English/French/German/Spanish...)
All-in-one cockpit screen show all the traffic information,
including your speed, name of current/next street, distance/time
left to the destination, estimated arriving time, distance left to
the next turn, lane information, road information, POI
information...
SMART ZOOM will automatically adjust zoom in or out and
viewing angle to give you the optimal view in any situation.
Quick setting icon for 2D/3D maps switch, detour, cursor,
day/night mode switch, volume adjustment, 3D building on/off,
vehicle select, track logs record.
Automatic and instant route re-calculation when a wrong turn is
made Multi-destination of a route available
POIs(Point of Interest) with phone number, including gas
stations, parking, restaurants, ATMs, hospital and more.
6 vehicle modes(car, taxi, bus, emergency, pedestrian, bicycle)
Speed alarm, Day & night mode display
|
|
|
GPS Navigation Mode
|
Bluetooth Mode
|
|
|
|
Backup Camera Day View
|
Backup Camera Night View
|
|
GPS5_receiver
Item#:GPS5_receiver
Listed $129.99
Now $79.95
26 feet wire for GPS8909_wire
Item#: GPS8909_Wire
Now $19.95
Only suggested when monitor and transmitter
over 20 feet away. Or too much blockages
between the camera and the GPS.
15 feet hard-wired-kit for GPS4
&5_8909
Item#: GPS45_hardwire_kit
Now $24.95
This will convert the wireless cam to wired.
Click picture for detail connection information.
Click picture for detail
connection information.
GPS_receiver2
Item#:GPS_receiver2
Listed $109.99
Now $59.95
See GPS+backup cam demo (4.3" model software might be different )
