7" LCD GPS + Wireless Backup
Camera + Parking Sensor System
Item#: GPS7_PSS
Listed Price: $699.99
Now $349.95
Full Color
Day and Night
GPS and Wireless Backup Camera with Parking Sensor Radar all in one system. 7” touch screen GPS navigation
system, plus wireless backup camera system, plus parking sensor radar system all in one central monitor display.

GPS mode: The unit delivers reliable navigation with pre-loaded 2D or 3D maps for all 50 states and Canada,
points of interest, Text-to-Speech voice guide, and automatically adjusts for day or night viewing. The touch-
screen permits easy input for stored addresses, and lets you plan your route by entering an address, an
intersection, a point of interest, or a city center as a destination, and detours around areas you wish to avoid.
"Text-to-Speech" technology clearly pronounces all street names over the built-in speaker to guide you to your
destination without the need to take your eyes off the road or fumble with a map. A USB cable connects the unit
to your PC for updating music and pictures, or charging the battery. SD card slot, including a 2 GB SD card,
allows the navigator to double as a portable MP3 player or picture viewer. The unit can be powered by an
adapter that plugs into a car cigarette lighter, or for portability, via its built-in rechargeable Li-Ion battery that
provides about 1 hours of operation on an 8-hour charge. The display's wireless cradle mounts without tools
using a suction fastener. Bluetooth function will make you totally hand-free when you answer the phone.

Backup Camera Mode: The camera and transmitter are powered by the cables that power your vehicle's
reverse lights. When you put your vehicle into reverse gear, your reversing lights turn on and power is sent to
the camera and the transmitter, sending out a video signal. The GPS unit then automatically switches over to
the camera view. When your take your vehicle out of reverse gear, the reverse lights go out and the camera
stops sending an image. At the same time the unit will stop showing the camera's image and return to the
previous function.

Parking Sensor Radar: This Reverse Parking Sensor Kits comes with 4 In-Bumper Ultrasonic Sensors. The
reverse sensor get power from the reverse lights. Once installed, the system will automatically turns on when
you put your car into reverse. If an object is detected while backing up, the system omits audible beeps, as well
as shows the distance on the on-dash display telling you how far you are from an object. The faster the beep,
the closer you are. If you are too close to an object, the beep sounds like an alarm.

Multi language support: English, French and Spanish. Additional European and other Maps click here.
Package contains:
  • 7 GPS TFT-LCD Touch Screen
  • 9905T IR Backup Camera
  • Parking Sensor Radar kids
  • Wireless transmitter box
  • Wireless Receiver
  • Secure Window Mount Holder
  • USB cable
  • Cigarette lighter power adapter
  • User Manual
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
System with backup sensor will work well for car/RV/Truck under 30 feet long, or extension wire might require to move the transmitter to
closer to the front.

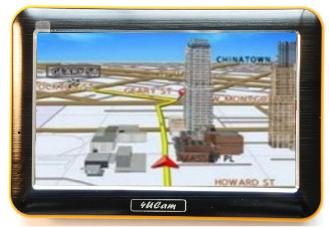

GPS View when driving forward
Automatically activating a wireless rearview camera
when your vehicle is shifted to reverse.

The camera flash mount gives factory installation
looking and provide a clear view of what's behind your
car on the 5" color LCD.

Reverse 4 Sensor Parking System omits audible
beeps and on-dash display telling you how far you
are from an object. It can help you avoid those costly
backup collisions that happen so easily.
Integrated Backup Camera System Features:
Navigator + wireless receiving bracket
Camera/Transmitter (9905T)
Screen          7" TFT Touch Screen
Resolution    800 × 480
Dimensions  7.2” x 4.75” x 0.7”
Screen size   6" x 3.5"
Weight          1 lb
CPU              SIRFAtlas4 530MHz
GPS chip      SiRF Star III
System configuration        Win CE. Net 5.0 Core
Format supported    MP4, DIVX, XVID, WMV, ASF, AVI;
Antenna        Embedded
Memory        128M
NAND FLASH        64M
Capacity of SD card        32M ~ 8G
Capacity of lithium battery        450 mAh
Operating time of lithium battery   1 hours/100hr sleep
Car-borne power supply  +12 car/5V USB interface
Channel     20
Hot Start Time  <2s
Video signal output impedance    1.1±0.2Vpp@75 ohm
Video output polarity        Negative
Modulation type        FM
Maximum power consumption during operation  250 mA
Operating temperature        -10ºC ~ +60ºC /+14ºF ~
Operating humidity (maximum)        <85% RH
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        120 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH

Parking Radar System(T4060)
Power        +12/+24 Vdc
Maximum power consumption of current        280 mA
Maximum power consumption (including output to
camera)        350 mA
Number of sensors        4
Standard alarm level        Safety, caution, danger, stop
Alarm sound type        buzz
dimensions (W×D×H) (mm)        99×60×20
Approx. weight        60g (excluding sensors)
See product demonstration
(GPS w/ backup only, radar demo will come later)
Click this link to see it on
or click to play the video here
This product has been selected by G4TV as
"latest must-have tech gadgets" feature product
Click this link to see it on G4TV, or click video here
