Wireless Backup Round Camera
and 7" LCD Receiver
Item#: 8907AV
Listed Price: $299.99
Now $189.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:
This 7" TFT LCD Widescreen with built-in wireless receiver, just plug into cigarette lighter plug, no additional wiring, no
additional wireless receiver hanging on your dashboard. The 1" thin LCD sits on the fully adjustable base allowing you to
aim the screen in almost any direction. No screw, no tapping, suction cup connect onto your front windshield.

•        2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install.
•        Build-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)
•        Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)
•        Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
•        4-Channel receiver can view up to 4 cameras
•        7” Color TFT-LCD Monitor with built-in receiver, one RCA A/V input for your DVD or game console.
•        Waterproof, heavy-duty Round IR camera provides flexible mount location and position
•        For use with 12V DC electrical systems
•        Installation is easy with the elimination of wires from camera to monitor
•        Comes complete with everything you need to install
•        Easy to read English installation manual

Why just use you monitor in your car? You can use it in-doors as a Baby Monitor, Security Monitor, or just another flat
panel monitor for your DVD or game console at home. Just add the optional A/C adapter for your 7" monitor. This monitor
can view all of our wireless camera we carry. You can add an A/C adapter, and other wireless camera from our
accessories
page.









Specifications:
Camera/Transmitter (8907T)
Monitor/Receiver (7109)
Imaging Sensor        CMOS
CMOS Total Pixels        720x480 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        250mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        80m [Min.]
Dimensions (W x D x H)        44 x 42 x 38(mm)
Weight [About)        65g
Operating Temperature        -10°C/+50°C or+14°F/122°
F
Operating Humidity        85% RH
LCD Resolution               480 x 342
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm,
S/N>38dB
Audio Output Signal Level        3.0V +/- 1V~ @600ohm
Power Supply        + 12/24 V DC
Consumption Current (Max.)        900mA
Unobstructed Effective Range        100(Min.)
Dimensions (W x D x H)        196 x 27 x 127mm
Weight [About)        474 g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

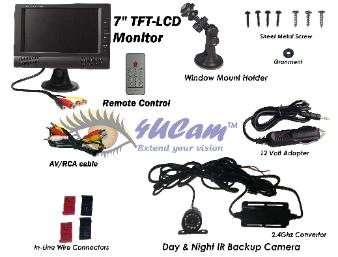

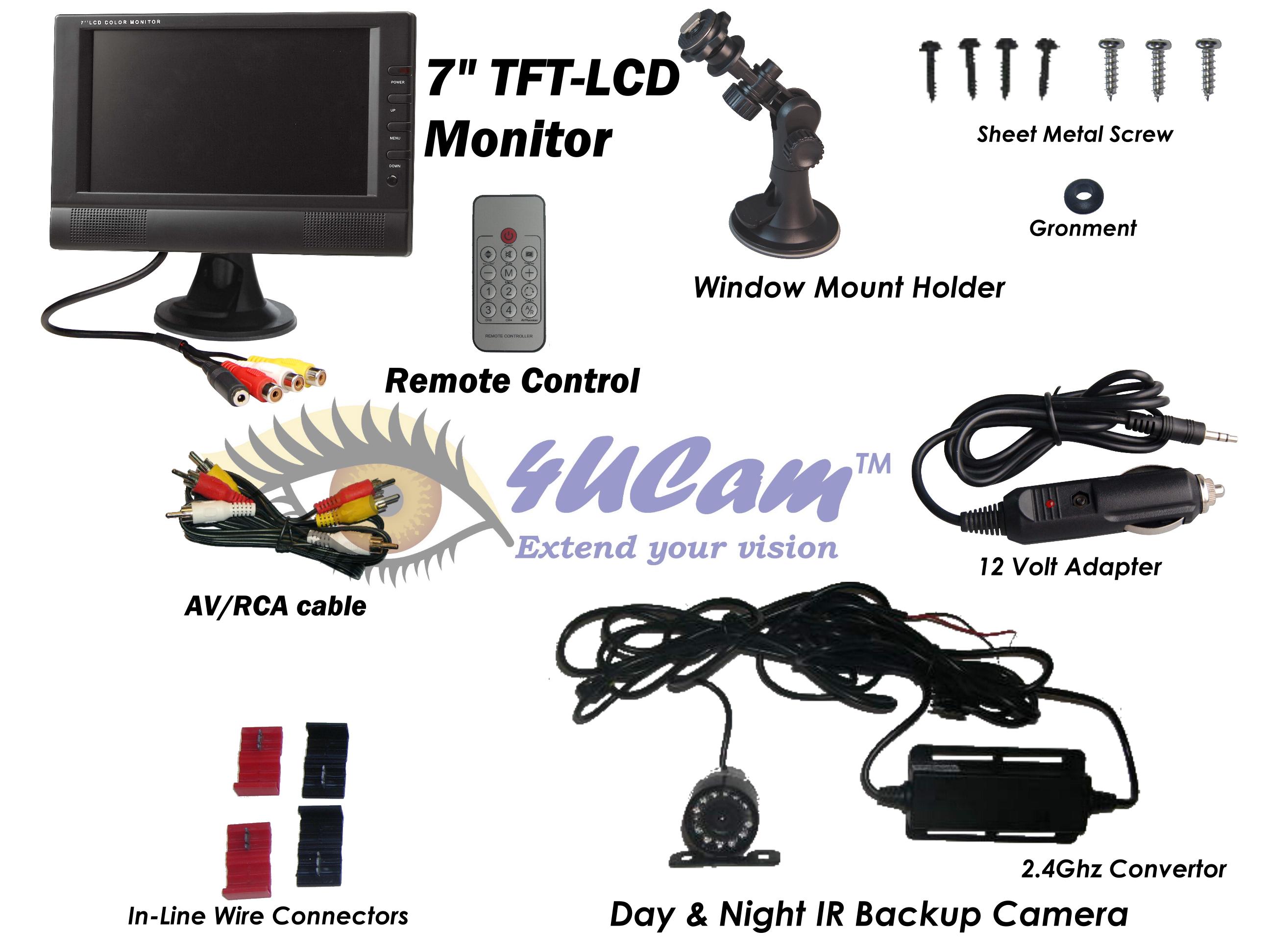

Package contains:
  • 8907T Back Up Camera
  • 7109 7 TFT-LCD Monitor
  • Wireless Transmitter/Convertor
  • Cigarette Lighter Adapter For Monitor
  • Monitor Remote Control
  • Mount Holder
  • AV/RCA cable
contains
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
Clip-on extension cord between 8907T/8908T cam and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter
over 30 feet away. Click picture for detail wire
length information.
accessories
Accessories - additional camera and more:
A/C adapter for 7" Monitor
Item#:7-inch_AC
$14.99
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
Extended 2m Antenna:
-for 9901T or 7109 7"LCD (AV model)
Item#:9901A
Listed $29.99
Now $24.95
Table stand or wall mount
Item: #7"LCD_table_stand
$19.95
See Live Demo of 8909AV


Video is the live demo of 8909AV system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Car wire Harness for 7" Monitor
Item#:7-inch_wire_harness
$9.99
Car Cigarette Lighter Cables for 7" Monitor
Item#:7-inch_car_adapter
$12.99
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99
Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99
Now $64.95
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html
See our customer's installation samples:
www.4ucam.com/custom_install.html
<When camera and monitor over 30 feet, please add the extension cord>
cord
Antenna Extension cord:
-for 9901T, 9901A, 7109 7"LCD (AV model), 7610 3.6" LCD (AZ model)
item#: antenna_cord_10ft Now $14.95       antenna_cord_20ft Now $24.95
Night Vision, full rotation, and sun-blocking feature help to see better:
Item: #7"LCD_dash_mount
$24.95
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
Anti Glare Sun Shade Visor
(click to see more detail)
Item#: 7inch_visor
Now: $14.99
Wireless receiver with
video output
Item#:B_receiver
$64.99
33 feet video cable for B_receiver
Item#:v
ideo_cable_33ft
$24.99
