Wireless Color Car Backup Camera
and Receiver for GPS System
Item#: 8909BJ
Listed Price: $139.99
Now $89.95
Full Color
Indoor
Day and Night
specification
PRODUCT DESCRIPTION:

If you already have a video display in you car console with A/V input, why add another monitor if you can utilize it.
This wireless backup camera receiver set is designed for connecting to an existing video display unit with A/V inputs. i.e.
GPS monitor, DVD monitor, or laptop with an A/V input card. It will enable your monitor to function as Back-up Camera
System.
(If you want a "GPS+Backup Camera System" in one unit, please see 8909PC or 8907PC)
(If you have in-dash built-in GPS, and want to add a wireless camera see
8909B)

  • Wireless Back-Up Camera System allows you to see what is behind you before you back up
  • 2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install
  • Build-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)
  • Mirror image camera designed for better backup viewing
  • Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)
  • Night Vision Camera mounts to your existing license plate holder and provides wide angle viewing
  • Avoid accidents and injuries in your Car, Van, SUV, RV, or delivery vehicle
  • Comes complete with everything you need to install
  • For use with 12V DC electrical systems
  • Installation is easy with the elimination of wires from camera to monitor
  • Easy to read English installation manual
Camera/Transmitter (8909T)
Receiver (704BJ)
Imaging Sensor        CMOS
CMOS Total Pixels        656x492 (NTSC)
Minimum Illumination        0 Lux
Transmission Frequency        ISM 2,400—2,483 Mhz
Transmission Power        10mW/CE; 2mW/FCC
Modulation Type        FM
Bandwidth        18 MHz
Power Supply        + 12V DC
Consumption Current (Max.)        220mA
Horizontal View Angle        100 Degrees
Unobstructed Effective Range        70m [Min.]
Dimensions (W x D x H)        215 x 33 x 33(mm)
Weight [About)        88g
Operating Temperature        -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
Receiving Frequency        ISM 2,400MHz—2,483MHz
Intermediate Frequency        480 MHz
Demodulation Type        FM
Antenna        50 ohm SMA
Receiving Sensitivity        <= -85 dBm
Video Output Signal Level 1 V +/- 0.2V~ @75ohm,
S/N>38dBVideo connectors  2.5mm and Male RCA video
Power Supply        + 12 V DC
Consumption Current (Max.)        250mA
Unobstructed Effective Range        50(Min.)
Dimensions (W x D x H)        116 x 41 x 21mm
Weight (About)        60 g
Operating Temperature     -10°C/+50°C or+14°F/122°F
Operating Humidity        85% RH
features

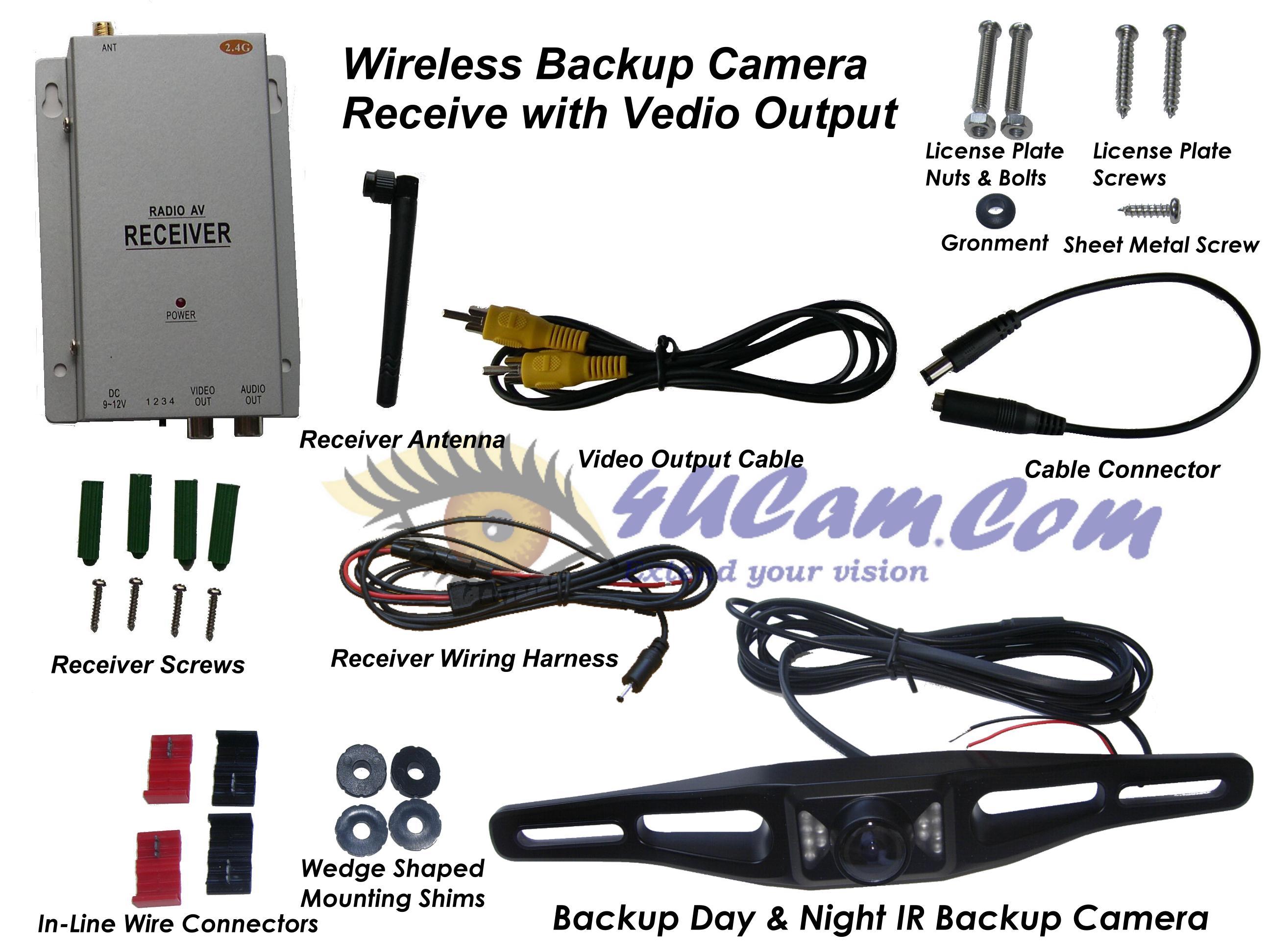

Package contains:
  • 8909T Back Up Camera
  • Wireless Receiver
  • RCA Video Cable
  • Receiver Cigarette Power Adapter
  • Installation manual
contains
Night Vision feature help to see better at night
* USA Get It Faster!!!
* Add Additional Camera
* International Order!
IR camera Night view
Camera w/o IR view
Sun Blocking Feature
All rights reserved.
accessories
Accessories - additional camera and more:
Add additional in-door/out-door wireless camera in our accessories page
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
See Live Demo of 8909AZ


Video is the live demo of 8909AZ system.
Main Camera (8909T) was installed on the
license plate location on a Toyota Sienna
Van. 2nd camera (without night vision) in
front location. Monitor sat on the dash
board in front.
Ultra IR Car Cam Video/Audio
Specification:
Item#:823T
Listed $109.99
Now $84.95
Channel#
Magnet based rechargeable outdoor camera
Specification:
Item#:842T
Listed $89.99
Now $64.95
If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case.
Please see our demo test case page:
www.4ucam.com/backup_camera_tests.html
See our customer's installation samples: www.4ucam.com/custom_install.html
Female RCA to Male
3.5mm connector
Item#F_RCA2_35mm
$9.99
Metal Framed Wireless License Plate
Cam slim metal frame with wired option
Item#:8912TW   (channel #4 only)
Now $84.95
4 Pin extension cord between 8909TJ camera and the transmitter
10 feet:
$9.95                                  20 feet: $18.95                              40 feet: $34.95
Only suggested when monitor and transmitter over 20 feet away.
Click picture for detail wire length information.
GPS7_receiver
Item#:GPS5_receiver
Listed $129.99
Now $79.95
Cigarette lighter power adapter
for 4-5" GPS
Item#:GPS45_cig_adapter
Now $14.95

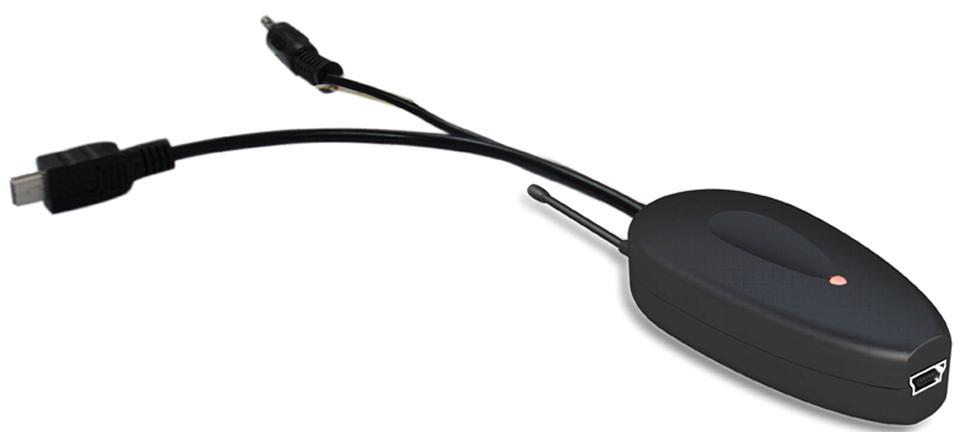

GPS_receiver2
Item#:GPS_receiver2
Listed $109.99
Now $59.95
2.5mm Female to Male
RCA connector
Item#F25mm_mRCA
$9.99
Specifications:
If you plan to have the camera on the back
of the 5th wheel/Trailer, please use the
following round camera set instead
<suggest use 8907BJ below when camera
over 20 ft away from monitor>
Wireless Round Backup Camera
and Receiver for GPS System
Item#: 8907BJ
Listed: $159.99 Now $99.95
If you have in-dash GPS, and want to add the wireless
camera onto it. So your in-dash GPS can be used as display
for the backup camera, please select one of the following
two items.
Wireless Round Backup Camera
and Receiver for GPS System
Item#: 8907B
Listed Price: $159.99
Now $114.95
Wireless Color Car Backup Camera
and Receiver for GPS System
Item#: 8909B
Listed Price: $139.99 Now $99.95
Female RCA to Male
2.5mm connector
Item#F_RCA2_
25mm
$9.99
