Wireless Pan Tilt Internet IP Camera
Digital Zoom Audio, Night Vision
Item#: N2805
Listed Price: $299.99  Now: $159.95
features
specification
contains
FEATURES:
•
Remotely monitor your home, business, office, vacation property, construction site or any facility over LAN,
Intranet or Internet. No PC required. Support up to 4 remote connection.
•        Alarm function with
motion detection - if tripped, send out an e-mail alert with a JPEG image, or record to
local SD Card (SD card not included).
•
Wi-Fi wireless 802.11g, or LAN connection of Ethernet 10 BASE-T, 100 BASE-TX,
•
Two-Way Audio feature, allow to talk to camera site remotely, by adding powered speaker (speaker not
included)
•        Highly efficient Motion JPEG video streaming at up to 30 Frames-Per-Second
•
Pan 270° horizontally and tilt 120° vertically, control remotely.
•        Compact, lightweight,
IR night vision for 24 hr surveillance,
•        Support PPPoE/DHCP/Static IP/DDNS/SMTP/FTP/NTP
•        One year manufactory warranty
* USA Get It Faster!!!

* International Order!
PRODUCT DESCRIPTION:
This Wireless pan tilt IP network IR (night vision) camera will keep an eye on your home, business or school while you're
away, allowing you to remotely access its video feed with any standard web browser - anytime, anywhere.

N2805 is a fully-featured surveillance system that connects to an Ethernet or broadband network (wired or
wireless
802.11g) to provide remote high-quality video and audio.

The N2805 Network Security Camera has a pan, tilt, and digital zoom function that can be controlled from the Web
interface. Pan the security camera up to
270° horizontally and tilt it up to 120° vertically. The pan/tilt speed can be
adjusted to your preference. 4x digital zoom lets you remotely zoom in on all the action for close-up viewing.

Two-Way audio feature enable you remotely talk to anyone at your camera site, by adding a powered speaker to the
N2805. (optional speaker not included). SD Card slot allow to record up to 32G (SD Card not included).

Everything needed to get started is included with the N2805 IP Network Camera. Simple installation procedures, along
with the built-in Web-based interface offer easy integration into your network environment. Powerful surveillance
software is included to enhance the monitoring and security management of the N2805. You can record video to your
hard drive, and set up motion detection to trigger automatic recording, or email image. The N2805 IP Network Camera
is a cost-effective and versatile security solution for your home or business.
Technical Specifications:
Camera
  Server Section

Total Pixels
350,000 CMOS Senior
Image Compression
JPEG(Motion JPEG for moving
image display)
Remote Pan Angle
-135°~+135°
Max. Image Resolution
640*480, 320*240, 160*120
Remote Tilt Angle
-60°~+60°
Max. Frame Rate
30ftps(320*240)
Min. Illumination
0Lux
Simultaneous Viewers
4
Preset Locations
4
Network Connection
Ethernet(10M/100M)
Max Pan/Tilt Speed
P:18°/s; T:15°/s
Security
ID, password
Lens Focal Point
Fixed(focal range: 0.5m to ∞)
Wi-Fi
IEEE802.11b/g wireless network
Focal Length
f=4.0mm

Night vision
15 feet
General

    Power Requirements
9V DC
Audio
  Power Consumption
7.5W
Voice Band
300Hz~3.4kHz
Operating Temperature
+14°F ~ +122°F
Audio Input
Built-in microphone
Storage Temperature
-40°F ~ +185°F
Audio Output
One Linear Output
Operating Humidity
0.85
System Requirement
  Dimensions (D x W x H)
104 x 125 x 106 (mm)
Operation System
Windows XP/
2000/2003/Vista
Weight (approx.)
260g
Processor
Intel P3 1GHz or higher
Camera SD Card
(SD card not included)
SD card slot; Maximum: 32GB
(SD2.0 protocol)
Memory
256M (Min)

Web Brower
IE 5.5 or later

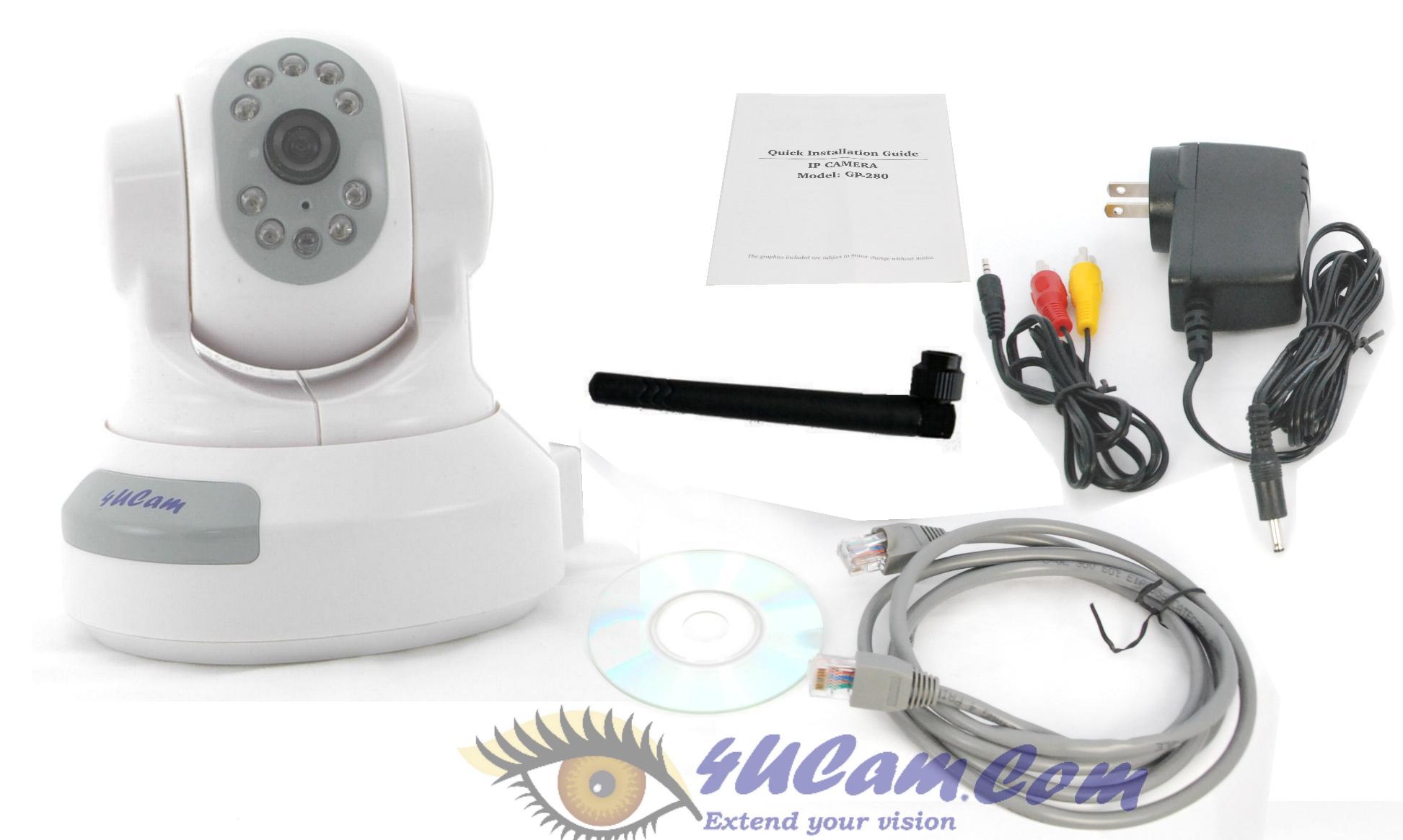

Package contains:
  • One network camera
  • Network Cable
  • Wi-Fi Antenna
  • A/V Cable
  • CDROM
  • User's manual
Diagrammatic:
Wall mount base for camera.
Item#: WallMount
(camera no included)
Now $19.99
Accessories:
Accessories
You can click the links below to have a test drive (interface might vary due version difference). Please note this
system physically located in China, and share by many users. Since system only allow maximum of 10 users, you
might have problem to logon sometime, and the respond time might be slow.  (
User ID: guest Password: guest)
You need to download OCX Setup File Download on the initial connection. Please do not change setting.

Camera One - Office                  Camera Two - Warehouse(off-line temperary)
Test Drive

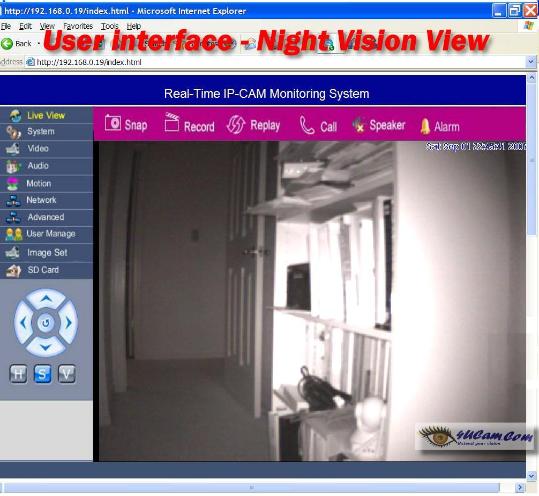

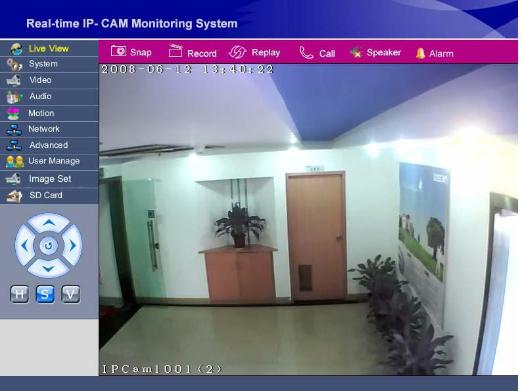

Here is the actual user interface and screen shot of this IP Cam
One Daytime view, one in Total Darkness
Wi-Fi Wireless
Manual download:
GD28XXQuickStartGuide.pdf
GD28XXUserManual.pdf

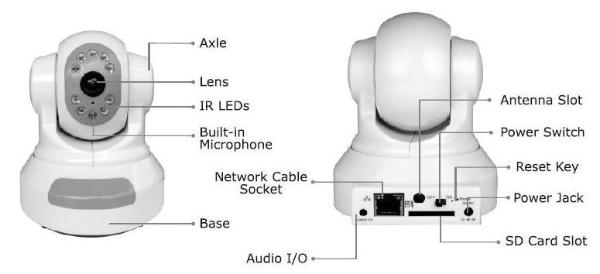

Structure:
Detected the change, alarm is
triggered, picture captured and
email you.
Optional mount base for Ceiling mounting, wall
mounting. (mount base NOT included)
Support SD Card recording (optional SD
Card NOT included)
Item#:1G_SD_Card
$7.99
Item#:2G_SD_Card
$10.99
Item#: Flat_WallMount
(camera no included)
Now $24.99
