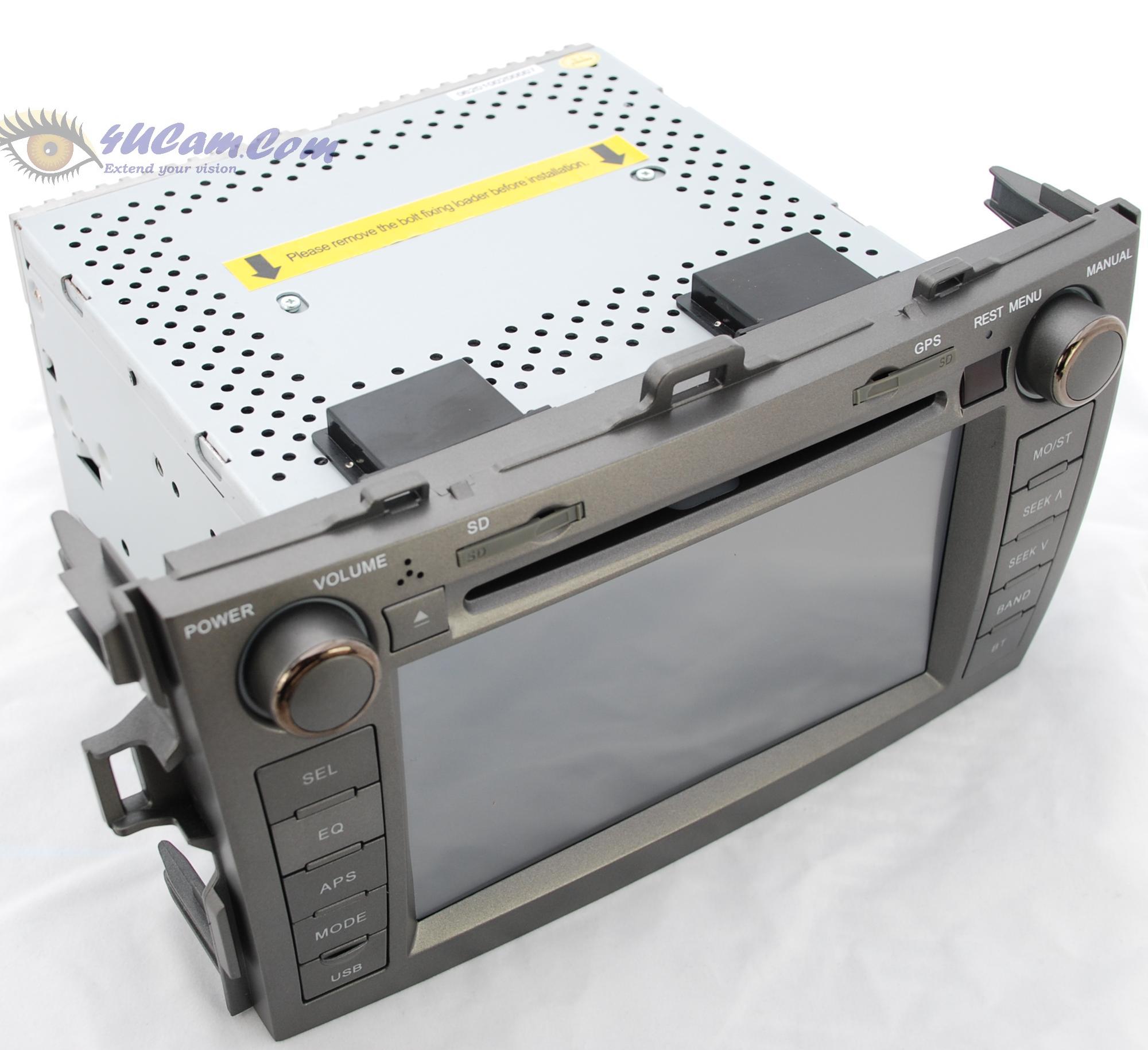

PRODUCT FEATURES:
- Designed for Toyota Corolla 2007-2010 model
- 2 Din in dash DVD navigation system
- High definition 7.0 inch TFT LCD touchscreen of 800 x 480 resolution.
- Preload with details USA/Canada maps (2009.06 version)
POI, 2D, 3D Text-to-speech voice guide (pronounce street name)
- DVD with music player, movie player, photo viewer, eBook reader intergrated
- Support OEM steering wheel control
- Accept external ipod and external steer-wheel-control
- Handfree Bluetooth function
- Phone calls are transferred to car speaker
- Talk directly to built in microphone
- Built-in AM/FM Stereo Receiver
- Analog TV basic channels broadcasting
- Powerful Electronic Anti-shock
- Accept external AV device input
- Support MP4, DIVX, DVD, DVD-R/RW, DVD+R/RW, VCD, MP3, WMA, JPEG, etc
- Full function remote control
- Auto switching backup camera (camera is not included)
|
|
|
|

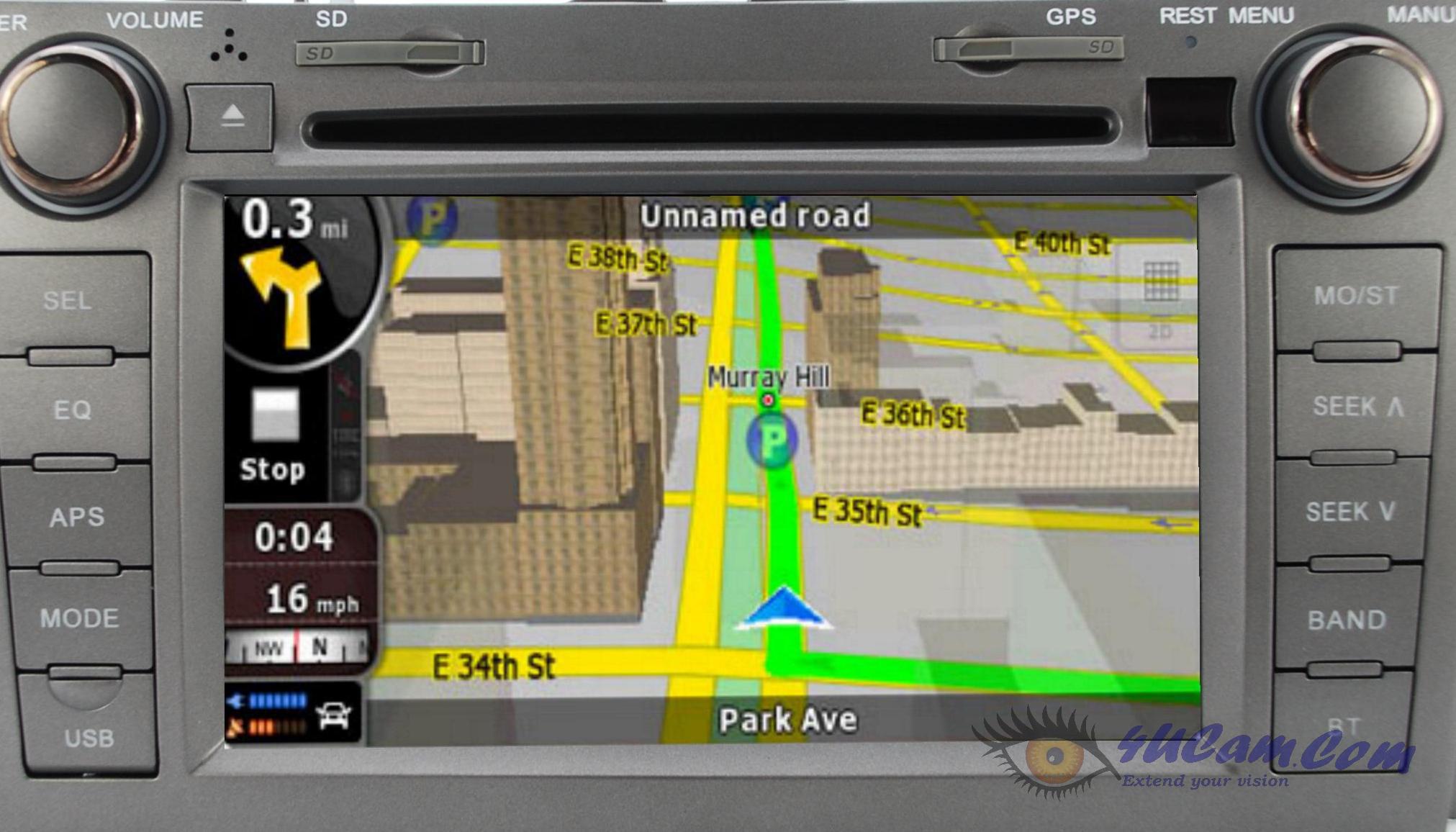

GPS Mode
|

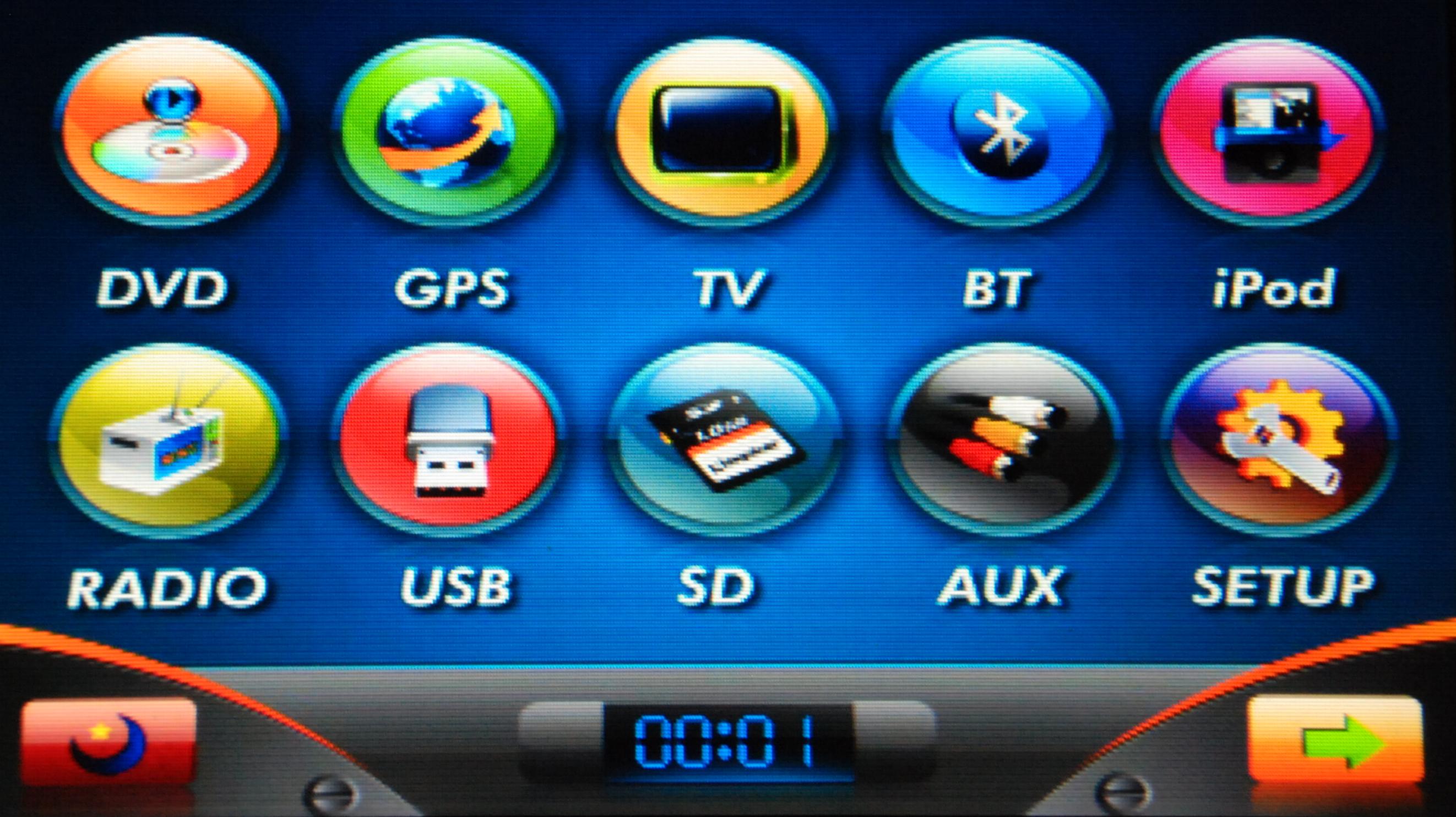

Main Menu
|

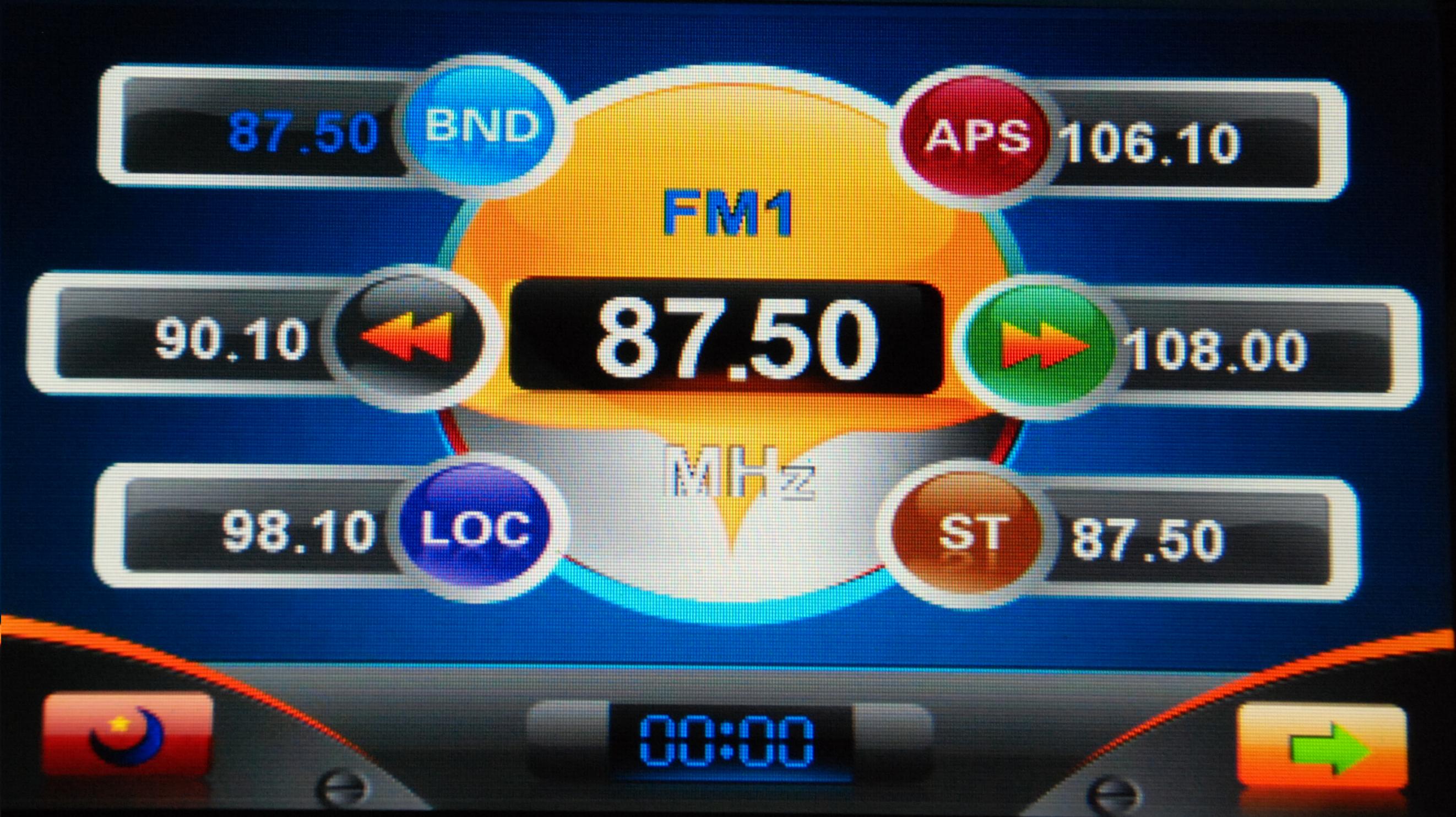

FM
|
|
|
|
|
iPod Mode
|

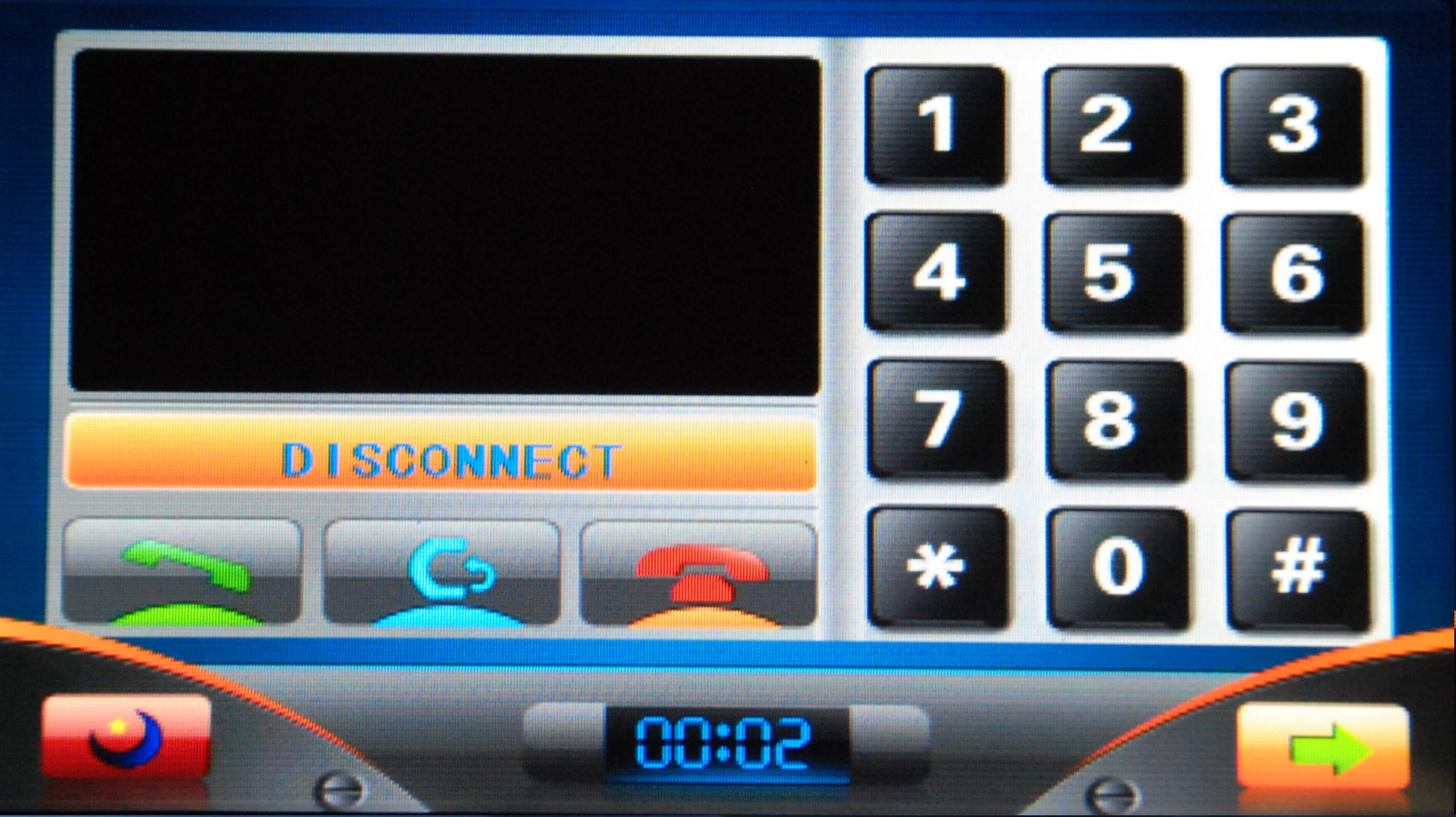

Blue-tooth
|

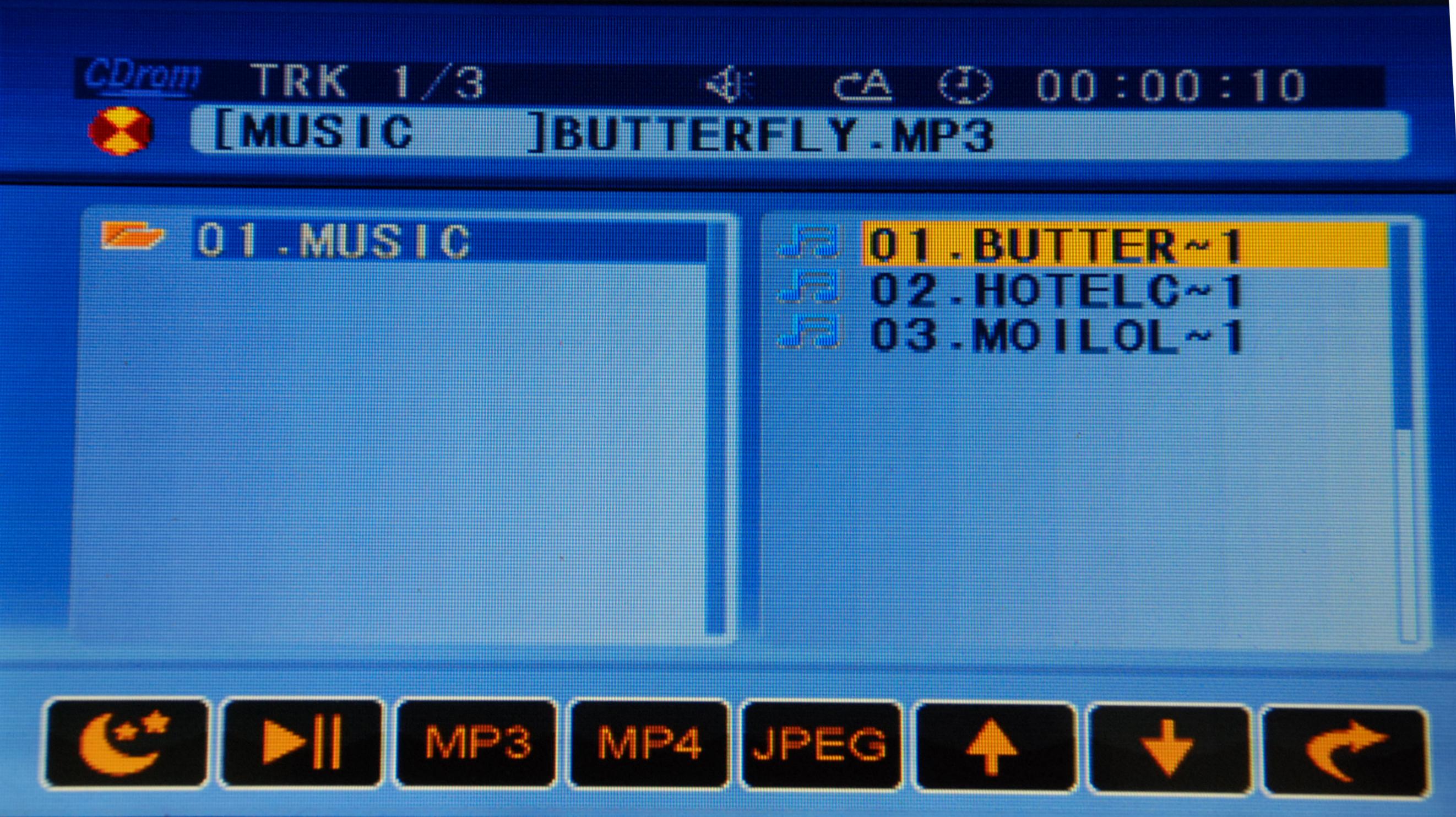

Music
|
|
|
|
|

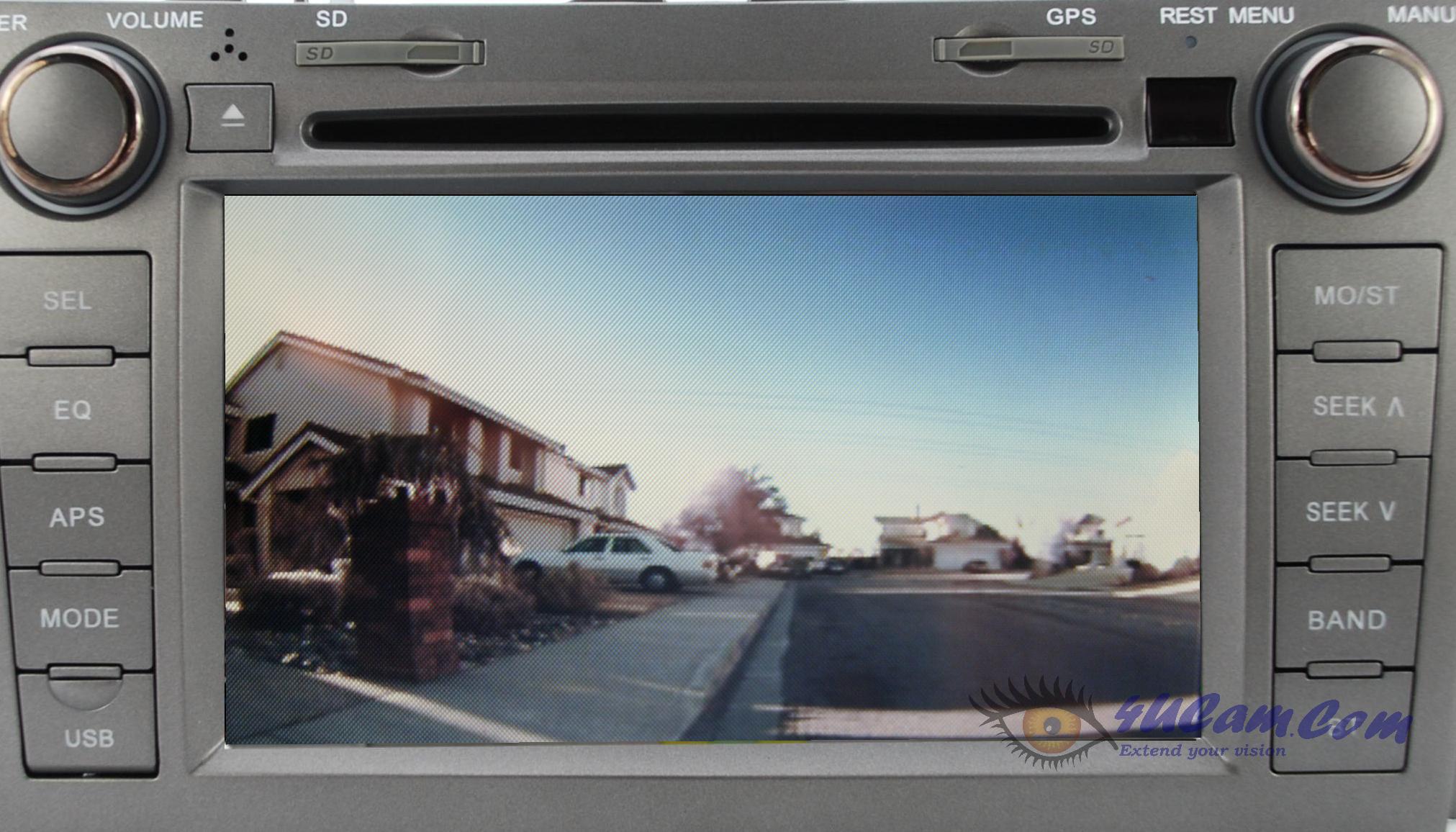

Backup camera Day time view
|

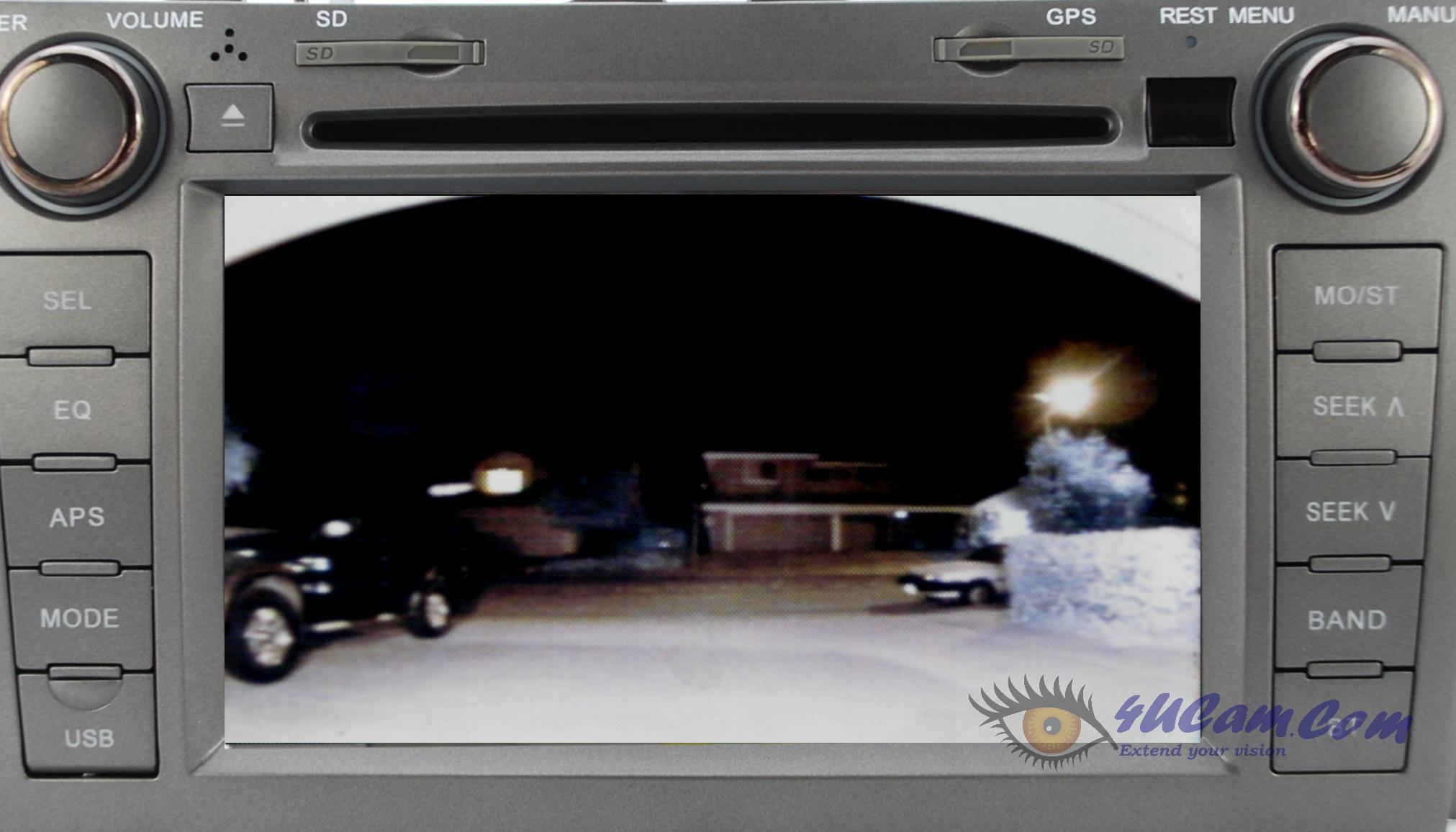

Backup camera Night time view
|
Video
|
|
(Backup camera is optional)
PRODUCT SPECIFICATIONS:
System Parameter
Main frequency: 400 MHZ
Main CMOC chip; SUMSUNG S3C2440A-40
Memory: 64 MB
Storage: 64 MB
Operation system: WINCE 5.0 CORE
Software translate and edit type: ARMV4
GPS Hard Parameter
CMOS chip group: Sirf Star III
Frequency: 1.575GHZ
C/A CODE: 1.023 MHZ
Channel number: 20 Channels
Tracking sensitive: -159 dBm
Orientation precision: 10m, 2D RMS 5m, 2D RMS
Data updated frequency: 0.1m/s
Velocity: 1 HZ
Main Function
Work voltage: DC 12V
Work voltage range: 10.8V – 16V
MAX work current: 10A
Build-in angle: Front & back angle ≤30°
DVD/CD Player
Support file formats: DVD-R, DVD-RW, DVD+R, CD-R, CD-RW, CD-DA, MP3, WMA, HDCD, SVCD,
VCD, MPGE, JPEG
Audio S/N: 85dBA
Act bond: 95Db
Frequency range: 20 Hz – 20 kHz
Digital audiio sample: 24 bit
ESP: DVD 2-3 s
CD-DA 10s
MP3 100s
WMA 200s
MSP: 10 – 200Hz, X/Y/Z: 1.0G
Power output: 50W x 4 Impedance: 4Ω
S/N ratio: 70 dBu
Frequency range: 20 Hz -20 kHz
Video
System: NTSC, PAL (Auto identify)
Output: 1Vp-p (75Ω)
Input: 1Vp-p (75Ω)
FM
Frequency: 87.5 MHz – 108.0 MHz
Sensitivity (-30 dB): 15 dB
S/N ration (-50 dB): 60 dB
Frequency range: 30Hz – 15kHz (3dB)
AM
Frequency: 522 kHz – 1620 kHz
Sensitivity (SN=20 dB): 20 dBu
Image rejection: 60 dB
Frequency range: 50Hz – 2kHz
GPS MAP SOFTWARE:
Most update USA/Canada details maps (2009.06 version)
2D maps and 3D building maps (buildings data is limited to the city centre of major cities)
Text-to-Speech and turn-by-ture voice guide
All-in-one cockpit screen show all the traffic information, including your speed, name of current/next
street, distance/time left to the destination, estimated arriving time, distance left to the next turn,
lane information, road information, POI information and so on.
SMART ZOOM will automatically adjust zoom in or out and viewing angle to give you the optimal view
in any situation.
Quick setting icon for 2D/3D maps switch, detour, cursor, day/night mode switch, volume adjustment,
3D building on/off, vehicle select, track logs record ect
Automatic and instant route re-calculation when a wrong turn is made
Multi-destination of a route available
Millions of POIs(Point of Interest) with phone number, including gas stations, parking, restaurants,
ATMs, hospital and more.
6 vehicle modes(car, taxi, bus, emergency, pedestrian, bicycle)
Speed alarm
Day & night mode display
Multi languages support
See GPS+backup cam demo
|
GPS software demo
|
GPS software menu 3X fast overview
|
|
|
|
|
|
Package Contains:
2-Din DVD/GPS unit

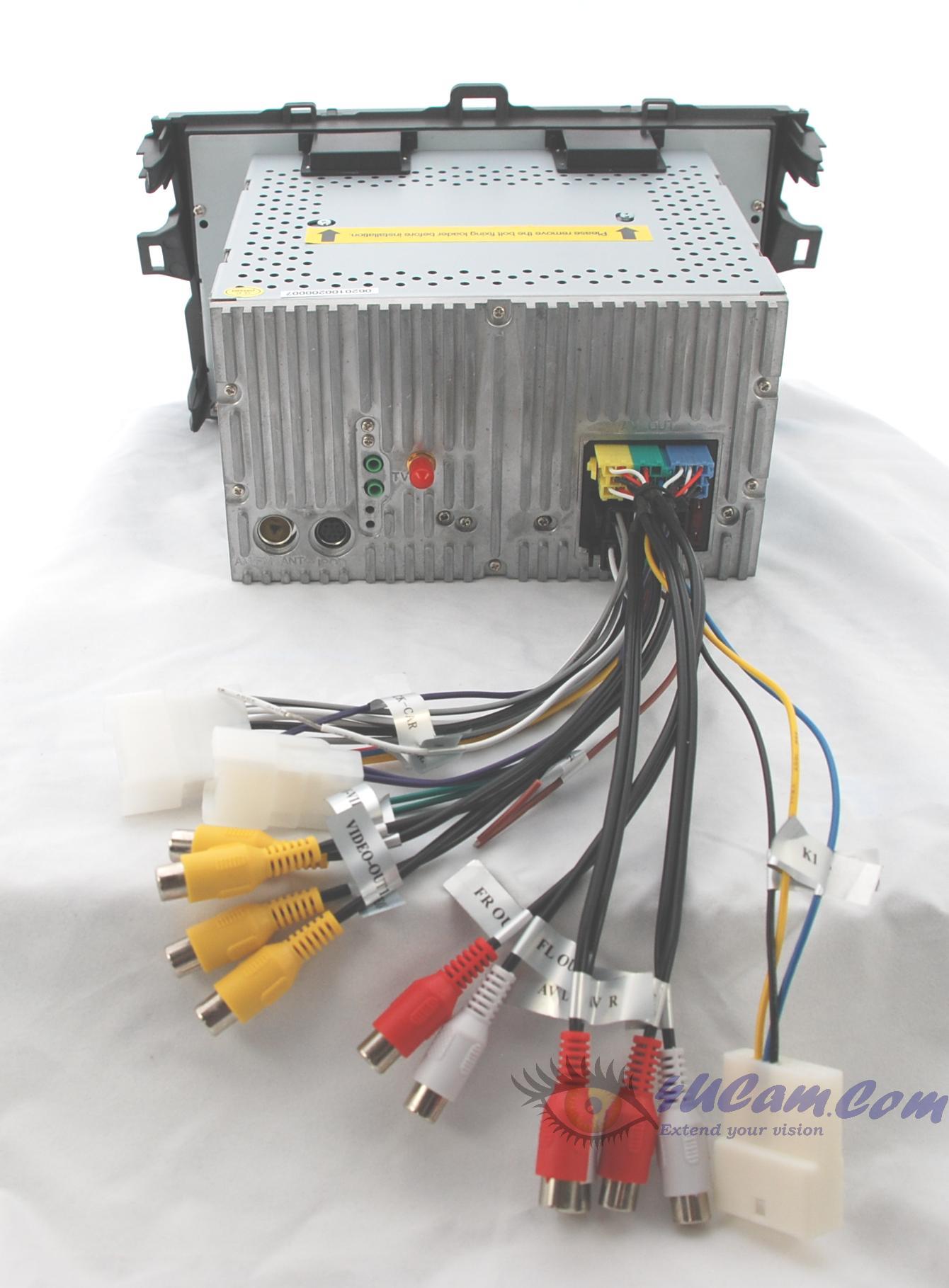

Cables
External antenna
Antenna base
Remote control
2GB SD card (maps preload)
User Manual
Optional Wired and Wireless Camera, accessories and more:
Round IR Cam+accessories
Item#:8907T
Listed $129.99
Now $69.95
License IR Cam
Item#:8909T
Listed $129.99
Now $64.95
Backup light IR Cam+accessoires
Item#:8908T
Listed $129.99
Now $69.95
CCD Cam + Accessories
Specification:
Item#:9901T
Listed $199.99
Now $139.95
GPS External Antenna - Low noise signal amplification, Magnetic base, water resistan
Specification
7 feet: $12.95 10 feet: $18.95 17 feet: $24.95
Wireless Round Backup Camera
and Receiver for GPS System
Item#: 8907B
Listed Price: $159.99
Now $114.95
Wireless backup camera w/ reciever
set for Toyota 2-din GPS system. Click picture below for more detail on the camera system.
|
Wireless Color Car Backup Camera
and Receiver for GPS System
Item#: 8909B
Listed Price: $139.99
Now $99.95
8 LED IR wired license
Cam + 15ft cable
Item#:HTN08
Listed $99.99
Now $70.00
NON-IR wired mini
Cam + 15 ft cable
Item#:HTN05
Listed $89.99
Now $50.00
Wired backup camera
set for Toyota 2-din GPS system
|
Click picture for detail
Click picture for detail
